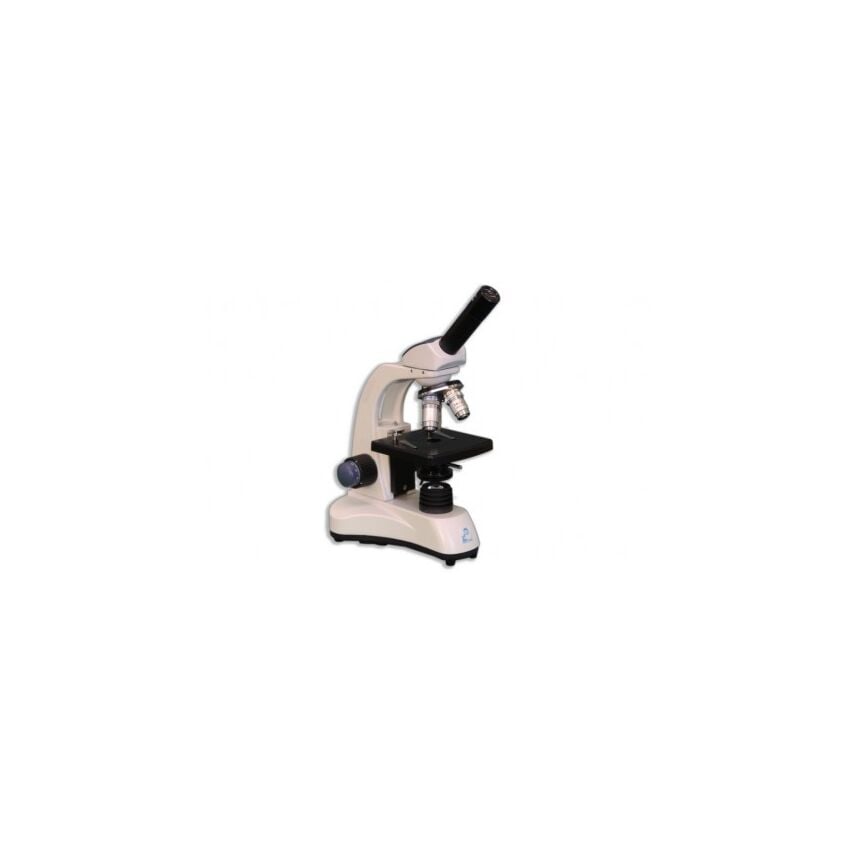

MT-10 LED Monocular Achromat 40X-400X Student Compound Microscope
SKU:
MT-10
In stock
You pay: $420.00
Free Shipping,
30 Day Money Back Guarantee
- Achromatic 4X, 10X, S40X Objectives
- LED variable intensity illumination
- Forward-facing ball-bearing nosepiece
- ABBE 1.25 NA condenser with iris diaphragm
- Ergonomic design for ease of use
- Recommended for academic use
New Student Microscope
Summary
The new Meiji MT-10 brings a fresh, clean design to the biology and life sciences student classroom. These easy-to-use, competitively-priced microscopes feature Meiji optical quality and cool, crisp LED illumination to help you maximize your student's learning experience.Optics
The MT-10 features a monocular head with the ocular inclined at a comfortable 45°. The DIN 10X WF eyepiece includes a pointer for easy reference and correlation. The optical system includes 3 Achromatic objectives (4X, 10X, S40X) set in a forward-facing ball-bearing-mounted nosepiece for ease of operation.Stage & Focus
The ceramic coated, right-handed flat top stage measures 123mm x 119mm with two stage clips and coaxial coarse-fine focus knobs with friction adjustment and graduations to 2-micron precision.Condenser & Illumination
An Abbe 1.25 NA Condenser with height adjustment is included, along with 1W LED variable-intensity illumination.Accessories
Manual, AC adapter, dust cover. 2-Year Warranty.| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
| System Type | Brightfield |
| Optical Design | DIN 160mm |
| Head Type | Monocular |
| Head Rotation | 360 Degrees |
| Ocular Angle | 45° |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| View Orientation | Upright View |
| Ocular Tube Diameter | 23 mm |
| Nosepiece Orientation | Front-facing |
| Nosepiece Style | Triple (3) |
| Focus Controls | Coarse & Fine |
| Focus Mechanism | Rack & Pinion |
| Focus Control Location | Dual Ambidextrous |
| Focus Controls Graduated? | No |
| Stage Type | Fixed |
| Stage Features | Slide Clips |
| Stage Dimensions | 123mm X 119mm |
| Stage Range Graduated? | No |
| Includes Eyepieces? | Yes |
| Included Eyepiece Quantity | 1 |
| Included Eyepieces (X) | 10X |
| Eyepiece Style | WF Widefield (FN 18mm) |
| Includes Eyecups? | Yes |
| Min Standard Mag | 40X |
| Max Standard Mag | 1000X |
| Included Objectives (Qty) | 4 |
| Objective Lens | Semi-Plan |
| Included Objective Types | Brightfield |
| Included Objectives Parfocal Adjustable? | No |
| Objective 1 Description | 4X / 0.13 |
| Objective 2 Description | 10X / 0.25 |
| Objective 3 Description | 40X / 0.65 |
| Condenser Type | Abbe Brightfield |
| Condenser Features | Achromatic |
| Condenser N.A. | 1.25 mm |
| Illumination Type | LED |
| Illumination Style | Transmitted |
| Collector Type | Simple |
| Transmitted Light Type | LED |
| Transmitted Light Control | Variable |
| Power Supply | Universal Switching 100V-240V AC |
| Imaging Compatibility (with adapters) | 23mm |
| Reticles Available? | No |
| Included Extras | Dust Cover |
| Case Included? | No |
