Meiji Techno EMT-1-P Stereo Microscope System

List Price: $1,170.00

Starting at: $1,055.00

SKU: EMT1-P

Availability: In stock

  • 1x/2x dual power stereo microscope
  • Plain stand
  • Binocular
  • 81mm working distance
  • Lifetime Limited Warranty
Select package options

Click on to learn more about the option * signifies required items

EMT-1 1x/2x Dual-Power Stereo Microscope Body   $525.00
P Pole Stand   $380.00
  • $88.00
  • $129.00
  • $60.00
  • $129.00
  • $139.00

Included in Bundle

Microscope: EMT-1 1x/2x Dual-Power Stereo Microscope Body

stand: P Pole Stand

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

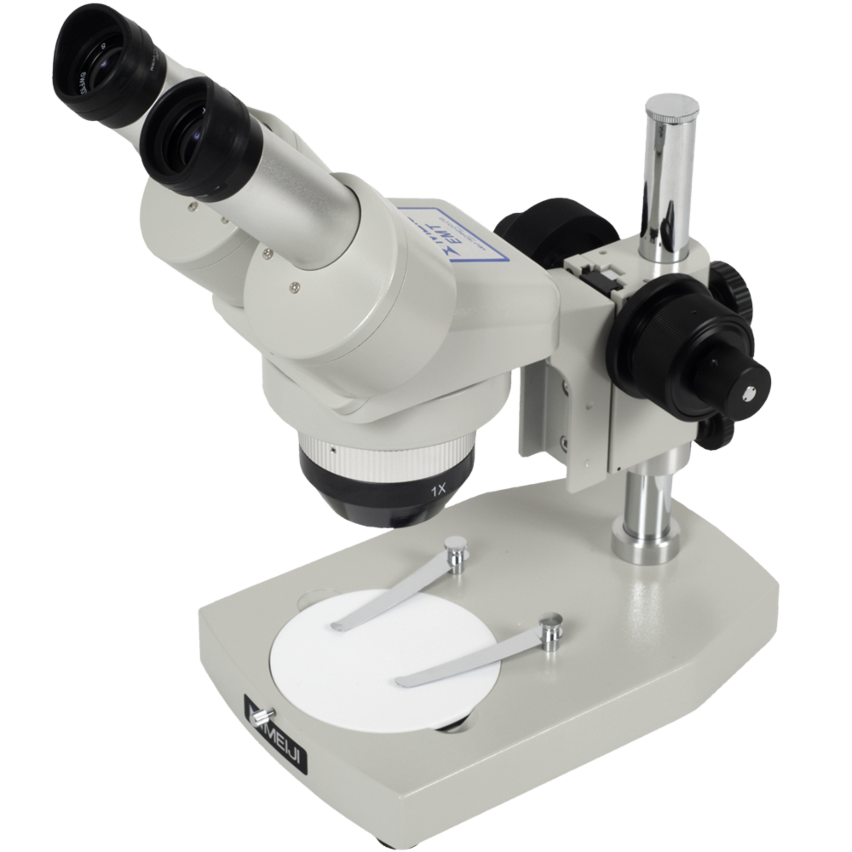

  • Meiji EMT-1-P Stereo Microscope System
  • Side view - Meiji EMT-1-P Stereo Microscope System
  • Front view - Meiji EMT-1-P Stereo Microscope System
  • Meiji EMT-1-P Stereo Microscope System Stand
  • Meiji EMT-1-P Stereo Microscope System P Stand
  • Meiji EMT-1-P Stereo Microscope System stage
Description

Summary

The EMT-1-P is Meiji's EMT-2 dual-power 1x/2x stereo microscope body with the affordable P plain stand without illumination. Lifetime Limited Warranty.

Microscope Head

The microscope body has 1x and 2x objectives, rotates 360º for convenient viewing options, and has a maximum working distance of 81 mm without an auxiliary Barlow lens. Depending on your choice of eyepieces (5x, 10x, 12.5x, 15x, 20x, or 30x), you can achieve magnification settings ranging from 5x-60x, without the corresponding cost of a zoom microscope.

The EMT1-P’s left eyetube has dioptric adjustment for convenient focusing of both eyes, and the eyepieces have an interpupillary adjustment range of 54-75 mm to adjust comfortably to the distance between your eyes. Binocular only.

Stand

The affordable 20mm diameter P pole stand comes with an F-size focus block mounted to a metal base. The focusing block features dual coarse focus knobs, rack and pinion gearing, a safety clutch with tension adjustment and 55mm of travel. Twin mounting clips position and secure specimens on a 94.5mm reversible black and white stage plate.

Illumination

Since the stand does not have integrated illumination we offer a selection of shadow-free, ring lights when adding to cart.
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • EMT-1 1x/2x Dual-Power Stereo Microscope Body
    SKU EMT1
    Head
    Head Type Binocular
    Optical Design Greenough Converged
    Magnification Type Dual Power
    Ocular Angle 45°
    Ocular Tube Diameter 30.5 mm
    Diopter Adjustment Single
    Interpupillary Adjustment Arc (Seidentopf)
    Interpupillary Adjustment Range 54mm - 75mm
    Head Rotation 360 Degrees
    Minimum Objective (X) 1
    Maximum Objective (X) 2
    Parfocal Yes
    Body
    Body Material All-Metal
    Head Ring Mount Diameter 84 mm
    Max Working Distance (standard) 108 mm

  • P Pole Stand
    SKU P
    Stand
    Stand Class Pedestal
    Stand Type Pole
    Stage Plate Black/White Contrast Plate
    Post Diameter 20 mm
    If FB Mounts Direct
    Focus Block Mount Diameter 20 mm
    If FB Integrated
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Compatibility
    Head Ring Mount Diameter 84 mm

  • MA502 - 10X Super Widefield Paired Eyepieces

    MA718 - 7.5X Super Widefield Paired Eyepieces

    MA520 - 12.5x Super Widefield Paired Eyepieces

    MA503 - 15X Super Widefield Paired Eyepieces

    MA504 - 20X Super Widefield Paired Eyepieces

    MA521 - 30X Super Widefield Paired Eyepieces
    SKU MA502MA718MA520MA503MA504MA521
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes 30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY
    Compatible With EM*EM*EM*EM*EM*EM*
    Eyepiece Magnification 10x7.5x12.5x15x20x30x

  • 64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section

    MA553 Ring Light Adapter (Req'd for all Ring Lights)
    SKU OMLED-64AOMLED-144AMA553
    Notes  60mm OD
    Compatibility
    Compatible With  EMT-2*, EMT-1*, EMF-1, EMF-2
    Illumination Type LEDLED
    Light Specs
    Ring Light Type LEDLED
    Ring Light Specification 90-265V Auto switching90-265V Auto switching
    Ring Light Control VariableVariable

  • MA527 Barlow Lens 0.75X WD 72mm

    MA513 Barlow Lens 1.5X
    SKU MA527MA513
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes MA515 required to attach to EMT-1, EMT-2 and variants.MA515 required to attach to EMT-1, EMT-2 and variants.
    Compatibility
    Compatible With EMT-3*, EMT-4*, MA515EMT-3*, EMT-4*, MA515
    Optical Accessory
    Barlow Lens Power 0.75X1.5X
Product Manuals
  • Meiji EMF/EMT/EMX Series Stereo Microscope Manual: Download PDF [817k]
