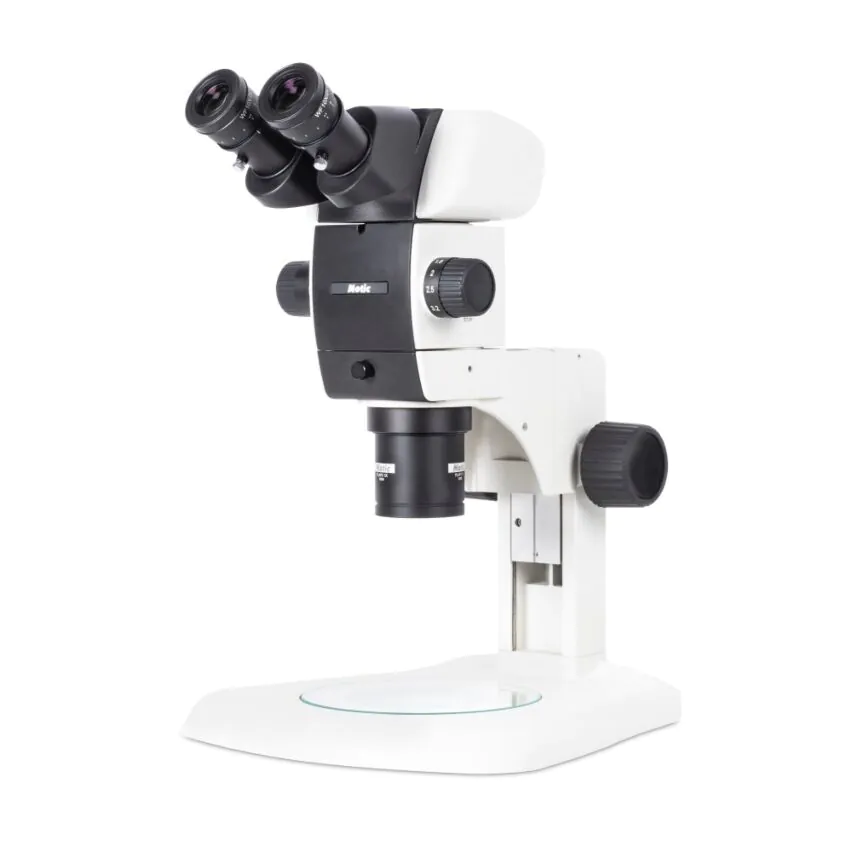

Motic SM7-P APO1X Binocular Microscope with Apochromatic Objective, No Illumination
- Advanced Optical Performance: Features a Plan Apochromat 1X objective for true color reproduction, high resolution, and minimal distortion.
- Optimized for Opaque Samples: Includes a stable plain stand designed specifically for viewing non-transparent materials and industrial components.
- Precision Galilean Optics: Utilizing a Galilean optical system, it provides superior spatial information and clarity for biological, medical, and quality control applications.
- Flexible Working Distance: Offers an 81mm working distance and a binocular head, allowing for comfortable operation and the easy integration of external light sources.
Motic SM7-P APO1X Galilean Stereomicroscope
Advanced Common Main Objective (CMO) System for True Color Reproduction
Unrivaled Resolution for Opaque Sample Analysis
The Motic SM7-P APO1X represents the pinnacle of Motic’s new Galilean stereomicroscope line. Engineered for users in biology, medicine, and industrial quality control, this system utilizes a Common Main Objective (CMO) infinity optical design to deliver exceptional spatial information and high-resolution imaging with minimal distortion.
Specifically configured for opaque samples, the SM7-P features a robust plain stand (Fixed-arm) and is optimized for use with external illumination sources, ensuring flexibility for diverse laboratory and manufacturing environments.
Key Technical Advantages
- Plan Apochromat 1X Objective: Provides superior color correction and flatness of field across the entire 81mm working distance.
- Galilean Infinity Optical System: A high-end optical path that allows for modular expansion and professional-grade imaging.
- High Zoom Ratio: A 7:1 zoom range (0.8X to 5.6X) with 10-step click stops for precise magnification reproducibility.
- Ergonomic Viewing: 30º inclined binocular head with dual diopter adjustments to minimize eye strain during long inspection sessions.
- Rugged Large Base: A massive 310x290mm base providing an extremely stable platform for large specimens.
Technical Specifications
| Feature | Details |
|---|---|
| Optical System | Galilean Infinity Optical Design (CMO) |
| Zoom Ratio | 7:1 (Range: 0.8X ~ 5.6X with 10-step stops) |
| Head Type | Binocular, 30º inclined, 360º rotatable |
| Eyepieces | Widefield WF10X/22mm (Dual diopter adjustment +5/-8) |
| Working Distance | 81mm |
| Focusing | Coarse system with tension adjustment; 120mm stroke |
| Stand Type | Fixed-arm plain stand with 160mm B/W stage plate |
| Dimensions | 367 x 290 x 372 mm; Weight: 7kg |
Versatile Contrast & Applications
While the standard configuration is optimized for Brightfield observation of opaque materials, the SM7 series is a versatile highlight for:
- Industrial Quality Control: PCB inspection, metallurgy, and small parts assembly.
- Medical Research: Detailed dissection and biological specimen analysis.
- Life Sciences: True-color reproduction for accurate sample documentation.
Precision Imaging Starts Here
Experience the difference of Plan Apochromat optics in your workflow.
Would you like a quote on external LED ring lights or fiber optic illuminators to pair with this system?
| Brand | Motic |
|---|---|
| Recommended For | 0 |
| Optical Design | Greenough Converged |
| Trinocular Tube Focusable? | No |
| Zoom Indicator Graduations | No |
| Parfocal | No |
| Includes Eyepieces? | No |
| Includes Barlow? | No |
| Includes Eyecups? | No |
| Reticles Available? | No |
| Case Included? | No |
