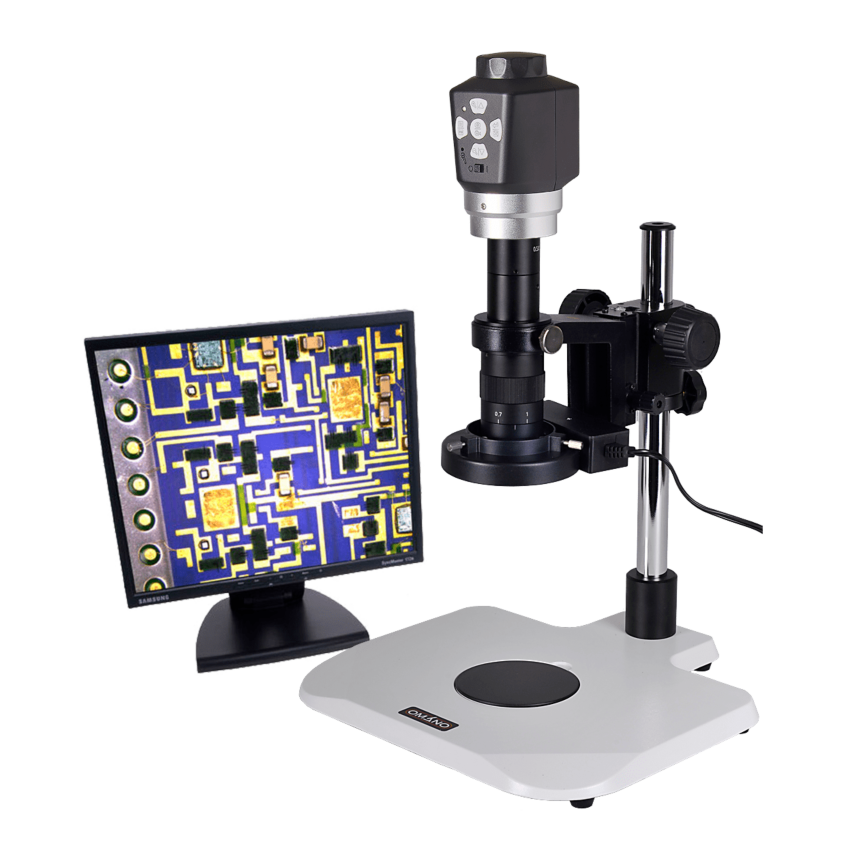

Omano HDMI-1-V3 1080P 3.0 MP PC-only Video Inspection System

List Price: $1,135.00

Starting at: $727.00

SKU: HDMI-1-V3

Availability: In stock

  • High definition 1080P HDMI or 3.0 MP USB output (Windows only)
  • Streaming 1080P HDMI output direct to monitor or TV
  • HDMI video capture resolution of 1280 x 720P @ 30 fps
  • Auto white balance for color accuracy
  • Optional Micro-SD card output (card sold separately)
  • 80 LED ring light or optional upgrades
  • V3 platform stand
Select package options

Click on to learn more about the option * signifies required items

OCS-HDMI-1 1080P 3.0 MP PC-Only 30 FPS Digital Microscope Camera   $299.00
OM10K Zoom Microscope Lens   $219.00
V3 Pole Stand   $130.00
  • $75.00
  • $75.00
  • $75.00
  • $75.00
  • $39.00
  • $59.00

Included in Bundle

Camera: OCS-HDMI-1 1080P 3.0 MP PC-Only 30 FPS Digital Microscope Camera

Microscope: OM10K Zoom Microscope Lens

Stand: V3 Pole Stand

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

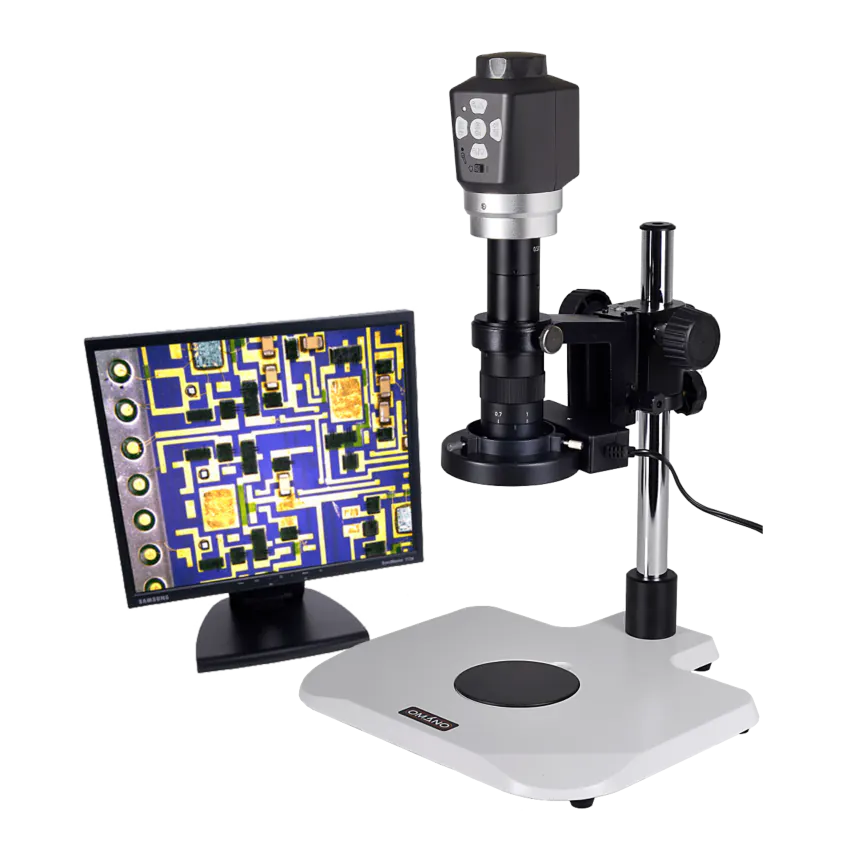

  • OCS-HDMI-1-V3 Video Inspection System
  • OCS-HDMI-1-V3 Video Inspection System 2
  • OCS-HDMI-1-V3 Video Inspection System 3
  • OCS-HDMI-1-V3 Video Inspection System 4
  • Omano OM10K Microscope
  • OCS-HDMI sample pcb
Description

Summary

The new OCS-HDMI1 high-definition CMOS color microscope camera is a professionally-designed, imaging solution offering sharp, 3.0MP USB image capture or 1280 x 720P HDMI video @ 30Fps in a cost-effective package. The camera offers the option of direct streaming to an HDMI monitor without the complexity of computer software, making it an ideal imaging solution for fast-paced industrial environments and technical training classrooms.

Features

HDMI (High-Definition Multimedia Interface) technology brings a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The OCS-HDMI1 offers this technology in an affordable and versatile package for the PCB auditor, industrial inspection line or clinical teaching laboratory.

Mounting & Controls

The OCS-HDMI1 is specifically designed to enhance the Omano line of stereo inspection systems, with a standard C-mount interface which will accept any C-mount adapter. Improved functionality includes on-camera controls with intuitive, menu-driven buttons for power, pan up and down, zoom in and out, image save or video record (to optional SD card), and Auto White Balance on/off. In addition, a large focus knob at the top of the camera offers fine image focus adjustment. A 0.37X reducing adapter (not included) is required to mate the camera with any Omano 23mm smooth bore microscope eyeport or trinocular tube.

Processing & Output

The camera has fast white balance correction, excellent color reproduction and USB Image capture resolution of 3.0 MP, or HDMI video capture resolution of 1280 x 720P @ 30 fps. The OCS-HDMI1 quickly reacts to changing lighting conditions in any life science, clinical or material application, sending a sharp video output to an HDMI monitor. A Micro-SD card memory slot offers additional output options and storage capacity (SD card not included).

Microscope

The Omano OM10K zoom microscope provides 7x-45x zoom range with coarse/fine focus and click stops that enable the operator to dial in the exact same level of magnification for different specimens for easy comparison. Each microscope includes a 0.5x Barlow lens which enables maximum working distance of 6.75". An 80 LED ring light is included. Optional illumination upgrades include dual pipe LED or 64 and 144 LED ring illumination systems.

Stand

The Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your worktop. A safety collar and black/white contrast plate is also included.

Camera Accessories

Accessories include power supply, remote control, HDMI cable.

Microscope Accessories

Included 80 LED fluorescent ring light.

Please note: Monitor not included.

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • OCS-HDMI-1 1080P 3.0 MP PC-Only 30 FPS Digital Microscope Camera
    SKU OCS-HDMI-1
    Warranty 1 Year
    Product Weight 2.0000
    Sensor
    Sensor Type CMOS
    Sensor Size 1/3 Inch
    Sensor Details Aptina AR0330 CMOS Sensor
    Color/Monochrome Color
    Pixel Pitch 2.2um x 2.2um
    Scan Mode Progressive
    Signal to Noise Ratio 39 dB
    Sensitivity 1.4v/lux-sec(550nm)
    Dynamic Range 69.5 dB
    A/D Conversion 12-bit Parallel, 8-bit R.G.B
    Shutter Electronic, Rolling Shutter
    Camera
    Camera Mount C-Mount
    Resolution 2.0 megapixels
    Camera Output Resolutions 1920X1080i60,1920X1080P30,1280x720P60,640x480P60
    FPS @ Max Res 30 Fps
    FPS @ Min Res 60 FPS
    Camera Interface SD Card, USB 2.0, HDMI
    White Balance Automatic, Manual
    Driver API Compatibility DirectX
    Power Source External Power Supply
    File Formats JPEG, MOV
    Exposure Control Automatic, Manual
    Exposure Time 0.21~33ms, Auto & Manual
    Operating Temperatures 0℃~ 40℃
    Operating Humidity 30~80%RH
    Storage Temperature -20℃~ 60℃
    Supported Operating Systems N/A, Windows 10, Windows 8, Windows 7
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended
    Certifications CE
    Cable Length 2.5m (8ft)
    Software Support 6 Months
    Compatibility
    Imaging Compatibility (with adapters) C-Mount

  • OM10K Zoom Microscope Lens
    SKU OM10K
    Head
    Head Type Digital Only
    Magnification Type Zoom
    Ocular Angle Vertical
    Trinocular Standard C-mount
    Trinocular Tube Focusable? Yes
    Head Rotation 360 Degrees
    Minimum Objective (X) 0.7
    Maximum Objective (X) 4.5
    Zoom Ratio 6.4:1
    Zoom Control Type Detent Click-Stops
    Zoom Indicator Graduations Yes
    Parfocal Yes
    Includes Barlow? Yes
    Included Barlow (X) 0.5X
    Eyecups Style Soft Rubber
    Body
    Body Material All-Metal
    Compatibility
    Imaging Compatibility (with adapters) C-Mount
    Head Ring Mount Diameter 50 mm
    Max Working Distance (standard) 55mm
    WD with 0.5x Barlow 90mm
    WD with 2.0x Barlow 30 mm

  • V3 Pole Stand
    SKU V3t
    Stand
    Stand Class Pedestal
    Stand Type Pole
    Stand Features Beveled Base
    Stage Plate Black/White Contrast Plate
    Base Width 318 mm
    Base Depth 305 mm
    Post Height 345 mm
    Post Diameter 25 mm
    If FB Mounts Direct
    Focus Block Mount Diameter 25 mm

  • 80 LED Ring Light, Variable Intensity

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section

    OMLED-DP6W LED Dual Gooseneck Pole Mount Light

    120 LED Diffused Dome Ring Light - ESD SAFE
    SKU OMLED-80AOMLED-64AOMLED-144AOMLED-DP6WOMLED-6WDRL
    Warranty 1 year  1 year
    Product Weight 1lb  4.0 lbs
    Product Length  31.0 cm
    Product Width  29.0 cm
    Product Height  17.5 cm
    Product Display
    New  Yes
    Illumination Type LEDLEDLEDLEDLED
    Light Specs
    Ring Light Type LEDLEDLEDLEDLED
    Ring Light Specification 80 LED90-265V Auto switching90-265V Auto switching3W x 290-265V Auto switching
    Ring Light Power 8W  6W
    Ring Light Control VariableVariableVariableVariableVariable

  • 0.3X Barlow Lens For Omano OM10

    0.5X Barlow Lens For Omano OM10

    1.0X Barlow Lens For Omano OM10

    2.0X Barlow Lens For Omano OM10
    SKU OMBL-10-03X-25OMBL-10-05X-25OMBL-10-10X-25OMBL-10-20X-25
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes New Type, compact Barlow designNew Type, compact Barlow designNew Type, compact Barlow designNew Type, compact Barlow design
    Backorder ETA Apr 30, 2015  Dec 29, 2015
    Compatible With OM10OM10OM10OM10
    Optical Accessory
    Barlow Lens Power 0.3X0.5X1.0X

  • Fixed 23mm Camera Adapter 0.37X for SK2 Series Cameras

    Adjustable 23mm Camera Adapter 0.37X for SK2 Series Cameras
    SKU OCS-SK2-CA037X-23MMFOCS-SK2-CA037X-23MMA
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Backorder ETA  Nov 30, 2016
