Meiji Techno EMZ-10B Binocular Zoom Microsurgical Head

List Price: $1,450.00

Our Price: $1,325.00

SKU: EMZ-10B

Availability: In stock

  • Generous 250mm working distance with included Barlow lens
  • Binocular or trinocular format available
  • Lifetime Limited Warranty

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji Techno EMZ-5 Stereo Head
  • Top-Meiji Techno EMZ-5 Stereo Head
  • Objective Lens-Meiji Techno EMZ-5 Stereo Head
Description

Summary

The Meiji EMZ-250 zoom stereo micro-surgical system is ideally suited for the demanding requirements of a microsurgery teaching classroom. The compact optical unit delivers clear, focused images and the generous 200mm working distance gives the student physician optimum maneuverability for practicing delicate surgical techniques. The ergonomic PKL-1 stand provides 5W LED incident illumination and a stable and secure observation platform. Limited Lifetime Warranty.

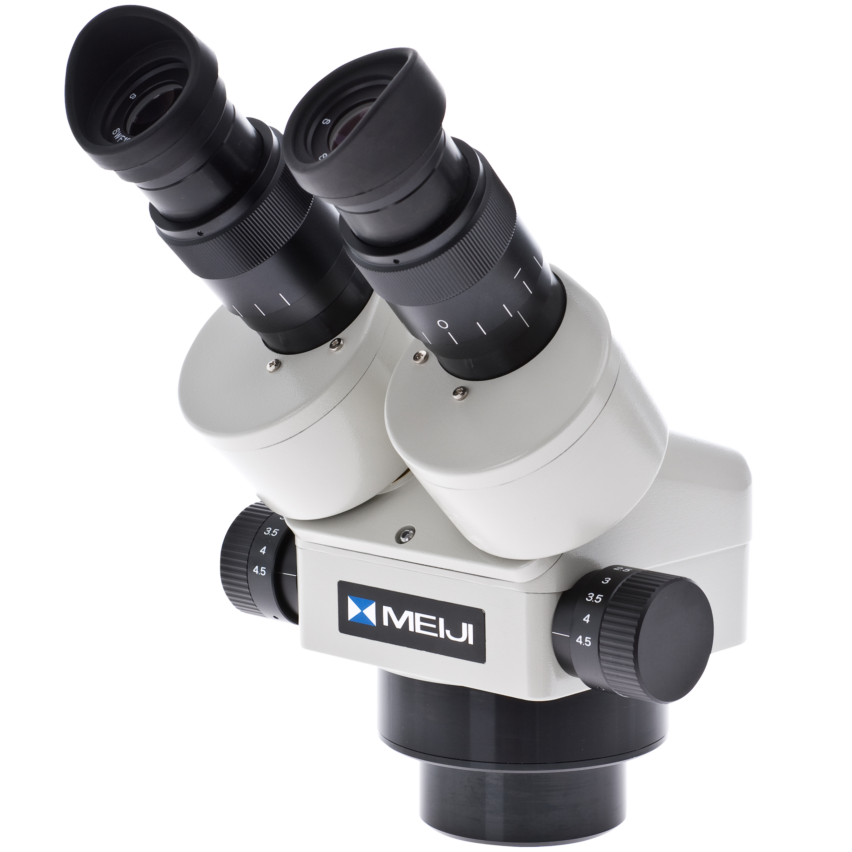

Microscope Head

The EMZ-250 head is based on the EMZ-5, easily the most popular Meiji stereo microscope head. This workhorse model builds on that reputation while offering great quality and an affordable purchase point. The parfocal zoom range is 3.5X - 22.5X with dual-sided zoom controls and a field of view range of 57mm - 8.8mm. The working distance is 250mm for ease of maneuvering large surgical instruments, a critical factor for helping medical students master new surgery skills.

The head is inclined at a comfortable 45° and includes interpupillary adjustment of 54mm-75mm to fit a wide variety of users. Dual eyepiece diopters ofer +8D / -7D of individual adjustment range resulting in much less eye fatigue. The head rotates through 360° allowing flexible observation positions for both teacher and student physician. Available in binocular or trinocular format. The trinocular version features an internal prism to re-direct the optical beam, and it comes with a standard 0.6X C-mount adapter to fit your camera.

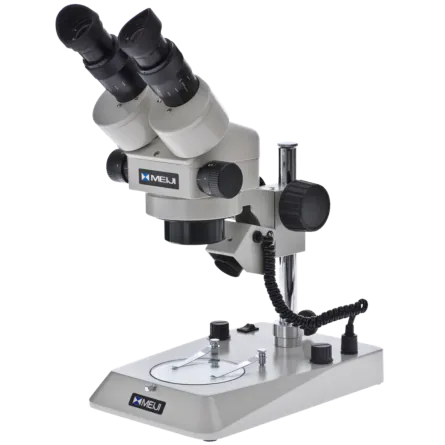

Stand

The Model PKL-1 pole stand is one of our favorites. Well-designed with a compact footprint and 5W LED incident illumination, it is comfortable to use with beveled corners and a tall post which can accept specimens up to 100mm in size. The incident illuminator on the PKL-1 is a powerful LED array on an adjustable pivot providing a luminescent type light with a brighter color temperature than halogen.

The LED array is good for 20,000 hours of service and emits a perfectly round focused beam which can be adjusted for height and specimen. Dual coarse focus knobs drive machined rack and pinion gears for 55mm of smooth focusing movement. A black and white stage plate and two stage clips and a universal voltage sensor (110V-240V) round out the package. Stand dimensions: 330mm (12.9") wide x 280mm (11") deep x 310mm (12.2") tall.

System Components:

EMZ-200 BINOCULAR - EMZ-10B zoom binocular microscope body, MA520 SWF 12.5X Eyepieces, MA558 0.44X Barlow Lens W.D. 250mm, PKL-1/310 Stand with 5W LED incident illumination, Reversible B/W stage plate with 2 stage clips.

EMZ-200TR TRINOCULAR - EMZ-18TRB zoom trinocular microscope body, MA520 SWF 12.5X Eyepieces, MA792 0.35X Barlow Lens W.D. 250mm, MA151/8TR 0.6X C-Mount adapter, PKL-1/310 Stand with 5W LED incident illumination, Reversible B/W stage plate with 2 stage clips.

Specifications

EMZ-10B Binocular Zoom Microsurgical Head
General
SKU EMZ-10B
Short Description
  • Generous 250mm working distance with included Barlow lens
  • Binocular or trinocular format available
  • Lifetime Limited Warranty
Head
Head Type Binocular
Optical Design Greenough Converged
Magnification Type Zoom
Ocular Angle 45°
Ocular Tube Diameter 30.5 mm
Barlow Mount Diameter 50 mm
Diopter Adjustment Dual
Interpupillary Adjustment Arc (Seidentopf)
Interpupillary Adjustment Range 54mm - 75mm
Head Rotation 360 Degrees
Optics
Minimum Objective (X) 3.5
Maximum Objective (X) 22.5
Zoom Control Type Smooth Continuous
Zoom Indicator Graduations Yes
Parfocal Yes
Configuration
Included Eyepieces (X) 12.5X
Eyepiece Style SWF Super Widefield (FN 20mm)
Includes Barlow? Yes
Included Barlow (X) 0.5X
Min Configured Mag 3.5X
Max Configured Mag 22.5X
Body
Body Material All-Metal
Compatibility
Head Ring Mount Diameter 84 mm
Working Distance
Max Working Distance (standard) 100mm
WD with 0.5x Barlow 250mm
Reticles
Reticles Available? Yes
Reticle Diameter (12.5X Eyepiece) 25mm
Product Manuals
  • Meiji EMZ Series Stereo Microscope Manual: Download PDF [888k]
