Meiji Techno EMZ-250 3.5X - 22.5X Binocular Zoom Microsurgical System

List Price: $2,745.00

As low as: $2,465.00

SKU: EMZ-250

Availability: In stock

  • 3.5X to 22.5X zoom magnification
  • SWF 12.5X eyepieces inclined 30 degrees for comfort
  • 5W High-intensity LED incident illumination
  • Ergonomic pole stand allows specimens up to 100mm
  • Generous 250mm working distance with included Barlow lens
  • Binocular format
  • Shown with optional eye guards
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

EMZ-10B Binocular Zoom Microsurgical Head   $1,325.00
MA520 - 12.5x Super Widefield Paired Eyepieces   $150.00
  • $10.00
MA558 Barlow Lens 0.44X, WD = 250mm   $140.00
PKL-1/310 Pole Stand for Microsurgical Series   $850.00
  • $88.00
  • $139.00
  • $209.00
  • $239.00
  • $499.00

Included in Bundle

Microscope System Head: EMZ-10B Binocular Zoom Microsurgical Head

Eyepieces: MA520 - 12.5x Super Widefield Paired Eyepieces

Auxiliary Lens: MA558 Barlow Lens 0.44X, WD = 250mm

Stand: PKL-1/310 Pole Stand for Microsurgical Series

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

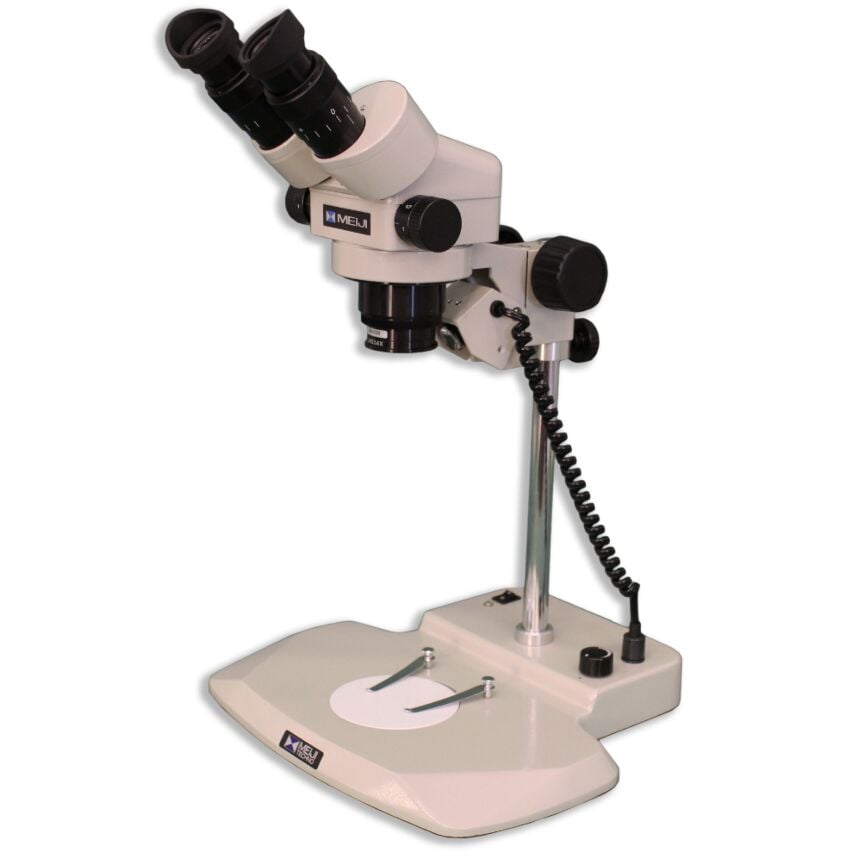

  • EMZ-250 3.5X - 22.5X Zoom Microsurgical System
  • EMZ-250 3.5X - 22.5X Zoom Microsurgical System angle 1
  • EMZ-250 3.5X - 22.5X Zoom Microsurgical System straight
Description

Summary

The Meiji EMZ-250 zoom stereo micro-surgical system is ideally suited for the demanding requirements of a microsurgery teaching classroom. The compact optical unit delivers clear, focused images and the generous 200mm working distance gives the student physician optimum maneuverability for practicing delicate surgical techniques. The ergonomic PKL-1 stand provides 5W LED incident illumination and a stable and secure observation platform. Limited Lifetime Warranty.

Microscope Head

The EMZ-250 head is based on the EMZ-5, easily the most popular Meiji stereo microscope head. This workhorse model builds on that reputation while offering great quality and an affordable purchase point. The parfocal zoom range is 3.5X - 22.5X with dual-sided zoom controls and a field of view range of 57mm - 8.8mm. The working distance is 250mm for ease of maneuvering large surgical instruments, a critical factor for helping medical students master new surgery skills.

The head is inclined at a comfortable 30° and includes interpupillary adjustment of 54mm-75mm to fit a wide variety of users. Dual eyepiece diopters ofer +8D / -7D of individual adjustment range resulting in much less eye fatigue. The head rotates through 360° allowing flexible observation positions for both teacher and student physician. Available in binocular or trinocular format. The trinocular version features an internal prism to re-direct the optical beam, and it comes with a standard 0.6X C-mount adapter to fit your camera.

Stand

The Model PKL-1 pole stand is one of our favorites. Well-designed with a compact footprint and 5W LED incident illumination, it is comfortable to use with beveled corners and a tall post which can accept specimens up to 100mm in size. The incident illuminator on the PKL-1 is a powerful LED array on an adjustable pivot providing a luminescent type light with a brighter color temperature than halogen.

The LED array is good for 20,000 hours of service and emits a perfectly round focused beam which can be adjusted for height and specimen. Dual coarse focus knobs drive machined rack and pinion gears for 55mm of smooth focusing movement. A black and white stage plate and two stage clips and a universal voltage sensor (110V-240V) round out the package. Stand dimensions: 330mm (12.9") wide x 280mm (11") deep x 310mm (12.2") tall.

System Components:

EMZ-200 BINOCULAR - EMZ-10B zoom binocular microscope body, MA520 SWF 12.5X Eyepieces, MA558 0.44X Barlow Lens W.D. 250mm, PKL-1/310 Stand with 5W LED incident illumination, Reversible B/W stage plate with 2 stage clips.

EMZ-200TR TRINOCULAR - EMZ-18TRB zoom trinocular microscope body, MA520 SWF 12.5X Eyepieces, MA792 0.35X Barlow Lens W.D. 250mm, MA151/8TR 0.6X C-Mount adapter, PKL-1/310 Stand with 5W LED incident illumination, Reversible B/W stage plate with 2 stage clips.

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • EMZ-10B Binocular Zoom Microsurgical Head
    SKU EMZ-10B
    Head
    Head Type Binocular
    Optical Design Greenough Converged
    Magnification Type Zoom
    Ocular Angle 45°
    Ocular Tube Diameter 30.5 mm
    Barlow Mount Diameter 50 mm
    Diopter Adjustment Dual
    Interpupillary Adjustment Arc (Seidentopf)
    Interpupillary Adjustment Range 54mm - 75mm
    Head Rotation 360 Degrees
    Minimum Objective (X) 3.5
    Maximum Objective (X) 22.5
    Zoom Control Type Smooth Continuous
    Zoom Indicator Graduations Yes
    Parfocal Yes
    Included Eyepieces (X) 12.5X
    Eyepiece Style SWF Super Widefield (FN 20mm)
    Includes Barlow? Yes
    Included Barlow (X) 0.5X
    Min Configured Mag 3.5X
    Max Configured Mag 22.5X
    Body
    Body Material All-Metal
    Head Ring Mount Diameter 84 mm
    Max Working Distance (standard) 100mm
    WD with 0.5x Barlow 250mm
    Reticles
    Reticles Available? Yes
    Reticle Diameter (12.5X Eyepiece) 25mm

  • MA520 - 12.5x Super Widefield Paired Eyepieces
    SKU MA520
    Warranty Meiji Limited Lifetime Warranty
    Notes 30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Compatible With EM*
    Eyepiece Magnification 12.5x

  • MA600 Stereo Eyeshields (Pair)
    SKU MA600

  • MA558 Barlow Lens 0.44X, WD = 250mm
    SKU MA558
    Warranty Meiji Limited Lifetime Warranty
    Notes Thread M50, Pitch 0.75mm
    Compatibility
    Compatible With EMZ-10, Z-7100
    Optical Accessory
    Barlow Lens Power 0.4X

  • PKL-1/310 Pole Stand for Microsurgical Series
    SKU PKL-1/310
    Stand
    Stand Class Pedestal
    Stand Type Pole
    Stage Plate Black/White Contrast Plate
    Post Diameter 20 mm
    If FB Mounts Direct
    Focus Block Mount Diameter 20 mm
    If FB Integrated
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Compatibility
    Head Ring Mount Diameter 84 mm

  • Summit SK2-1.3X 1.3MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-3.1X 3.1MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-5.2X 5.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-10X 10.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-14X 14.0MP PC / MAC Compatible Digital Microscope Camera
    SKU OCS-SK2-1.3XOCS-SK2-3.1XOCS-SK2-5.2XOCS-SK2-10XOCS-SK2-14X
    Warranty 1 Year1 Year1 Year1 Year1 Year
    Product Weight 2.00002.00002.00002.00002.0000
    Sensor
    Sensor Type CMOSCMOSCMOSCMOSCMOS
    Sensor Size 1/3 Inch1/2 Inch1/3 Inch1/3 Inch1/3 Inch
    Sensor Details Aptina MT9M111 CMOSAptina MT9T001 CMOSAptina MT9P001 CMOSAPTINA MT9J003 CMOSAPTINA MT9F002 CMOS
    Color/Monochrome ColorColorColorColorColor
    Pixel Pitch 3.6 µm x 3.6 µm3.2 µm x 3.2 µm2.2 µm x 2.2 µm1.7 µm x 1.7 µm1.4 µm x 1.4 µm
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressiveProgressiveProgressive
    Signal to Noise Ratio 44 db43 db40.5 db34 db35.5 db
    Sensitivity 1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)
    Dynamic Range 71 db61db66.5db65.2db63.5db
    A/D Conversion 10-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit R.G.B to PC12-bit Parallel, 8-bit R.G.B to PC
    Cooling System  NaturalNaturalNatural
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular Mount
    Resolution 1.3 Megapixel, 1280x1024 pixels3 Megapixel, 2048x1536 pixels5 Megapixel, 2592 X 1944 pixels10 Megapixel, 3584 X 2748 pixels14 Megapixel, 4096 x 3288 pixels
    Camera Output Resolutions 1280 X 1024; 640 X 512; 320 X 2562048 x 1536; 1024 x 768; 680 x 5102592 X 1944; 1280 X 960; 640 X 4803584 X 2748; 1792 x 1374; 896 X 6844096 x 3288; 2048 x 1644; 1024 x 822
    FPS @ Max Res [email protected]; [email protected]; [email protected][email protected]; [email protected]; [email protected]5fps @ 2592 X 19441.9fps @3584 x 27481.7fps @4096 x 3288
    FPS @ Min Res 50fps @ 320 x 25643fps @ 680 x 51060fps @ 640 X 48027fps @896 x 68427fps @1024 x 822
    Camera Interface USB 2.0USB 2.0USB 2.0USB 2.0USB 2.0
    White Balance Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, Manual
    Software Included OptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2View
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAIN
    Power Source USB PoweredUSB PoweredUSB PoweredUSB PoweredUSB Powered
    File Formats BMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFF
    Exposure Control Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, Manual
    Exposure Time 2000ms-0.14Ms2000ms-0.128s2000ms-0.21s2000ms-0.21s0.4~2000ms, ROI Auto & Manual
    Operating Temperatures 10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C
    Operating Humidity 30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH
    Storage Temperature -20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C
    Other Details
    Included Accessories 0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
    Certifications CE, ULCE, ULCE, ULCE, ULCE, UL
    Cable Length 1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)
    Camera Warranty 1 Year1 Year1 Year1 Year1 Year
    Software Support 6 Months6 Months6 Months6 Months6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount
Product Manuals
  • Meiji EMZ Series Stereo Microscope Manual: Download PDF [888k]
