EMZ-200 4.4X - 28.1X Zoom Microsurgical SystemEMZ-200 4.4X - 28.1X Zoom Microsurgical System 2

EMZ-250TR 3X - 19.7X Zoom Trinocular Microsurgical System

You pay: $0.00

$3,370.00

Meiji Techno

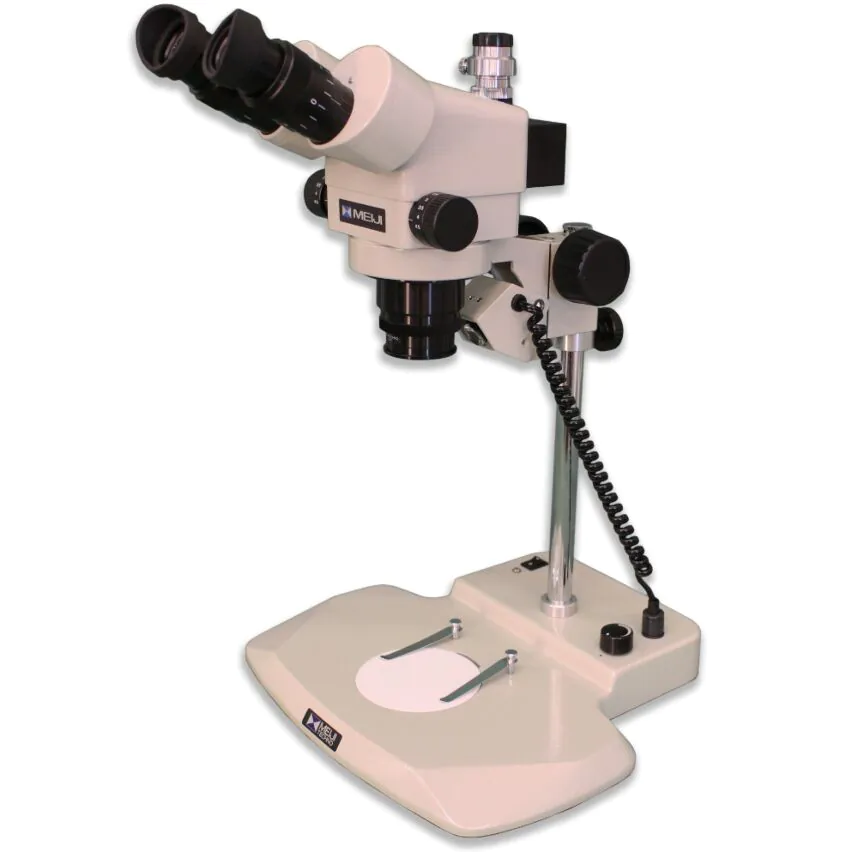

EMZ-250TR 3X - 19.7X Zoom Trinocular Microsurgical System

SKU: EMZ-250TR

In stock FREE Shipping On Items Over $150
  • 3X to 19.7X zoom magnification
  • SWF 12.5X eyepieces inclined 30 degrees for comfort
  • 5W High-intensity LED incident illumination
  • Ergonomic pole stand allows specimens up to 100mm
  • Generous 250mm working distance with included Barlow lens
  • Trinocular configuration
  • Shown with optional eye guards
  • Lifetime Limited Warranty

Select Package Options:

EMZ-18TRB Trinocular Zoom Microsurgical Head   $1,650.00
MA520 - 12.5x Super Widefield Paired Eyepieces   $150.00
MA792 0.35x Barlow Lens, WD=250mm   $129.00
PKL-1/310 Pole Stand for Microsurgical Series   $915.00
C-Mount Adapter 0.6X for Meiji EMZ-8TR Series   $195.00
EMZ-8TR/PT#1 Trinocular Tube for increased FOV   $60.00

Included in Bundle

Microscope System: EMZ-18TRB Trinocular Zoom Microsurgical Head

Eyepieces: MA520 - 12.5x Super Widefield Paired Eyepieces

Auxiliary Lens: MA792 0.35x Barlow Lens, WD=250mm

Stand: PKL-1/310 Pole Stand for Microsurgical Series

Installed C-Mount Adapter: C-Mount Adapter 0.6X for Meiji EMZ-8TR Series

Trinocular Tube: EMZ-8TR/PT#1 Trinocular Tube for increased FOV

* Required Fields

You pay: $0.00

$3,370.00

As low as: $3,099.00

Regular Price: $3,370.00

Add to Wish list
Created with Sketch. 30 Day Money Back Guarantee
Description

Details

Summary

The Meiji EMZ-250TR zoom stereo micro-surgical system is ideally suited for the demanding requirements of a microsurgery teaching classroom. The compact optical unit delivers clear, focused images and the generous 250mm working distance gives the student physician optimum maneuverability for practicing delicate surgical techniques. The ergonomic PKL-1 stand provides 5W LED incident illumination and a stable and secure observation platform. Limited Lifetime Warranty.

Microscope Head

The EMZ-250TR head is based on the EMZ-5, easily the most popular Meiji stereo microscope head. This workhorse model builds on that reputation while offering great quality and an affordable purchase point. The parfocal zoom range is 3X - 19.7X with dual-sided zoom controls and a field of view range of 57mm - 8.8mm. The working distance is 200mm for ease of maneuvering surgical instruments, a critical factor for helping medical students master new surgery skills.

The head is inclined at a comfortable 45° and includes interpupillary adjustment of 54mm-75mm to fit a wide variety of users. Dual eyepiece diopters ofer +8D / -7D of individual adjustment range resulting in much less eye fatigue. The head rotates through 360° allowing flexible observation positions for both teacher and student physician. This trinocular version features an internal prism to re-direct the optical beam, and it comes with a standard 0.6X C-mount adapter to fit your camera.

Stand

The Model PKL-1 pole stand is one of our favorites. Well-designed with a compact footprint and 5W LED incident illumination, it is comfortable to use with beveled corners and a tall post which can accept specimens up to 100mm in size. The incident illuminator on the PKL-1 is a powerful LED array on an adjustable pivot providing a luminescent type light with a brighter color temperature than halogen.

The LED array is good for 20,000 hours of service and emits a perfectly round focused beam which can be adjusted for height and specimen. Dual coarse focus knobs drive machined rack and pinion gears for 55mm of smooth focusing movement. A black and white stage plate and two stage clips and a universal voltage sensor (110V-240V) round out the package. Stand dimensions: 330mm (12.9") wide x 280mm (11") deep x 310mm (12.2") tall.

System Components:

EMZ-200TR TRINOCULAR - EMZ-18TRB zoom trinocular microscope body, MA520 SWF 12.5X Eyepieces, MA793 0.45X Barlow Lens W.D. 200mm, MA151/8TR 0.6X C-Mount adapter, PKL-1/310 Stand with 5W LED incident illumination, Reversible B/W stage plate with 2 stage clips.

Additional Information

Additional Information

Brand Meiji Techno
SKU EMZ-250TR
Short Description
  • 3X to 19.7X zoom magnification
  • SWF 12.5X eyepieces inclined 30 degrees for comfort
  • 5W High-intensity LED incident illumination
  • Ergonomic pole stand allows specimens up to 100mm
  • Generous 250mm working distance with included Barlow lens
  • Trinocular configuration
  • Shown with optional eye guards
  • Lifetime Limited Warranty
