Meiji Techno

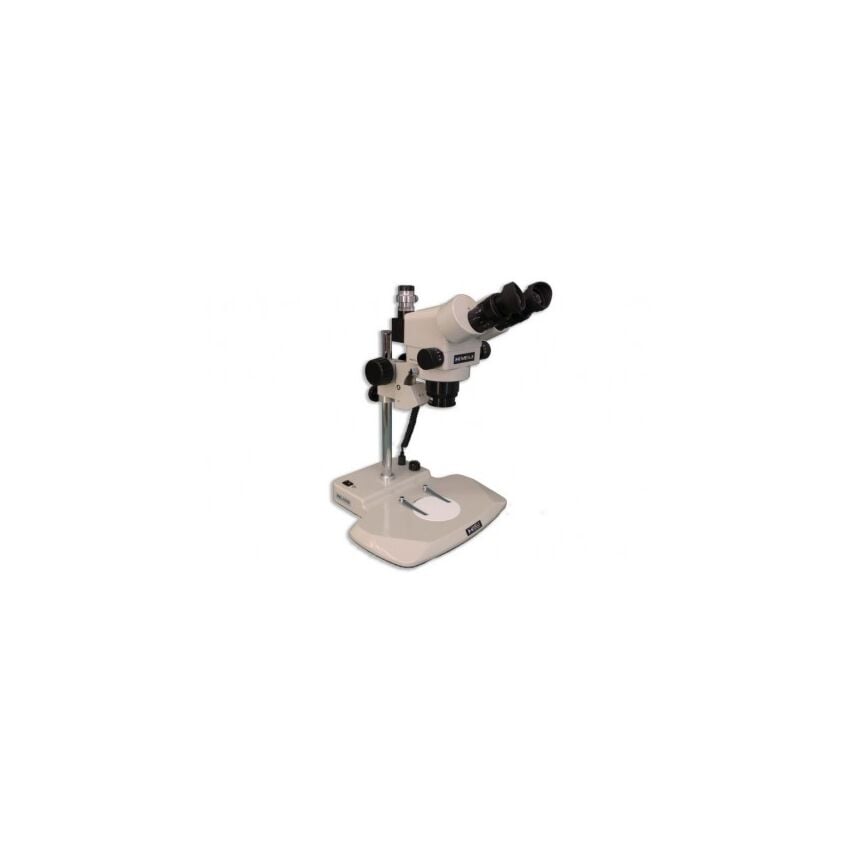

EMZ-200TR 3.9X - 25.3X Zoom Trinocular Microsurgical System
In stock
- 3.9X - 25.3X zoom magnification
- SWF 12.5X eyepieces inclined 45 degrees for comfort
- 5W High-intensity LED incident illumination
- Ergonomic pole stand allows specimens up to 100mm
- Generous 200mm working distance with included Barlow lens
- Trinocular configuration
- Shown with optional eye guards
- Lifetime Limited Warranty
Summary
The Meiji EMZ-200 zoom stereo micro-surgical system is ideally suited for the demanding requirements of a microsurgery teaching classroom. The compact optical unit delivers clear, focused images and the generous 200mm working distance gives the student physician optimum maneuverability for practicing delicate surgical techniques. The ergonomic PKL-1 stand provides 5W LED incident illumination and a stable and secure observation platform. Limited Lifetime Warranty.
Microscope Head
The EMZ-200 head is based on the EMZ-5, easily the most popular Meiji stereo microscope head. This workhorse model builds on that reputation while offering great quality and an affordable purchase point. The parfocal zoom range is 3.9X - 25.3X with dual-sided zoom controls and a field of view range of 57mm - 8.8mm. The working distance is 200mm for ease of maneuvering surgical instruments, a critical factor for helping medical students master new surgery skills.
The head is inclined at a comfortable 45° and includes interpupillary adjustment of 54mm-75mm to fit a wide variety of users. Dual eyepiece diopters ofer +8D / -7D of individual adjustment range resulting in much less eye fatigue. The head rotates through 360° allowing flexible observation positions for both teacher and student physician. Available in binocular or trinocular format. The trinocular version features an internal prism to re-direct the optical beam, and it comes with a standard 0.6X C-mount adapter to fit your camera.
Stand
The Model PKL-1 pole stand is one of our favorites. Well-designed with a compact footprint and 5W LED incident illumination, it is comfortable to use with beveled corners and a tall post which can accept specimens up to 100mm in size. The incident illuminator on the PKL-1 is a powerful LED array on an adjustable pivot providing a luminescent type light with a brighter color temperature than halogen.
The LED array is good for 20,000 hours of service and emits a perfectly round focused beam which can be adjusted for height and specimen. Dual coarse focus knobs drive machined rack and pinion gears for 55mm of smooth focusing movement. A black and white stage plate and two stage clips and a universal voltage sensor (110V-240V) round out the package. Stand dimensions: 330mm (12.9") wide x 280mm (11") deep x 310mm (12.2") tall.
System Components:
EMZ-200 BINOCULAR - EMZ-10B zoom binocular microscope body, MA520 SWF 12.5X Eyepieces, MA546 0.5X Barlow Lens W.D. 200mm, PKL-1/310 Stand with 5W LED incident illumination, Reversible B/W stage plate with 2 stage clips.
EMZ-200TR TRINOCULAR - EMZ-18TRB zoom trinocular microscope body, MA520 SWF 12.5X Eyepieces, MA793 0.45X Barlow Lens W.D. 200mm, MA151/8TR 0.6X C-Mount adapter, PKL-1/310 Stand with 5W LED incident illumination, Reversible B/W stage plate with 2 stage clips.
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
