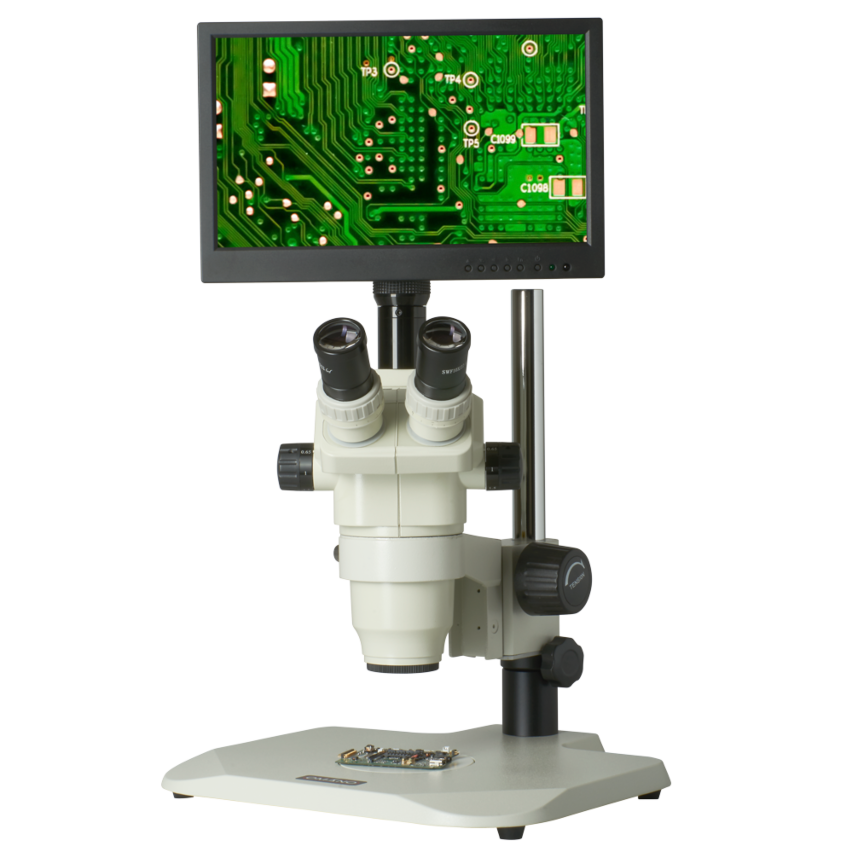

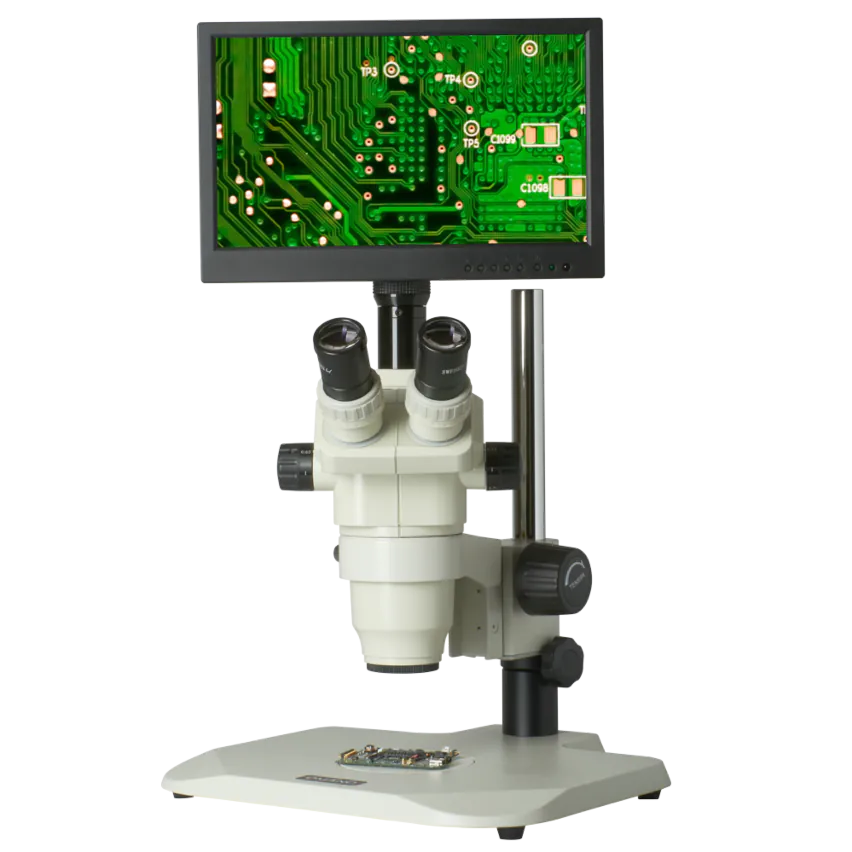

Omano CX3-OM99-V3 6.5X-45X Zoom Stereo Microscope Inspection System

List Price: $3,207.00

Starting at: $1,876.00

SKU: CX3-OM99-V3

Availability: In stock

  • UPGRADED Larger 11.6-inch TFT-LCD color display
  • Monitor Resolution 2.0MP (1920 X 1080)
  • LVDS & SD card output
  • Fast Frame Rate of 60 FPS @ 1280 x 800 resolution
  • Sharp CMOS sensor with 2.0MP image capture
  • Remote with control functions
  • Superb, top-of-the-range-optics
  • 6.5x-45x zoom stereo microscope head
  • Wide V3 base plate for stability
  • Stainless steel post
  • Included ring illuminator

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

CX-3 1080p LVDS Microscope Camera with 11.6" Display   $799.00
V3 Pole Stand   $130.00
OMFB99V3 Focus Block for V3 Base, 76mm Ring   $60.00
  • $120.00
  • $120.00
  • $120.00
  • $85.00
  • $85.00
  • $85.00
  • $85.00
C-Mount Adapter 0.5X for Omano OM99-T   $109.00

Included in Bundle

LVDS Camera: CX-3 1080p LVDS Microscope Camera with 11.6" Display

Stand: V3 Pole Stand

Focus Block: OMFB99V3 Focus Block for V3 Base, 76mm Ring

C-Mount Adapger: C-Mount Adapter 0.5X for Omano OM99-T

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • CX3-OM99-V3 Digital Inspection Microscope
  • CX3-OM99-V3 Digital Inspection Microscope 2
  • CX3-OM99-V3 Digital Inspection Microscope 3
  • CX3-OM99-V3 Digital Inspection Microscope 4
  • CX3-OM99-V3 Digital Inspection Microscope 5
Description

Summary

This high quality combination includes OptixCam's high resolution 1080p LVDS microscope camera/display with Omano's top of the line OM99-T trinocular stereo zoom microscope head and V3 pole stand. With excellent optics throughout the microscope system, it is an industrial inspection system that can also be used as a standard optical microscope using the included super wide field, SWF10x eyepieces.

Camera

An upgrade to the old CX-2 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and user interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter.

Features

The CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.

LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.

Camera Accessories

AC Power adapter, Remote Control Keypad, Remote Image Capture Controller.

Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Wt. 3.0lbs.

Microscope

The Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm.

NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.

Focus & Illumination

Focus controls are both left and right hand side for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED or other lights when adding to cart.

Stand

The Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included.

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • OM99T Zoom Trinocular Stereo Head with Focus Block (Recommended for Cameras)

    OM99TD Zoom Detent Trinocular Stereo Head with Focus Block (Recommended for Cameras)
    SKU OM99-TOM99-TD
    Backorder ETA  Sep 30, 2015
    Magnification Chart Omano OM99 Magnification ChartOmano OM99 Magnification Chart
    Staff Pick Yes
    Head
    Head Type TrinocularTrinocular
    Optical Design Greenough ConvergedGreenough Converged
    Magnification Type ZoomZoom
    Ocular Angle 45°45°
    Ocular Tube Diameter 30 mm30 mm
    Barlow Mount Diameter 47 mm47 mm
    Diopter Adjustment DualDual
    Interpupillary Adjustment Linear SlidingLinear Sliding
    Interpupillary Adjustment Range 55-75 mm55-75 mm
    Trinocular Type Prism SwitchingPrism Switching
    Trinocular Standard 23mm DIN23mm DIN
    Trinocular Tube Focusable? YesYes
    Head Rotation 360 Degrees360 Degrees
    Minimum Objective (X) 0.650.65
    Maximum Objective (X) 4.54.5
    Zoom Ratio 6.9:16.9:1
    Zoom Control Type Smooth ContinuousDetent Click-Stops
    Zoom Indicator Graduations YesYes
    Parfocal YesYes
    Configuration
    Includes Eyepieces? YesYes
    Included Eyepieces (X) 10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Min Standard Mag 6.5X6.5X
    Max Standard Mag 45X45X
    Eyecups Style Soft RubberSoft Rubber
    Body
    Body Material CompositeComposite
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount23mm , C-Mount
    Available Imaging Mounts 0.5X C-Mount0.5X C-Mount
    Head Ring Mount Diameter 76 mm76 mm
    Max Working Distance (standard) 103 mm103 mm
    WD with 0.5x Barlow 200 mm200 mm
    WD with 0.75x Barlow 117117
    WD with 2.0x Barlow 4040

  • CX-3 1080p LVDS Microscope Camera with 11.6" Display
    SKU OCS-CX3-HDMI-116
    Warranty 1 Year
    Product Weight 2.7
    Product Length 10
    Product Width 7
    Product Height 4
    Product Display
    New Yes
    Sensor
    Sensor Type CMOS
    Sensor Size 1/3 Inch
    Sensor Details CMOS
    Color/Monochrome Color
    Scan Mode Progressive
    Shutter Electronic, Rolling Shutter
    Camera
    Camera Mount C-Mount
    FPS @ Max Res 60fps @ 1280 X 800
    Camera Interface LCD Display, SD Card, HDMI
    White Balance Automatic, Manual
    Driver API Compatibility DirectX
    Power Source External Power Supply
    File Formats BMP, JPEG, PNG, TIFF
    Exposure Control Automatic, Manual
    Supported Operating Systems N/A
    System Requirements N/A
    Certifications CE
    Software Support 6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount

  • V3 Pole Stand
    SKU V3t
    Stand
    Stand Class Pedestal
    Stand Type Pole
    Stand Features Beveled Base
    Stage Plate Black/White Contrast Plate
    Base Width 318 mm
    Base Depth 305 mm
    Post Height 345 mm
    Post Diameter 25 mm
    If FB Mounts Direct
    Focus Block Mount Diameter 25 mm

  • OMFB99V3 Focus Block for V3 Base, 76mm Ring
    SKU OMFB99V3
    If FB Integrated
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    If FB Mounts Direct
    Focus Block Mount Diameter 25 mm
    Compatibility
    Head Ring Mount Diameter 76 mm

  • 15X Eyepiece For OM99 (Single)

    20X Eyepiece For OM99, OM139 (Single)

    25X Eyepiece For OM99 (Single)
    SKU OMEP-99-15XOMEP-99-20XOMEP-99-25X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes Priced per EyepiecePriced per PairPriced per Pair
    Compatibility
    Compatible With OM99, OM99TOM99, OM99T, OM139, OM139TOM99, OM99T
    Eyepiece Magnification 15x20x25x

  • 80 LED Ring Light, Variable Intensity

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section

    OMLED-DP6W LED Dual Gooseneck Pole Mount Light
    SKU OMLED-80AOMLED-64AOMLED-144AOMLED-DP6W
    Warranty 1 year  1 year
    Product Weight 1lb  4.0 lbs
    Product Length  31.0 cm
    Product Width  29.0 cm
    Product Height  17.5 cm
    Illumination Type LEDLEDLEDLED
    Light Specs
    Ring Light Type LEDLEDLEDLED
    Ring Light Specification 80 LED90-265V Auto switching90-265V Auto switching3W x 2
    Ring Light Power 8W  6W
    Ring Light Control VariableVariableVariableVariable

  • 0.5X Barlow Lens For Omano OM99/XTL, WD=163mm

    0.75X Barlow Lens For Omano OM99/XTL, WD=117mm

    1.0X Protective Barlow For Omano OM99/XTL

    2.0X Barlow Lens For Omano OM99/XTL, WD=40mm
    SKU OMBL-99-05XOMBL-99-075XOMBL-99-10XOMBL-99-20X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Compatibility
    Compatible With OM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLT
    Optical Accessory
    Barlow Lens Power 0.5X0.75X1.0X2.0X

  • C-Mount Adapter 0.5X for Omano OM99-T
    SKU OMCM-99-05X
    Warranty Omano Limited Lifetime Warranty
    Notes Does not fit Binocular
    Compatible With OM99T
Magnification Chart

Eyepiece

Standard Configuration

Omano OM99

Auxiliary Barlow Lens

0.4X

0.5X

0.75X

2.0X

Working distance 100mm

Working distance 298mm

Working distance 163mm

Working distance 117mm

Working distance 40mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

10X

6.5x-45x

33.8 - 4.9

2.6-18.0x

67.7-9.8

3.3x-22.5x

67.7-9.8

4.9x-33.8x

45.1-6.5

13x-90x 16.9-2.5

15X

9.8x-67.5x

24.6-3.5

3.9-27.0x

49.2-7.0

4.9x-33.8x

49.2-7.0

7.3x-50.6x

32.8-4.7

19.5x-135x  12.3-1.8

20X

13x-90x

20.0-2.9

5.2-36.0x

40.5-5.8

6.5x-45x

40.5-5.8

9.75x-67.5x

26.6-3.8

26x-180x 10.0-1.4

 25x

 16.3x-112.5x 18.5-2.6  6.5-45.0x 37.0-5.2  8.1x-56.3x

37.0-5.2 12.2x-84.4x 24.6-3.5

32.5x-225x  9.2-1.3
