• 	EMZ-8TR Trinocular Stereo Head	EMZ-8TRD Trinocular Stereo Head with Detents	EMZ-8TRU Trinocular Stereo Head with Illuminator Port	EMZ-8TRH Trinocular Stereo Head with High Eyepoint (Requires MA522)
  General
  Brand	Meiji Techno	Meiji Techno	Meiji Techno	Meiji Techno
  SKU	EMZ8TR	EMZ8TRD	EMZ8TRU	EMZ8TRH
  Head
  Head Type	Trinocular	Trinocular	Trinocular	Trinocular
  Optical Design	Greenough Converged	Greenough Converged	Greenough Converged	Greenough Converged
  Magnification Type	Zoom	Zoom	Zoom	Zoom
  Ocular Angle	45°	45°	45°	45°
  Ocular Tube Diameter	30.5 mm	30.5 mm	30.5 mm	30.5 mm
  Barlow Mount Diameter	50 mm	50 mm	50 mm	50 mm
  Diopter Adjustment	Dual	Dual	Dual	Dual
  Interpupillary Adjustment	Arc (Seidentopf)	Arc (Seidentopf)	Arc (Seidentopf)	Arc (Seidentopf)
  Interpupillary Adjustment Range	54mm - 75mm	54mm - 75mm	54mm - 75mm	54mm - 75mm
  Trinocular Type	Beam Split Continuous	Beam Split Continuous	Beam Split Continuous	Beam Split Continuous
  Trinocular Standard	23mm DIN	23mm DIN	23mm DIN	23mm DIN
  Head Rotation	360 Degrees	360 Degrees	360 Degrees	360 Degrees
  Minimum Objective (X)	0.7	0.7	0.7	0.7
  Maximum Objective (X)	4.5	4.5	4.5	4.5
  Zoom Control Type	Smooth Continuous	Detent Click-Stops	Smooth Continuous	Smooth Continuous
  Zoom Indicator Graduations	Yes	Yes	Yes	Yes
  Parfocal	Yes	Yes	Yes	Yes
  Body
  Body Material	All-Metal	All-Metal	All-Metal	All-Metal
  Compatibility
  Imaging Compatibility (with adapters)	23mm , C-Mount	23mm , C-Mount	23mm , C-Mount	23mm , C-Mount
  Available Imaging Mounts	0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)	0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)	0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)	0.265X C-Mount, 0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.63X C-Mount, 0.6X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)
  Head Ring Mount Diameter	84 mm	84 mm	84 mm	84 mm
  Max Working Distance (standard)	104mm	104mm	104mm	104mm

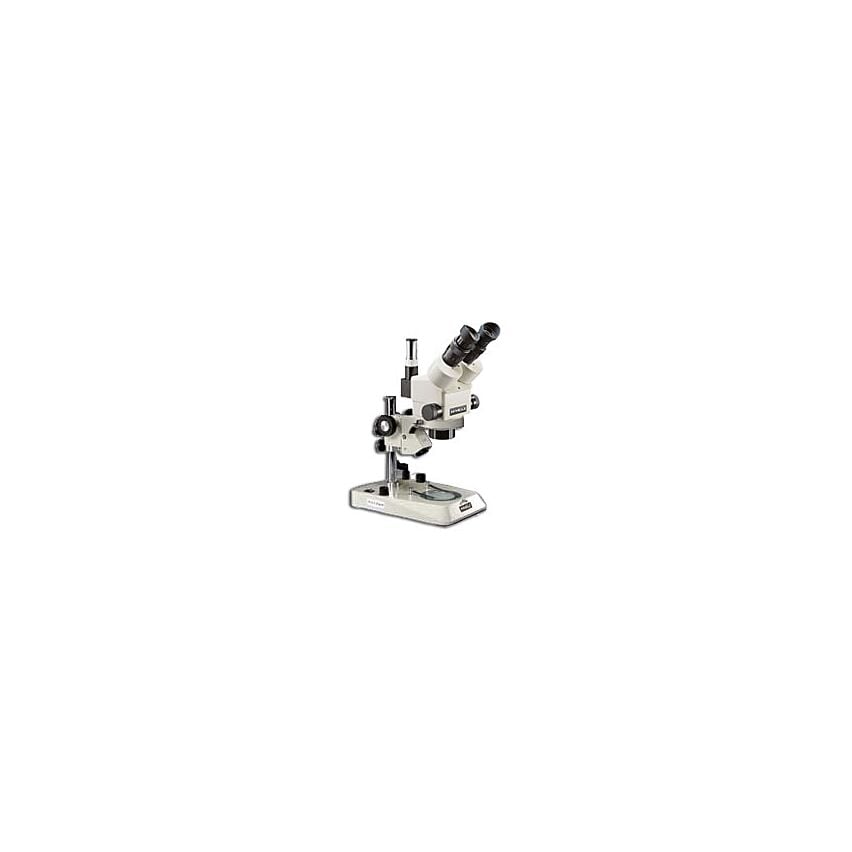

• 	PLS-2 Pole Stand
  General
  Brand	Meiji Techno
  SKU	PLS2
  Feed - Title	Meiji Techno PLS-2 Pole Stand
  Feed - Description	The Meiji EMZ-8TR-PLS2 is a combination of Meiji's best-selling trinocular zoom stereo microscope body and the narrower PLS2 pole stand. Dual variable LED illumination is integrated. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head The EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45
  Feed - Custom Label 1	500-1000
  Stand
  Stand Class	Pedestal
  Stand Type	Pole
  Stage Plate	Clear Glass, Frosted Glass
  Post Diameter	20 mm
  If FB Mounts Direct
  Focus Block Mount Diameter	20 mm
  If FB Integrated
  Focus Controls	Coarse
  Focus Mechanism	Rack & Pinion
  Compatibility
  Head Ring Mount Diameter	84 mm

• 	MA501 - 5X Super Widefield Paired Eyepieces	MA718 - 7.5X Super Widefield Paired Eyepieces	MA502 - 10X Super Widefield Paired Eyepieces	MA520 - 12.5x Super Widefield Paired Eyepieces	MA503 - 15X Super Widefield Paired Eyepieces	MA504 - 20X Super Widefield Paired Eyepieces	MA521 - 30X Super Widefield Paired Eyepieces	MA519 - 10x Focusing Eyepiece (single)	MA522 - SWF High EP 10x Paired Eyepieces (Req'd for EMZ-5H, 8TRH, 13H)
  General
  Brand	Meiji Techno	Meiji Techno	Meiji Techno	Meiji Techno	Meiji Techno	Meiji Techno	Meiji Techno	Meiji Techno	Meiji Techno
  SKU	MA501	MA718	MA502	MA520	MA503	MA504	MA521	MA519	MA522
  Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty	Meiji Limited Lifetime Warranty
  Notes	30.5mm OD, Fits MEIJI EM SERIES ONLY	30.5mm OD, Fits MEIJI EM SERIES ONLY	30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY	30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY	30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY	30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY	30.5mm OD, Fits MEIJI EM SERIES ONLY	30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY	30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
  Feed - Title	Meiji Techno MA501 - 5X Super Widefield Paired Eyepieces	Meiji Techno MA718 - 7.5X Super Widefield Paired Eyepieces	Meiji Techno MA502 - 10X Super Widefield Paired Eyepieces	Meiji Techno MA520 - 12.5x Super Widefield Paired Eyepieces	Meiji Techno MA503 - 15X Super Widefield Paired Eyepieces	Meiji Techno MA504 - 20X Super Widefield Paired Eyepieces	Meiji Techno MA521 - 30X Super Widefield Paired Eyepieces	Meiji Techno MA519 - 10x Focusing Eyepiece (single)	Meiji Techno MA522 - SWF High EP 10x Paired Eyepieces (Req'd for EMZ-5H / 8TRH)
  Feed - Description	The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45	The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45	The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45	The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45	The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45	The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45	The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45	The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45	The Meiji EMZ5-ACRO combines Meiji's best-selling EMZ-5 0.75-4.5x stereo zoom microscope body with the flexibility of the Acrobat articulating arm boom stand for an affordable and high quality inspection microscope. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope HeadThe EMZ-5 stereo head is by far the most popular Meiji stereo microscope head. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45
  Feed - Custom Label 1	100-500	100-500	100-500	100-500	100-500	100-500	100-500	100-500	100-500
  Compatible With	EM*	EM*	EM*	EM*	EM*	EM*	EM*	EM*	EM*
  Eyepiece Magnification	5x	7.5x	10x	12.5x	15x	20x	30x	10x	10x

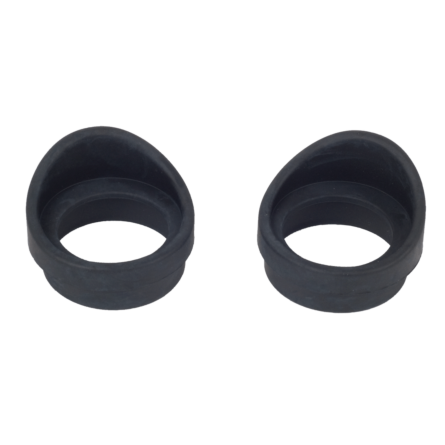

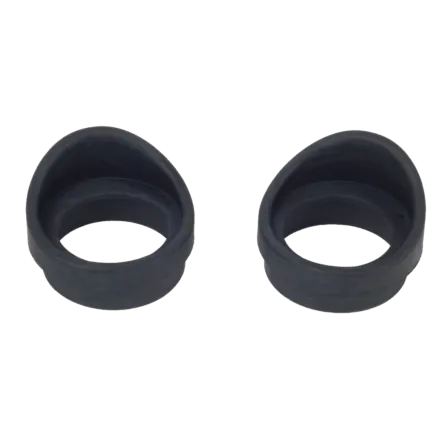

• 	MA600 Stereo Eyeshields (Pair)
  General
  Brand	Meiji Techno
  SKU	MA600
  Feed - Title	Meiji Techno MA600 Stereo Eyeshields (Pair)
  Feed - Description	The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45
  Feed - Custom Label 1	<100

• Meiji EMZ Series Stereo Microscope Manual: Download PDF [888k]
