Meiji Techno MT4200 Dermatology Laboratory Microscope

List Price: $3,965.00

Starting at: $3,599.00

SKU: MT4200-D

Availability: In stock

  • Infinity Corrected Optics
  • 5 Plan Objective Lenses
  • Cool white LED illumination
  • Ergonomic placement of controls
  • Traditional or Ergonomic head
  • Compact space saving footprint
  • Lifetime Limited Warranty.
  • Recommended for Healthcare professionals

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji MT4200 Dermatology Biological Microscope
  • Meiji MT4200 Trinocular Dermatology Biological Microscope
  • Meiji MT4200 Biological Dermatology Microscope stage
  • Meiji MT4200 Biological Dermatology Microscope objectives
  • Meiji MT4200 Biological Dermatology Microscope condenser
  • Meiji MT4200 Biological Dermatology Microscope focus
Description

Summary

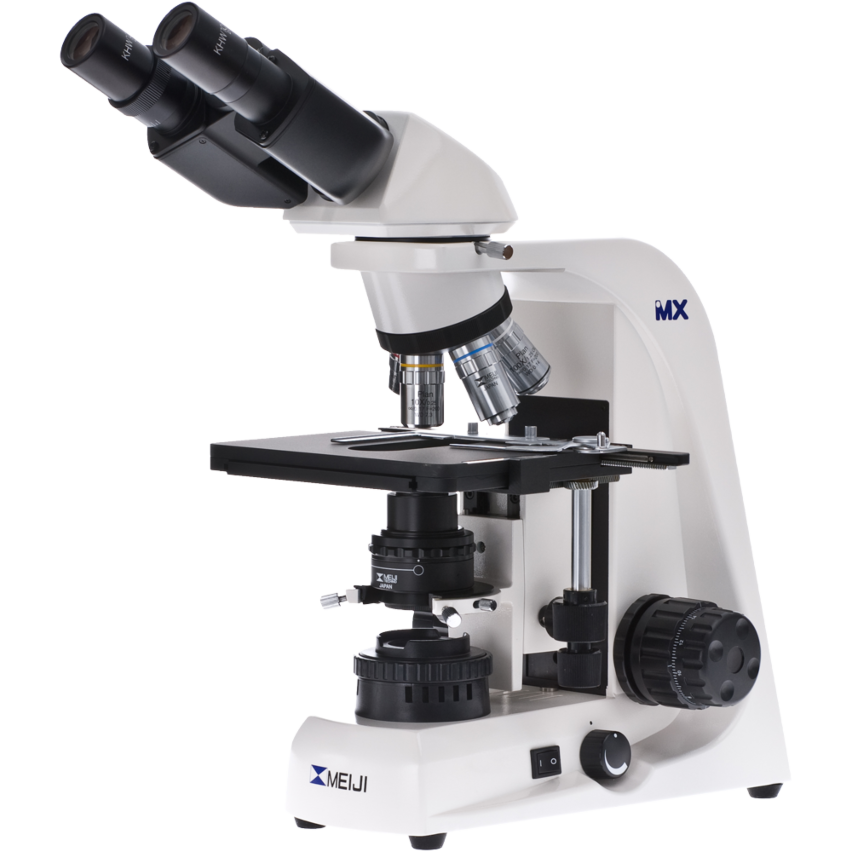

The new Meiji MT4200D is an advanced, research-grade dermatology microscope, designed for the rigors of daily routine laboratory work by dermatologists and healthcare professionals. The Infinity Corrected Optical System (ICOS) includes five objective lenses set in a quintuple nosepiece and combines with standard LED illumination to offer bright, crisp images. It is manufactured in Japan and comes with a Lifetime Limited Warranty.

Optics

The microscope includes a Siedentopf-type binocular head with the oculars inclined at a comfortable 30 degrees. An optional Ergonomic head offers 10-50 degrees of inclination range for even greater viewing flexibility. The left eyetube has diopter settings for easy individual eye focusing. The interpupillary distance is adjustable between 53mm - 75mm. 10x Widefield High Eyepoint eyepieces (F.N. 20) are standard and come with a 21mm reticle mount. Optional 15x and 20x eyepieces are also available.

A DIN Infinity Corrected Optical System (ICOS) includes five Plan brightfield objective lenses (Plan Apo 1.25x, Plan Semi-Apo 4x, 10x, 20x and 40x) set in a ball-bearing mounted, quintuple nosepiece. The Apochromatic objectives significantly reduce chromatic and spherical aberration for clearer, more detailed images than standard Plan Achromats can produce.

Stage & Focus

The standard right-handed flat top stage measures 171mm x 115mm with a 78mm(X) x 52mm(Y) range of movement, coaxial right-hand controls with drop-down positioning and a ceramic coating for durability.

Condenser & Illumination

Abbe .90 NA Condenser in dovetail mount with swing-out top lens. Illumination is bright white LED.

Accessories

Manual, dust cover

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • MT4200D Binocular Dermatology LED Microscope

    MT4200ED Ergonomic Binocular Dermatology LED Microscope

    MT4300D Trinocular Dermatology LED Microscope

    MT4300ED Ergonomic Trinocular Dermatology LED Microscope
    SKU MT4200DMT4200EDMT4300DMT4300ED
    Warranty Limited Lifetime WarrantyLimited Lifetime WarrantyLimited Lifetime WarrantyLimited Lifetime Warranty
    Notes An good compound microscope that Meiji has now upgraded to the MT5200 series An good compound microscope that Meiji has now upgraded to the MT5200 series An good compound microscope that Meiji has now upgraded to the MT5200 series An good compound microscope that Meiji has now upgraded to the MT5200 series
    Product Weight 292917.600029
    Product Length 390 mm390 mm390 mm390 mm
    Product Width 210 mm210 mm210 mm210 mm
    Product Height 410 mm410 mm410 mm410 mm
    System
    System Type Brightfield, SpecialtyBrightfield, SpecialtyBrightfield, SpecialtyBrightfield, Specialty
    Optical Design Infinity CorrectedInfinity CorrectedInfinity CorrectedInfinity Corrected
    Head
    Head Type BinocularBinocular, ErgonomicTrinocularTrinocular, Ergonomic
    Head Rotation  360 Degrees360 Degrees360 Degrees
    Ocular Angle 30°Variable Ergonomic30°Variable Ergonomic
    Diopter Adjustment SingleSingleSingleSingle
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 53 – 75 mm53 – 75 mm53 – 75 mm53 – 75 mm
    Trinocular Type  Beam Split ContinuousBeam Split Continuous
    Trinocular Standard  23mm DIN23mm DIN
    View Orientation Inverted ViewInverted ViewInverted ViewInverted View
    Ocular Tube Diameter 23 mm23 mm23 mm23 mm
    Body
    Nosepiece Orientation ReversedReversedReversedReversed
    Nosepiece Style Quintuple (5)Quintuple (5)Quintuple (5)Quintuple (5)
    Focus Controls Coarse & Fine, CoaxialCoarse & Fine, CoaxialCoarse & Fine, CoaxialCoarse & Fine, Coaxial
    Focus Mechanism Rack & PinionRack & PinionRack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual AmbidextrousDual AmbidextrousDual Ambidextrous
    Focus Controls Graduated? YesYesYesYes
    Stage Type Mechanical XYMechanical XYMechanical XYMechanical XY
    Stage Features Ceramic Coated, Fingertip Controls, Slide Holder (spring-loaded)Ceramic Coated, Fingertip Controls, Slide Holder (spring-loaded)Ceramic Coated, Fingertip Controls, Slide Holder (spring-loaded)Ceramic Coated, Fingertip Controls, Slide Holder (spring-loaded)
    Stage Dimensions 171mm x 115mm171mm x 115mm171mm x 115mm171mm x 115mm
    Stage Range of Movement (XY) 78mm x 52mm78mm x 52mm78mm x 52mm78mm x 52mm
    Configuration
    Includes Eyepieces? YesYesYesYes
    Included Eyepiece Quantity 2222
    Included Eyepieces (X) 10X10X10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Available Eyepieces 15X, 20X15X, 20X15X, 20X15X, 20X
    Min Standard Mag 12.5X12.5X12.5X12.5X
    Max Standard Mag 400X400X400X400X
    Included Objectives (Qty) 5555
    Objective Lens PlanPlanPlanPlan
    Included Objective Types BrightfieldBrightfieldBrightfieldBrightfield
    Objective 1 Description Plan Apochromatic 1.25XPlan Apochromatic 1.25XPlan Apochromatic 1.25XPlan Apochromatic 1.25X
    Objective 1 N.A. 0.040.040.040.04
    Objective 1 W.D. 3.7mm3.7mm3.7mm3.7mm
    Objective 2 Description Plan Semi-Apo 4XPlan Semi-Apo 4XPlan Semi-Apo 4XPlan Semi-Apo 4X
    Objective 2 N.A. 0.100.100.100.10
    Objective 2 W.D. 25.8mm25.8mm25.8mm25.8mm
    Objective 3 Description Plan Semi-Apo 10XPlan Semi-Apo 10XPlan Semi-Apo 10XPlan Semi-Apo 10X
    Objective 3 N.A. 0.250.250.250.25
    Objective 3 W.D. 10.7mm10.7mm10.7mm10.7mm
    Objective 4 Description Plan Semi-Apo 20XPlan Semi-Apo 20XPlan Semi-Apo 20XPlan Semi-Apo 20X
    Objective 4 N.A. 0.400.400.400.40
    Objective 4 W.D. 7.29mm7.29mm7.29mm7.29mm
    Objective 5 Description Plan Semi-Apo 40XPlan Semi-Apo 40XPlan Semi-Apo 40XPlan Semi-Apo 40X
    Objective 5 N.A. 0.650.650.650.65
    Objective 5 W.D. 0.5mm0.5mm0.5mm0.5mm
    Condenser
    Condenser Type Abbe BrightfieldAbbe BrightfieldAbbe BrightfieldAbbe Brightfield
    Condenser Features Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderIris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderIris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderIris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder
    Condenser N.A. 0.9 mm0.9 mm0.9 mm0.9 mm
    Filter Diameter 44 mm44 mm44 mm44 mm
    Illumination
    Illumination Type LEDLEDLEDLED
    Illumination Style TransmittedTransmittedTransmittedTransmitted
    Collector Type KohlerKohlerKohlerKohler
    Collector Features Field Diaphragm, Filter HolderField Diaphragm, Filter HolderField Diaphragm, Filter HolderField Diaphragm, Filter Holder
    Transmitted Light Type LEDLEDLEDLED
    Transmitted Light Specification LEDLEDLEDLED
    Transmitted Light Control VariableVariableVariableVariable
    Power Supply 110V-230V AC Auto Voltage Sensing110V-230V AC Auto Voltage Sensing110V-230V AC Auto Voltage Sensing110V-230V AC Auto Voltage Sensing
    Accessories
    Included Extras Dust CoverDust CoverDust CoverDust Cover
