Summary

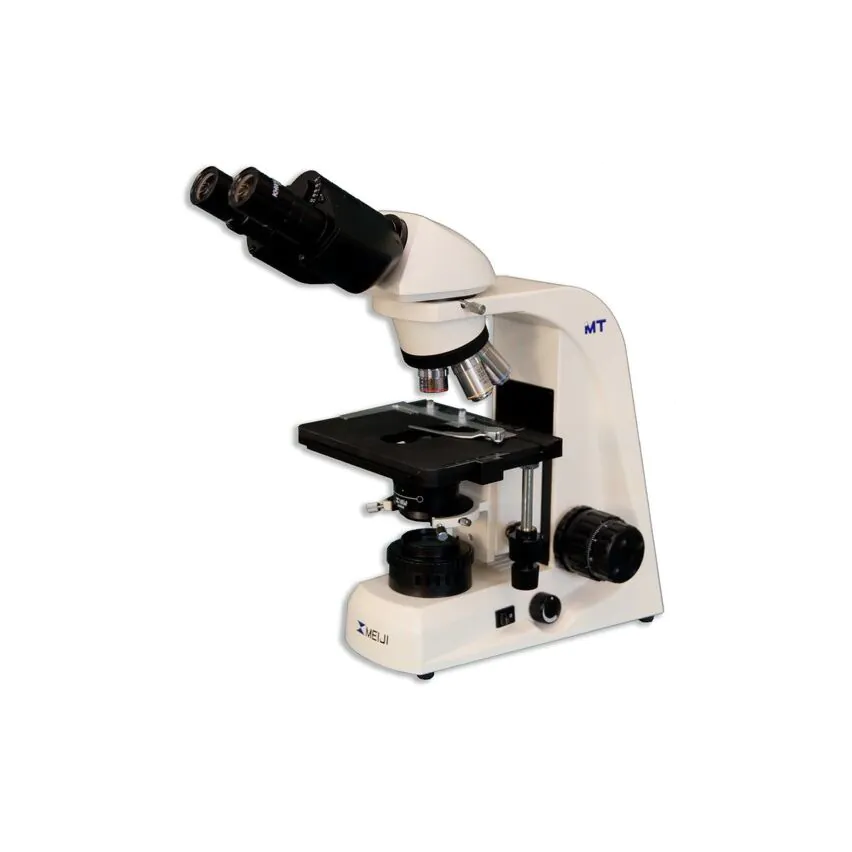

The new Meiji MT4200-V is an advanced, research-grade laboratory microscope, designed for the rigors of daily routine laboratory work by veterinary professionals. The Infinity Corrected Optical System (ICOS) includes five objective lenses set in a quintuple nosepiece and combines with standard Halogen or LED illumination to offer bright, crisp images. It is manufactured in Japan and comes with a Lifetime Limited Warranty.

Optics

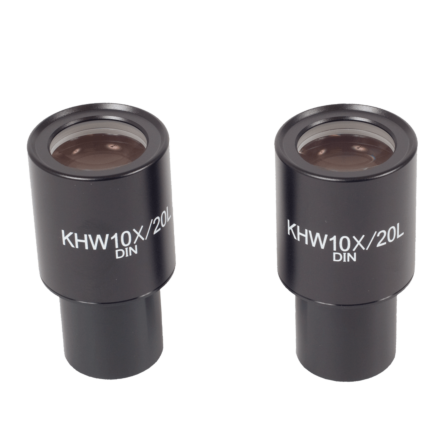

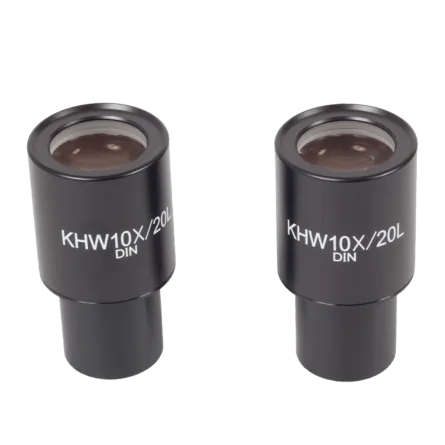

The microscope includes a Siedentopf-type binocular head with the oculars inclined at a comfortable 30 degrees of inclination for great viewing flexibility. The left eyetube has diopter settings for easy individual eye focusing. The interpupillary distance is adjustable between 53mm - 75mm. 10x Widefield High Eyepoint eyepieces (F.N. 20) are standard and come with a 21mm reticle mount.

A DIN Infinity Corrected Optical System (ICOS) includes five Plan brightfield objective lenses (Plan Achro 4x, 10x, 20x, s40x and s100x Oil) set in a ball-bearing mounted, quintuple nosepiece. The Achromatic Plan objectives significantly reduce chromatic and spherical aberration for clearer, more detailed images.

Stage & Focus

The standard right-handed flat top stage measures 170mm x 140mm with a 80mm(X) x 52mm(Y) range of movement, coaxial right-hand controls with drop-down positioning and a ceramic coating for durability.

Condenser & Illumination

Abbe 1.25 NA Condenser with built-in iris in a dovetail mount. Illumination is bright white LED or 30W Halogen.

Accessories

Manual, dust cover

MT4000 Series Video

• 	MT4200HV Binocular Veterinary Lab Microscope	MT4200LV Binocular Veterinary LED Lab Microscope	MT4300LV Trinocular Veterinary LED Lab Microscope	MT4300HV Trinocular Veterinary Lab Microscope
  General
  Brand	Meiji Techno	Meiji Techno	Meiji Techno	Meiji Techno
  SKU	MT4200HV	MT4200LV	MT4300LV	MT4300HV
  Warranty
  Notes
  Product Weight	17.6000	17.6000	17.6000	17.6000
  Product Length	390 mm	390 mm	390 mm	390 mm
  Product Width	210 mm	210 mm	210 mm	210 mm
  Product Height	410 mm	410 mm	410 mm	410 mm
  System
  System Type	Brightfield	Brightfield	Brightfield	Brightfield
  Optical Design	Infinity Corrected	Infinity Corrected	Infinity Corrected	Infinity Corrected
  Head
  Head Type	Binocular	Binocular	Trinocular	Trinocular
  Ocular Angle	30°	30°	30°	30°
  Diopter Adjustment	Single	Single	Single	Single
  Interpupillary Adjustment	Arc (Seidentopf)	Arc (Seidentopf)	Arc (Seidentopf)	Arc (Seidentopf)
  Interpupillary Adjustment Range	53 – 75 mm	53 – 75 mm	53 – 75 mm	53 – 75 mm
  View Orientation	Inverted View	Inverted View	Inverted View	Inverted View
  Ocular Tube Diameter	23 mm	23 mm	23 mm	23 mm
  Body
  Nosepiece Orientation	Reversed	Reversed	Reversed	Reversed
  Nosepiece Style	Quintuple (5)	Quintuple (5)	Quintuple (5)	Quintuple (5)
  Focus Controls	Coarse & Fine, Coaxial	Coarse & Fine, Coaxial	Coarse & Fine, Coaxial	Coarse & Fine, Coaxial
  Focus Mechanism	Rack & Pinion	Rack & Pinion	Rack & Pinion	Rack & Pinion
  Focus Control Location	Dual Ambidextrous	Dual Ambidextrous	Dual Ambidextrous	Dual Ambidextrous
  Focus Controls Graduated?	Yes	Yes	Yes	Yes
  Stage Type	Mechanical XY	Mechanical XY	Mechanical XY	Mechanical XY
  Stage Features	Ceramic Coated, Fingertip Controls, Slide Holder (spring-loaded)	Ceramic Coated, Fingertip Controls, Slide Holder (spring-loaded)	Ceramic Coated, Fingertip Controls, Slide Holder (spring-loaded)	Ceramic Coated, Fingertip Controls, Slide Holder (spring-loaded)
  Configuration
  Includes Eyepieces?	Yes	Yes	Yes	Yes
  Included Eyepiece Quantity	2	2	2	2
  Included Eyepieces (X)	10X	10X	10X	10X
  Eyepiece Style	SWF Super Widefield (FN 20mm)	SWF Super Widefield (FN 20mm)	SWF Super Widefield (FN 20mm)	SWF Super Widefield (FN 20mm)
  Min Standard Mag	40X	40X	40X	40X
  Max Standard Mag	1000X	1000X	1000X	1000X
  Included Objectives (Qty)	4	4	4	4
  Objective Lens	Plan	Plan	Plan	Plan
  Included Objective Types	Brightfield	Brightfield	Brightfield	Brightfield
  Condenser
  Condenser Type	Abbe Brightfield	Abbe Brightfield	Abbe Brightfield	Abbe Brightfield
  Condenser Features	Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder	Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder	Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder	Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder
  Condenser N.A.	1.25 mm	1.25 mm	1.25 mm	1.25 mm
  Filter Diameter	44 mm	44 mm	44 mm	44 mm
  Illumination
  Illumination Type	Halogen	LED	LED	Halogen
  Illumination Style	Transmitted	Transmitted	Transmitted	Transmitted
  Collector Type	Kohler	Kohler	Kohler	Kohler
  Collector Features	Field Diaphragm, Filter Holder	Field Diaphragm, Filter Holder	Field Diaphragm, Filter Holder	Field Diaphragm, Filter Holder
  Transmitted Light Type	Halogen	Halogen	LED	LED
  Transmitted Light Specification	30W	30W	LED	LED
  Transmitted Light Control	Variable	Variable	Variable	Variable
  Power Supply	110V-230V AC Auto Voltage Sensing	110V-230V AC Auto Voltage Sensing	110V-230V AC Auto Voltage Sensing	110V-230V AC Auto Voltage Sensing
  Accessories
  Included Extras	Dust Cover	Dust Cover	Dust Cover	Dust Cover
