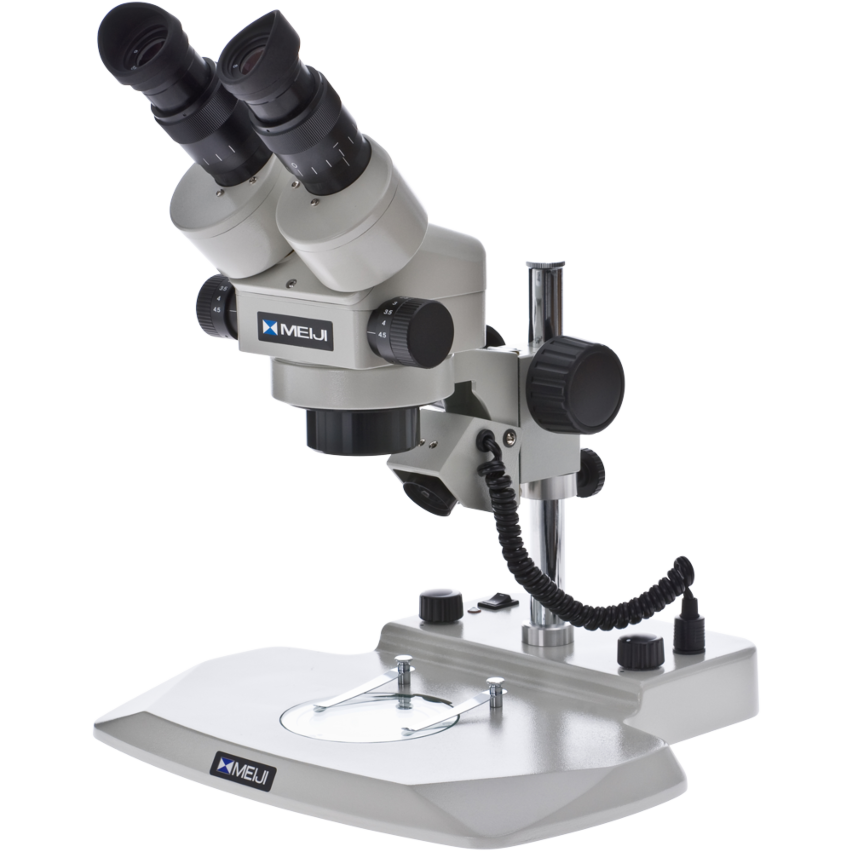

Meiji Techno EMZ5-PKL2 Zoom Stereo Microscope System

List Price: $2,450.00

As low as: $2,155.00

SKU: EMZ5-PKL2

Availability: In stock

  • 7x to 45x zoom range
  • Choice of eyepieces
  • Dual LED illumination
  • Ergonomic pole stand
  • Binocular or trinocular format
  • Optional click stop detents
  • Lifetime Limited Warranty
Select package options

Click on to learn more about the option * signifies required items

PKL-2 Pole Stand   $845.00
  • $10.00

Included in Bundle

Stand: PKL-2 Pole Stand

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji EMZ-5-PKL2 Zoom Stereo Microscope
  • Meiji EMZ-5-PKL2 Zoom Stereo Microscope illumination
  • Meiji EMZ-5-PKL2 Zoom Stereo Microscope zoom
  • Meiji EMZ-5-PKL2 Zoom Stereo Microscope Stand
  • Meiji EMZ-5-PKL2 Zoom Stereo Microscope Trinocular Head
Description

Summary

The Meiji EMZ5-PKL2 is a combination of Meiji's best-selling EMZ-5 zoom stereo microscope body and the popular PKL-2 pole stand with integrated LED illumination. The microscope offers 7x-45x zoom magnification with 10x eyepieces although you have a choice of eyepieces. Limited Lifetime Warranty.

Microscope Head

The EMZ-5 stereo head is by far the most popular Meiji stereo microscope head. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45° and includes interpupillary adjustment of 54mm-75mm. There are dual +/-5 diopters for convenient individual eye focusing. The head rotates through 360° for flexible viewing positions.

Available in binocular or trinocular format and also with click stop detents for precise levels of magnification. The trinocular port directs light to the right eyetube and the trinocular tube simultaneously. Please note that a trinocular adapter is required to fit your camera.

Stand

The Model PKL-2 pole stand is one of our favorites. Well-designed with dual LED illumination, it is comfortable to use with beveled corners and a pleasing design. The transmitted light uses an extremely bright white LED array with integrated diffusion plate providing excellent dispersion of light without hot spots caused by LED elements. The incident illuminators on the PKL-2 are powerful LED's on an adjustable pivot providing a luminescent type light with a brighter color temperature than halogen. The LED beam is a perfectly round focused spot which can be adjusted for height and specimen. Universal voltage sensor 110V-220V.

Optional accessories include analyzer/polarizer for transmitted light pol work, white/black stage plate, 4" pole extension, and mechanical stages. Base Dimensions: 330mm (12.99”) wide x 280mm (11”) deep.
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • PKL-2 Pole Stand
    SKU PKL-2
    Stand
    Stand Class Pedestal
    Stand Type Pole
    Stage Plate Clear Glass, Frosted Glass
    Post Diameter 20 mm
    If FB Mounts Direct
    Focus Block Mount Diameter 20 mm
    If FB Integrated
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Compatibility
    Head Ring Mount Diameter 84 mm

  • MA501 - 5X Super Widefield Paired Eyepieces

    MA718 - 7.5X Super Widefield Paired Eyepieces

    MA502 - 10X Super Widefield Paired Eyepieces

    MA520 - 12.5x Super Widefield Paired Eyepieces

    MA503 - 15X Super Widefield Paired Eyepieces

    MA504 - 20X Super Widefield Paired Eyepieces

    MA521 - 30X Super Widefield Paired Eyepieces

    MA519 - 10x Focusing Eyepiece (single)
    SKU MA501MA718MA502MA520MA503MA504MA521MA519
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes 30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Compatible With EM*EM*EM*EM*EM*EM*EM*EM*
    Eyepiece Magnification 5x7.5x10x12.5x15x20x30x10x

  • MA600 Stereo Eyeshields (Pair)
    SKU MA600
Magnification Chart

Eyepiece

Standard Configuration

Meiji EMZ 5

Auxiliary Barlow Lens

0.3X

0.5X

0.75X

1.5X

Working distance 93mm

Working distance 251mm

Working distance 148mm

Working distance 97mm

Working distance 49mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

 10X

7X-45X

32.8 ~ 5.1

2.1X-13.5X

109 ~ 17

3.5X-22.5X

65.7-9.8

5.2X-33.7X 43.8 ~ 6.8 10.5X-67.5X 21.9 ~ 3.4

 15X

10.5X-67.5X

22 ~ 3.4

3.1X-20.2X

73 ~ 11.4

4.4X-28X

44 ~ 6.8 7.9X-50.6X 29.3 ~ 4.5 13.1X-84.4X 14.6 ~ 2.2

 20X

14X-90X

16.4 ~ 2.5

4.2X-27X

54.7 ~ 8.5

5.2X-33.4X

32.8 ~ 5.1 10.5X-67.5X 21.9 ~ 3.4 15.7X-101.2X 10.9 ~ 1.7

 30X

 21X-135X 11 ~ 1.7 36.6X-5.7X 36.6 ~ 5.7

10.5X-67.5X

22 ~ 3.4 15.8X-101.2X 14.6 ~ 2.2 31.5X-202.5X 7.3 ~ 1.1
