Meiji Techno PKL-1/310 Pole Stand for Microsurgical Series

List Price: $975.00

Our Price: $850.00

$ 850.00

SKU: PKL-1/310

Availability: In stock

  • Ergonomic pole stand
  • Integrated 5W incident LED illumination
  • Coarse focusing holder
  • Rack and pinion movement with safety clutch
  • Lifetime Limited Warranty
Learn More
Add to cart

Add to Wishlist

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji PKL-1 Base Main Image

You May Also Like:

Description

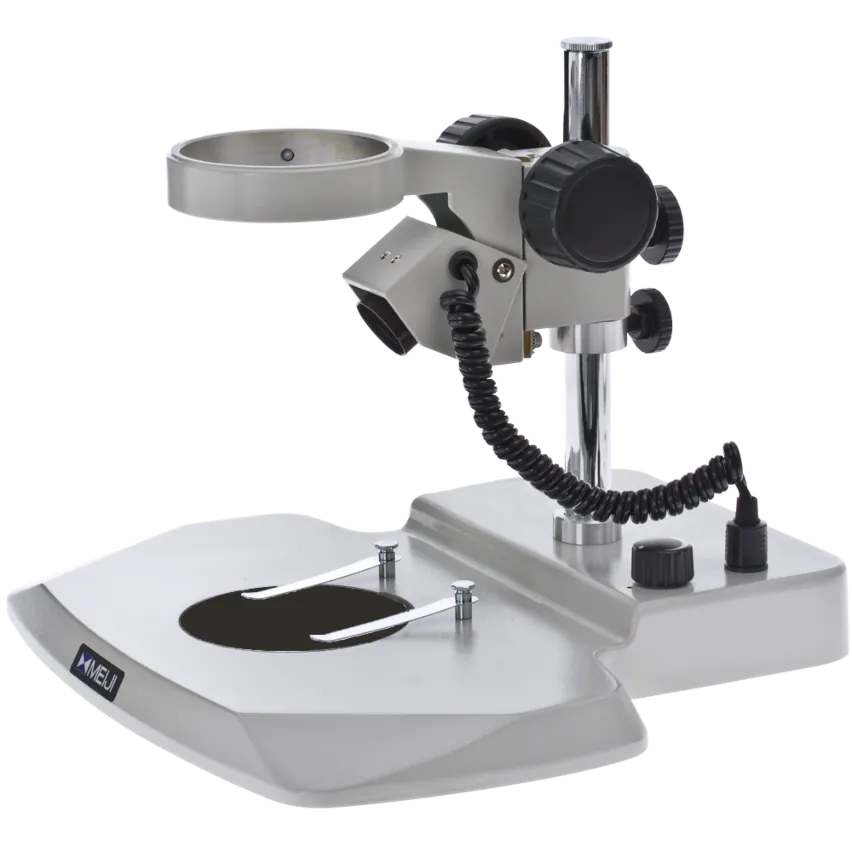

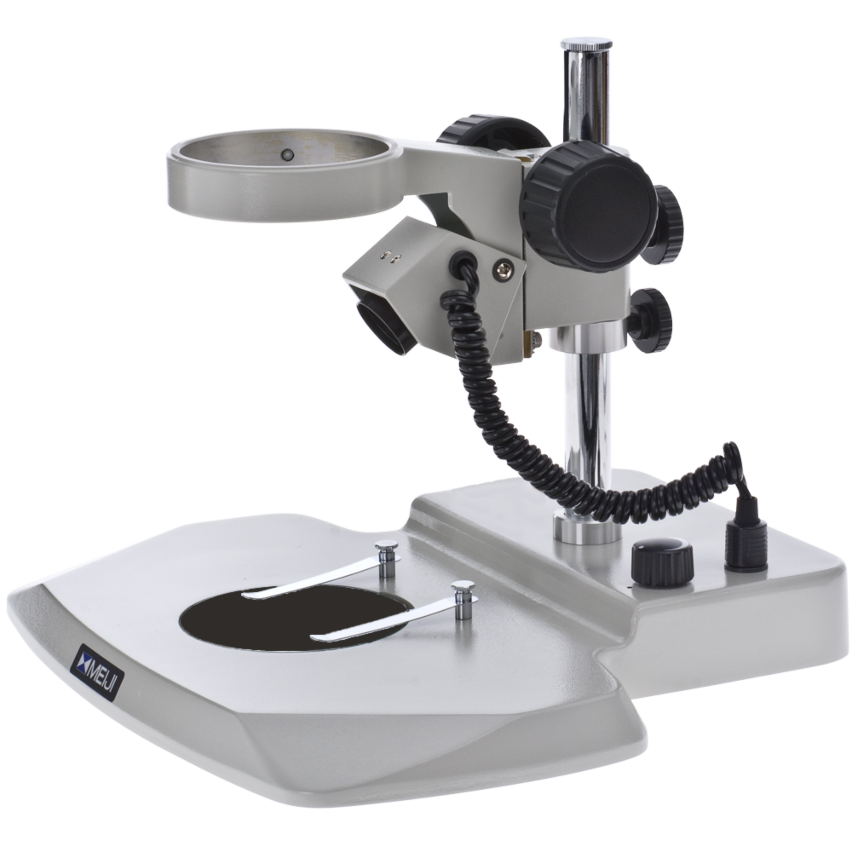

The PKL-1/310 is a versatile and effective 20mm diameter pole stand which includes an F-size focus block and integral 5W LED incident illumination mounted on a wide ergonomic base. The focusing block features dual coarse focus knobs, rack and pinion gearing, a safety clutch with tension adjustment and 55mm of travel. Base dimensions: 330mm(12.99”) wide x 280mm(11”) deep. 12.2” pillar.

0 0
Specifications

PKL-1/310 Pole Stand for Microsurgical Series
General
Brand Meiji Techno
SKU PKL-1/310
Short Description
  • Ergonomic pole stand
  • Integrated 5W incident LED illumination
  • Coarse focusing holder
  • Rack and pinion movement with safety clutch
  • Lifetime Limited Warranty
Stand
Stand Class Pedestal
Stand Type Pole
Stage Plate Black/White Contrast Plate
Post Diameter 20 mm
If FB Mounts Direct
Focus Block Mount Diameter 20 mm
If FB Integrated
Focus Controls Coarse
Focus Mechanism Rack & Pinion
Head Ring Mount Diameter 84 mm
Product Manuals
  • Meiji PKL Series Stereo Microscope Manual: Download PDF [231k]
