Meiji Techno PKL1 Pole Stand

List Price: $800.00

Our Price: $699.00

$ 699.00

SKU: PKL-1

Availability: In stock

  • Ergonomic pole stand
  • Integrated 5W incident LED illumination
  • Coarse focusing holder
  • Rack and pinion movement with safety clutch
  • Lifetime Limited Warranty

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

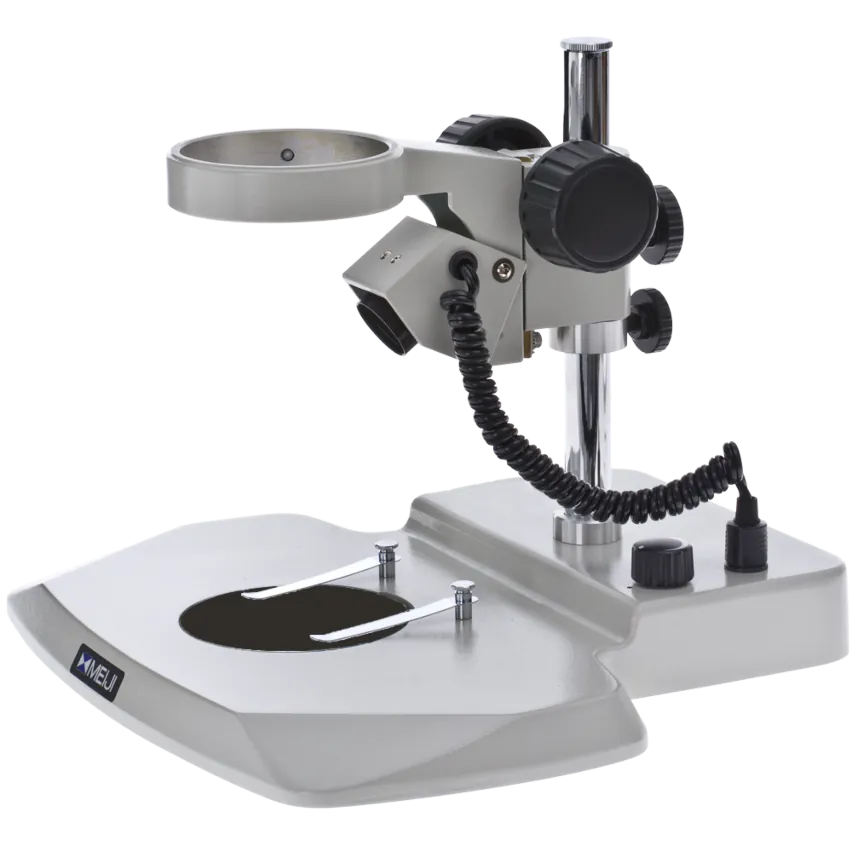

  • Meiji PKL-1 Base Main Image
Description

The PKL-1 is a versatile and effective 20mm diameter pole stand which includes an F-size focus block and integral 5W LED incident illumination mounted on a wide ergonomic base. The focusing block features dual coarse focus knobs, rack and pinion gearing, a safety clutch with tension adjustment and 55mm of travel.

0 0
Specifications

PKL1 Pole Stand
General
Brand Meiji Techno
SKU PKL-1
Short Description
  • Ergonomic pole stand
  • Integrated 5W incident LED illumination
  • Coarse focusing holder
  • Rack and pinion movement with safety clutch
  • Lifetime Limited Warranty
Feed - Title Meiji Techno PKL1 Pole Stand
Feed - Description The EMZ13-P combines Meiji's higher magnification 10x-70x (10x eyepieces), zoom stereo microscope head with the plain P stand and optional illumination. Choose from a range of eyepieces. Binocular or trinocular formats. Lifetime Limited warranty.Microscope Head The EMZ-13 Series stereo heads offers a greater zoom magnification range than other EMZ microscope heads. The parfocal zoom range is 1.0x-7.0x for 10x-70x magnification with 10x eyepieces. As a result, the working distance is marginally lower than other heads at 90mm with a field of view range from 23mm-3.2mm with 10x eyepieces. An optional auxiliary barlow lens can increase the working distance to a maximum of 230mm. The head is inclined 45
Feed - Custom Label 1 500-1000
Stand
Stand Class Pedestal
Stand Type Pole
Stage Plate Black/White Contrast Plate
Post Diameter 20 mm
If FB Mounts Direct
Focus Block Mount Diameter 20 mm
If FB Integrated
Focus Controls Coarse
Focus Mechanism Rack & Pinion
Head Ring Mount Diameter 84 mm
Product Manuals
  • Meiji PKL Series Stereo Microscope Manual: Download PDF [231k]
