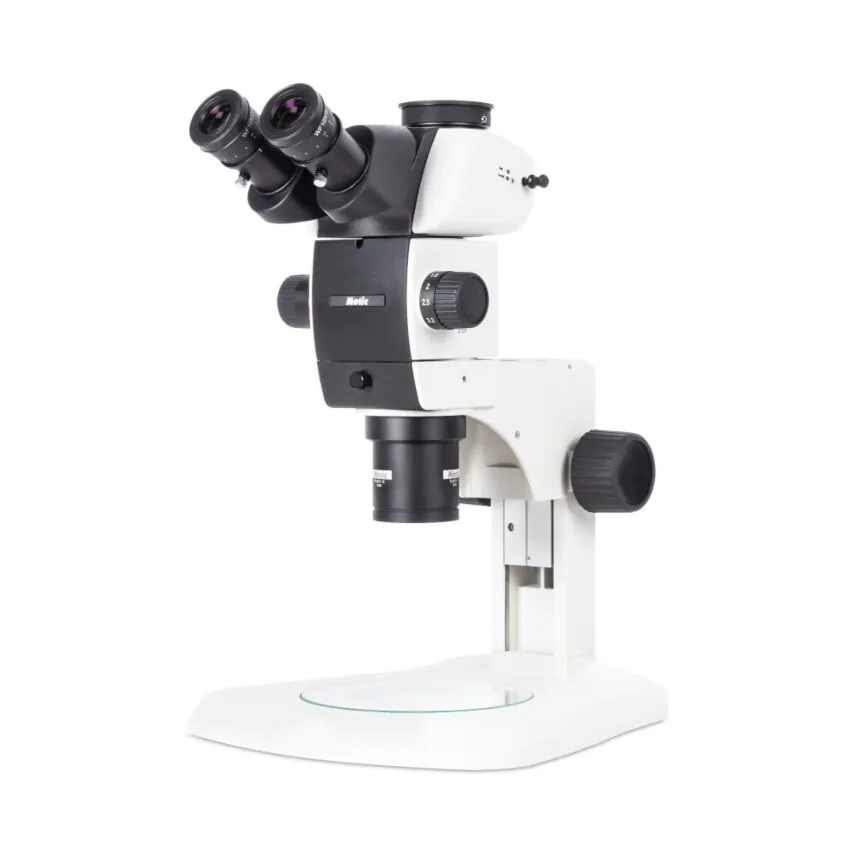

Motic SM7TR-P APO1X Trinocular Microscope with Apochromatic Objective, No Illumination
- Superior Optical Performance: Features a high-resolution Galilean optical system that delivers true color reproduction and minimal distortion for precise analysis.
- Plan Apochromat 1X Objective: Equipped with a premium APO 1X objective and an 81mm working distance, ideal for detailed inspection of opaque samples.
- Versatile Application: Designed to meet the rigorous demands of biological research, medical diagnostics, and industrial quality control.
- Flexible Lighting & Stability: Includes a robust plain stand designed for stability, with the flexibility to integrate various external light sources as needed.
Motic SM7TR-P APO1X Trinocular Stereo Microscope
Professional Galilean Infinity Optical System with Plan Apochromat Precision
High-Resolution Spatial Information for Industry & Science
The Motic SM7TR-P APO1X is a high-performance trinocular stereomicroscope designed for users who demand superior color reproduction and minimal distortion. Built on a Common Main Objective (CMO) architecture, this system utilizes a Galilean Infinity Optical Design to provide clear, three-dimensional spatial information crucial for biological research, medical diagnostics, and industrial quality control.
This specific configuration is optimized for opaque samples. It features a streamlined plain fixed-arm stand, providing a stable platform for inspecting electronic components, geological samples, or opaque biological tissues. The inclusion of a Plan Apochromat 1X objective ensures that images are chromatically corrected across the entire field of view.
Core Advantages of the SM7 Series
- 7:1 Zoom Ratio: Offers a flexible magnification range from 0.8X to 5.6X with 10-step click stops for repeatable measurements.
- Plan Apochromat Optics: Provides true-to-life color rendering and high-resolution imaging by correcting chromatic and spherical aberrations.
- Versatile Trinocular Head: Features a light split of 100:0 / 20:80, allowing for simultaneous observation and high-quality digital imaging.
- Ergonomic 30º Inclination: Designed for long-term comfort, reducing neck and eye strain during extended lab sessions.
- Generous Working Distance: An 81mm WD provides ample room for tool manipulation and sample handling.
Detailed Specifications
| Feature | Specification |
|---|---|
| Optical System | Galilean Infinity Optical Design (CMO) |
| Head Type | Trinocular, 30º inclined, 360º swiveling |
| Magnification Range | 8X – 56X (with 10X eyepieces) |
| Eyepieces | Widefield WF10X/22mm (diopter adjustable +5/-8) |
| Objective | Plan Apochromat 1X (Included) |
| Working Distance | 81mm |
| Focusing | Coarse system with tension adjustment; 120mm stroke |
| Stand | Fixed-arm plain stand with 160mm Black/White stage plate |
Target Applications
The SM7TR-P APO1X is a versatile workhorse across several high-precision fields:
- Industrial Quality Control: Inspection of PCB solder joints, micro-components, and material finishing.
- Life Sciences: Dissection and observation of large biological specimens.
- Mineralogy/Forensics: Detailed analysis of opaque surfaces, crystals, and trace evidence.
Optimize Your Documentation Workflow
Pair the SM7TR-P with Motic’s digital cameras for seamless image capture and measurement.
Need a customized light source for your opaque samples?
| Brand | Motic |
|---|---|
| Recommended For | 0 |
| Optical Design | Greenough Converged |
| Trinocular Tube Focusable? | No |
| Zoom Indicator Graduations | No |
| Parfocal | No |
| Includes Eyepieces? | No |
| Includes Barlow? | No |
| Includes Eyecups? | No |
| Reticles Available? | No |
| Case Included? | No |
