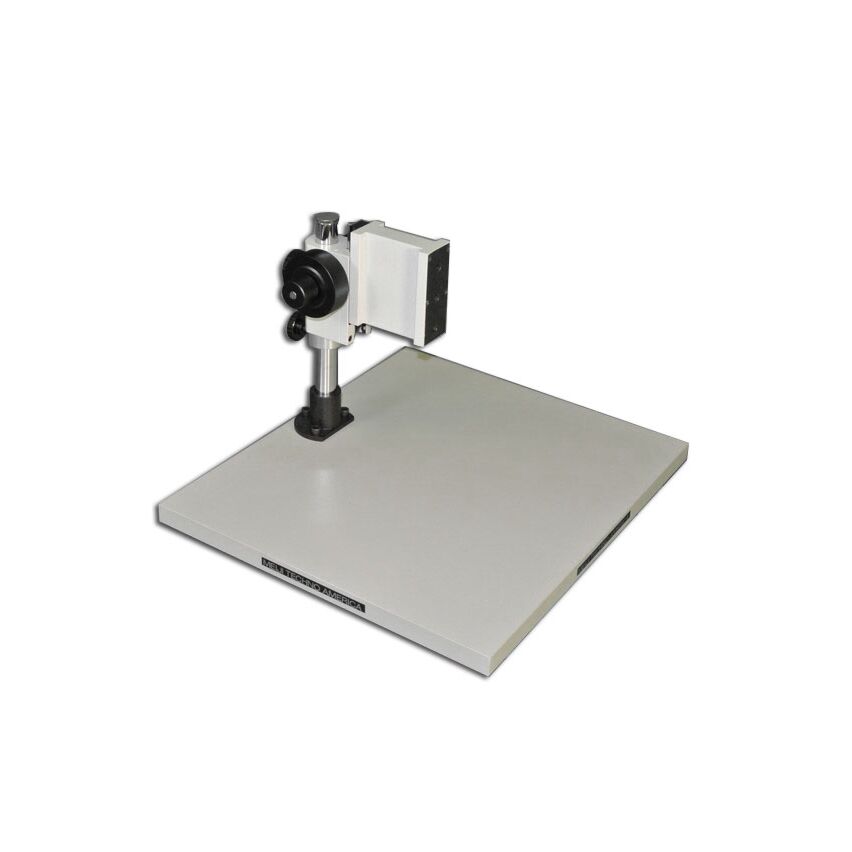

Meiji Techno VM-KBL Pole Stand

SKU:

VM-KBL

In stock

You pay: $930.00

Free Shipping,

30 Day Money Back Guarantee

Precision Control: Features a newly designed pole-type stand equipped with both coarse and fine focus blocks for detailed adjustments.
Versatile Imaging: Utilizes "C" mount compatibility to connect infinity-corrected objectives directly to cameras for high-magnification video microscopy.
Robust Build & Warranty: Includes a 55mm Z-axis travel, reversible stage plate, and is backed by Meiji Techno’s Limited Lifetime Warranty.
Standardized Compatibility: Maintains a 45mm parfocal distance and accepts standard DIN 20.1mm threaded objectives for easy integration.

Customer Support

Talk to one of our experts now!

Email Call

Product Details

VM & VM-LED Series: High-Resolution Video Microscopes

The VM & VM-LED Series are precision-engineered high-resolution video microscopes designed for the rigorous demands of industrial inspection. Whether you are analyzing small electronic components, medical devices, or fiber optics, these systems provide the clarity and magnification required for precise quality control.

Ideal for factory automation and machine vision systems, the VM Series integrates seamlessly into existing workflows, connecting infinity-corrected objectives directly to "C" Mount cameras for a streamlined imaging solution.

Advanced Features for Precision Imaging

Superior Magnification: Achieve on-screen video magnification ranging from 40X to over 5500X.
Versatile Optics: Compatible with a wide range of objectives (2.5X to 100X) and infinity-corrected objectives with RMS thread.
Flexible Configuration: Choose from a single objective port or upgrade to triple/quadruple nosepieces for quick magnification shifts.
Industrial Durability: Housed in rugged aluminum for long-term reliability in manufacturing environments.
Optimized Illumination: Features fiber optic coaxial “cool light” systems with field iris and drop-in filter support to prevent heat damage to sensitive samples.
Compact & Portable: Small footprint pole stands with coarse/fine focus; easily adaptable for field use with self-powered cameras.

Industrial Applications & Integration

The VM Series is the go-to solution for inspecting wave-guides, electro-mechanical assemblies, seals, catheters, and micro-electronics.

Seamless Machine Vision Integration

Designed for easy mounting, the units can be fixed to flat surfaces or the dedicated VM focus block. Technical Specifications for Integration:

Feature	Specification
Mounting Interface	Four M4 X M6 threaded holes (30mm x 40mm spacing)
Parfocal Distance	45mm
Objective Compatibility	Din Standard 0.7965” (20.1mm) / RMS Thread
Camera Mount	Standard "C" Mount

Ready to Upgrade Your Inspection Workflow?

Contact our specialists today to configure the perfect VM Series microscope for your specific application.

Request a Quote

Physical Dimensions & Stand Specifications

Main Body Size	160mm (W) x 240mm (L) x 280mm (H)
Pillar & Mounting	258mm total height; 20mm diameter stainless steel support pillar
Base Footprint	Expansive 380mm x 330mm surface area for stable operation
Stage Features	94.5mm reversible contrast plate (Black/White) with 75mm stainless steel clips

Standard Components Included

Precision Focus Control: VM-FB Coarse and Fine focus block tailored for the VM Series.
Structural Support: Stainless steel pillar assembly including threaded cap and safety collar with locking screw.
Work Surface Accessories: Reversible high-contrast stage plate and a pair of 4mm-pin specimen clips.
Stability: Factory-installed non-slip rubber feet for vibration reduction.

Manufacturing & Shipping Details

Origin: Proudly 100% Manufactured in Japan
Protection: Backed by a Limited Lifetime Warranty
Shipping Weight: 11 lbs (Boxed dimensions: 17" x 14" x 9")
