Meiji Techno

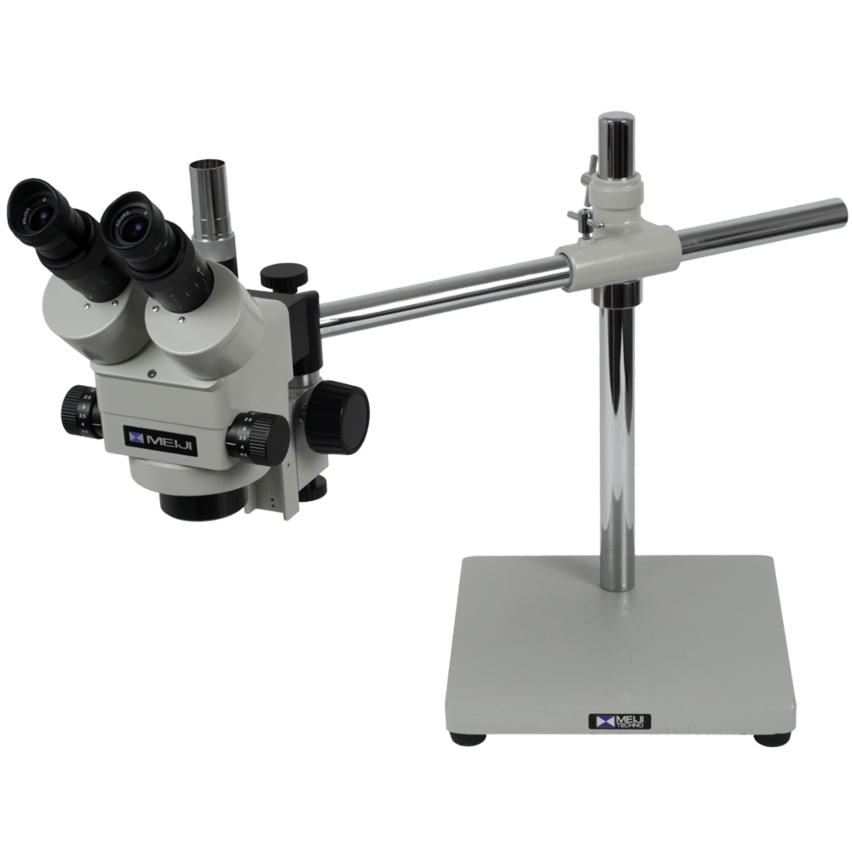

SMT-8TR Fiber Optic Stereo Microscope Inspection Station
In stock
- 7X-45X zoom magnification
- Trinocular microscope head, standard WD = 104mm
- Added 0.5X Barlow Lens, WD = 174mm
- Paired 10X and 20X wide field eyepieces
- S-4100 universal boom stand
- Optional Fiber Optic 150W annular ring illumination system
Summary
The Meiji SMT-8TR stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope body, the S-4100 boom inspection stand, optional FT192 fiber optic annular ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.
Microscope
The EMZ-8TR stereo trinocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 104mm. The head is inclined 45° and includes interpupillary adjustment of 54mm-75mm. There are dual +/-5 diopters for convenient individual eye focusing. The head rotates through 360° for flexible viewing positions and, with the beam splitter engaged, allows observation from all three optical ports at the same time.
Two sets of wide field eyepieces, the MA502 10X and MA504 20X, are included for maximum versatility.
The S-4100 boom stand is solidly built and offers fully adjustable set screws to provide unlimited mounting flexibility.
All Meiji microscopes are manufactured under the strict guidelines established under ISO 9001:2000 Standards and are sold with Meiji Techno's limited lifetime warranty.
Brand | Meiji Techno |
---|---|
Recommended For | 0 |
