Summary
The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.
Microscope
The EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45° and includes interpupillary adjustment of 54mm-75mm. There are dual +/-5 diopters for convenient individual eye focusing. The head rotates through 360° for flexible viewing positions.
Two sets of wide field eyepieces, the MA502 10X and MA504 20X, are included for maximum versatility.

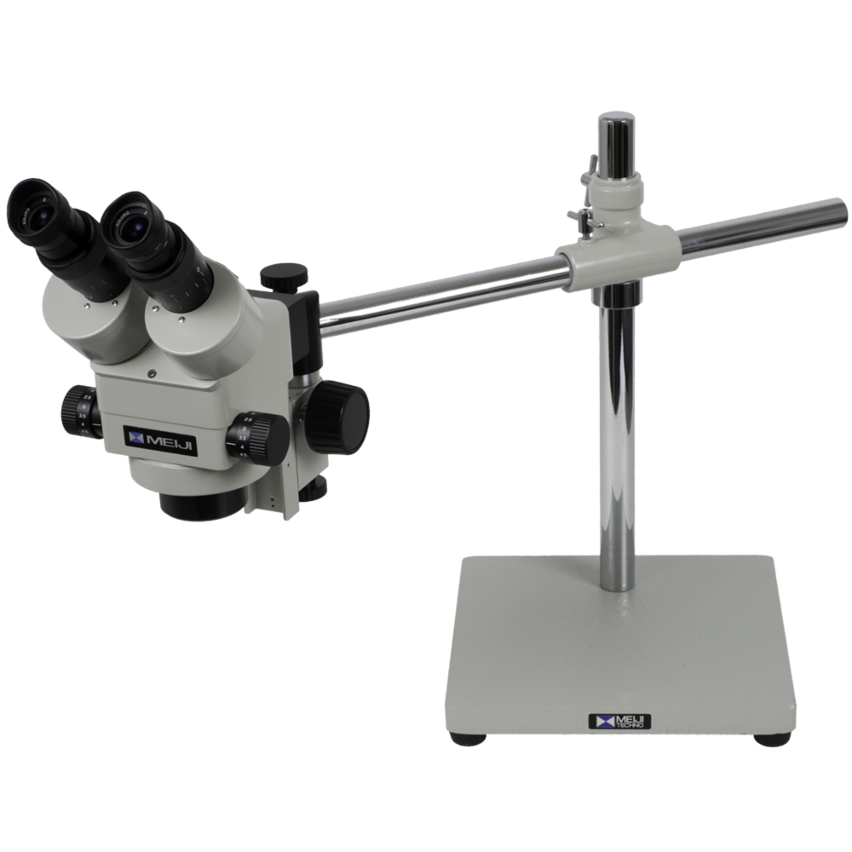

The S-4100 boom stand is solidly built and offers fully adjustable set screws to provide unlimited mounting flexibility. The base platform offers a convenient base for an optional f iber optic illuminator.
All Meiji microscopes are manufactured under the strict guidelines established under ISO 9001:2000 Standards and are sold with Meiji Techno's limited lifetime warranty.
Brand | Meiji Techno |
---|---|
Recommended For | 0 |
