Omano OM99-V7 Engravers' Special 6.5X-45X Zoom Stereo Microscope

$ 1086.00

List Price: $1,973.00

Starting at: $1,086.00

SKU: OM99-V7E

Availability: In stock

  • Configured for Engravers with head rest and barlow lens
  • Premium 6.5x-45x stereo microscope head
  • Super WF10x eyepieces
  • Articulating V7 boom stand
  • Removable center arm for greater stability
  • Included ring light
  • Finest Omano optics
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

OMHB30 Hanging Bar   $25.00
Head Rest for OM99-V7 Engraver's Special   $89.00
  • $85.00
  • $85.00
  • $85.00
  • $55.00
  • $55.00
  • $55.00
  • $120.00
  • $120.00
  • $120.00

Included in Bundle

Hanging Bar: OMHB30 Hanging Bar

Head Rest: Head Rest for OM99-V7 Engraver's Special

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

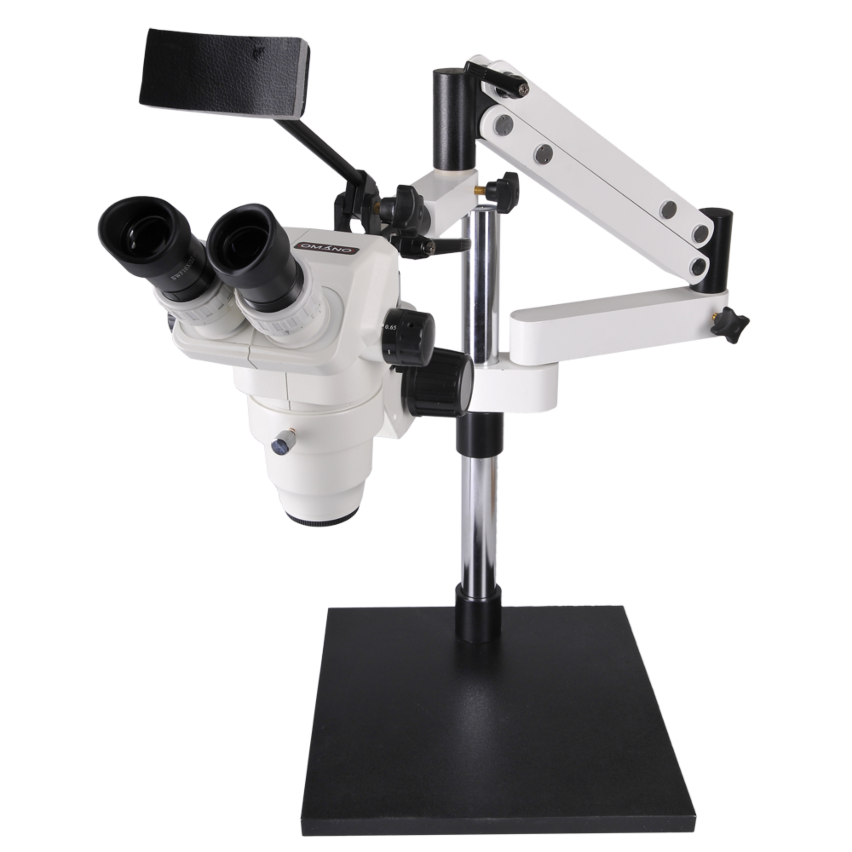

  • Omano OM99-V7 Engravers Boom Stereo Microscope
  • Omano OM99 Stereo microscope Head
  • Omano OM99-V7 Engravers Boom Stereo Microscope detailing
  • Omano OM99-V7 Engravers Boom Stereo Microscope headrest
Description

Summary

The OM99-V7 Engravers Special pairs our best Omano OM99 microscope head with the articulating V7 boom stand and custom head rest for the ultimate stereo microscope engraving system. The zoom magnification range is 6.5x-45x with Super WF10x eyepieces and eyecups. A light ring is also included. Lifetime Limited Warranty.

Optics

The Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces make for a terrific viewing experience with rubber eyecups included.

Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. Working distance is 31/4" and more than doubles to over 6" with the addition of a0.5x auxiliary barlow lens. Optional barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x, and optionally available click-stop zoom detents offer precise, repetitive observations.

Focus & illumination

Rack and pinion focus includes dual right and left hand controls for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED or other light when adding the microscope to your shopping cart.

Stand

The V7 articulating boom base weighs 57lbs yet folds into a 13 x 13" space when not in use. Well-balanced, stable with smooth, controlled movement, the arm's first link can be removed to achieve even greater stability. The pole stands 21" high and the spring-powered articulating arm has an effective horizontal extension of 35". A 76mm focus block is included.

As with most Omano boom stands, a hanging bar is included that enables angled viewing positions. The hanging bar bracket is spring-loaded so that the lever can be moved out of the way without having to release the pre-set position of the microscope head. Also available with a U-clamp for attachment to a bench top. The clamp fits benches up to 2.5" thick. Also available with a U-clamp for attachment to a bench top. The clamp fits benches up to 2.5" thick.

Accessories

Ring light, eyecups, headrest (binocular only), 0.5x barlow lens, dust cover, manual.

Omano Stereo Boom Stand Comparison

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • V7 Articulating Boom Stand

    V7U U-Clamp Articulating Boom Stand
    General
    Brand OmanoOmano
    SKU V7V7U
    Warranty Lifetime Limited WarrantyLifetime Limited Warranty
    Stand
    Stand Class BoomBoom
    Stand Type Articulated BoomArticulated Boom
    Stand Features ArticulatedArticulated
    Base Width 330 mm330 mm
    Base Depth 330 mm330 mm
    Post Height 464 mm464 mm
    Post Diameter 38 mm38 mm
    View Center to Post Distance 673 mm673 mm
    Physical Construction Solid MetalSolid Metal
    Coating Type (Stand) Durable PowdercoatDurable Powdercoat
    If HB Required
    Requires Separate Hanging Bar? YesYes
    Hanging Bar Style ArticulableArticulable
    If FB Mounts Direct
    Focus Block Mount Diameter 5/8in Pin5/8in Pin

  • OMHB30 Hanging Bar
    General
    Brand Omano
    SKU OMHB30
    Feed - Title Omano OMHB30 Hanging Bar
    Feed - Description Omano OMHB30 Hanging Bar
    Feed - Custom Label 1 <100
    If HB Required
    Hanging Bar Style Articulable
    If FB Mounts Direct
    Focus Block Mount Diameter 30 mm

  • Head Rest for OM99-V7 Engraver's Special
    General
    Brand Omano
    SKU OMHR-99
    Notes Does not fit Trinocular
    Feed - Title Omano Head Rest for OM99-V7 Engraver's Special
    Feed - Description The OM99-V7 Engravers Special pairs our best Omano OM99 microscope head with the articulating V7 boom stand and custom head rest for the ultimate stereo microscope engraving system. The zoom magnification range is 6.5x-45x with Super WF10x eyepieces and eyecups. A light ring is also included. Lifetime Limited Warranty.OpticsThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces make for a terrific viewing experience with rubber eyecups included. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. Working distance is 31/4" and more than doubles to over 6" with the addition of a0.5x auxiliary barlow lens. Optional barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x, and optionally available click-stop zoom detents offer precise, repetitive observations.Focus & illuminationRack and pinion focus includes dual right and left hand controls for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED or other light when adding the microscope to your shopping cart.StandThe V7 articulating boom base weighs 57lbs yet folds into a 13 x 13" space when not in use. Well-balanced, stable with smooth, controlled movement, the arm's first link can be removed to achieve even greater stability. The pole stands 21" high and the spring-powered articulating arm has an effective horizontal extension of 35". A 76mm focus block is included.As with most Omano boom stands, a hanging bar is included that enables angled viewing positions. The hanging bar bracket is spring-loaded so that the lever can be moved out of the way without having to release the pre-set position of the microscope head. Also available with a U-clamp for attachment to a bench top. The clamp fits benches up to 2.5" thick. Also available with a U-clamp for attachment to a bench top. The clamp fits benches up to 2.5" thick.AccessoriesRing light, eyecups, headrest (binocular only), 0.5x barlow lens, dust cover, manual.Omano Stereo Boom Stand Comparison
    Feed - Custom Label 1 <100
    Compatible With OMV

  • 80 LED Ring Light, Variable Intensity

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section
    General
    Brand Omano
    SKU OMLED-80AOMLED-64AOMLED-144A
    Warranty 1 year
    Product Weight 1lb
    Backorder ETA Jun 6, 2018Jun 29, 2018
    Feed - Title Omano 80 LED Ring Light, Variable Intensity64 LED Ring Light, Variable Intensity by Section144 LED Ring Light, Variable Intensity by Section
    Feed - Description The new KoPa AIR camera offers both WiFi and USB live image output with up to 5.0 megapixel USB resolution, and live (40 FPS) streaming WiFi at 1280 x 960 resolution. The camera has a full suite of auto and manual controls in the USB software as well as the free, downloadable KoPa Vision App. The camera works well in USB mode, and really excels in its WiFi capability.Controls & OperationOn-camera control consists of a switch on the back (Off / USB / WiFi) which places the unit into USB or WiFi mode. After downloading the App, simply connect your mobile device to the Kopa network in the WiFi settings on your device.USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. The refresh rate ranges from 15fps at 2592 x 1944 (maximum resolution) to 40fps at 1280 x 960.The camera features a standard C-mount interface to fit any microscope with a C-mount adapter. In addition, the camera has a tripod mount on the base, allowing for use as a stand-alone imaging device (with a C-mount standard macro or zoom lens fitted). As a major upgrade over the C500W, the KoPa AIR camera also features a 5000mAh lithium Ion battery, capable of operating 8 hours on a full charge.Kopa Cam SoftwareThe software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. The App has simple touch screen buttons with both still and video capability as in USB mode. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. IlluminationWe offer our standard array of LED ring lights (OMLED-80A shown) or a high quality 4.5W LED ring light or a coaxial 3W LED spotlight. The included ring light has 80 LEDs with an auto-switching 90-264V power supply, 13000 Lux and 6400k color temperature. PLEASE NOTE that when ordering the coaxial light option, you will also need the coaxial adapter.Camera AccessoriesWiFi camera, 0.5X C-mount adapter, 30.0mm & 30.5mm collars, USB cable, software CD, padded storage case. Camera dimensions: 60mm diameter, 70mm height, 0.41 Lbs. Case dimensions: 9" wide, 8" deep, 6" tall. weight - 2.0 Lbs.Microscope AccessoriesAccessories include the Omano OM99-T Trinocular Microscope, 80 LED Ring illuminator, focus block, 0.5X C-mount adapter, V3 stand. details: 20 x 13 x 10", 12 Lb.The new KoPa AIR camera offers both WiFi and USB live image output with up to 5.0 megapixel USB resolution, and live (40 FPS) streaming WiFi at 1280 x 960 resolution. The camera has a full suite of auto and manual controls in the USB software as well as the free, downloadable KoPa Vision App. The camera works well in USB mode, and really excels in its WiFi capability.Controls & OperationOn-camera control consists of a switch on the back (Off / USB / WiFi) which places the unit into USB or WiFi mode. After downloading the App, simply connect your mobile device to the Kopa network in the WiFi settings on your device.USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. The refresh rate ranges from 15fps at 2592 x 1944 (maximum resolution) to 40fps at 1280 x 960.The camera features a standard C-mount interface to fit any microscope with a C-mount adapter. In addition, the camera has a tripod mount on the base, allowing for use as a stand-alone imaging device (with a C-mount standard macro or zoom lens fitted). As a major upgrade over the C500W, the KoPa AIR camera also features a 5000mAh lithium Ion battery, capable of operating 8 hours on a full charge.Kopa Cam SoftwareThe software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. The App has simple touch screen buttons with both still and video capability as in USB mode. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. IlluminationWe offer our standard array of LED ring lights (OMLED-80A shown) or a high quality 4.5W LED ring light or a coaxial 3W LED spotlight. The included ring light has 80 LEDs with an auto-switching 90-264V power supply, 13000 Lux and 6400k color temperature. PLEASE NOTE that when ordering the coaxial light option, you will also need the coaxial adapter.Camera AccessoriesWiFi camera, 0.5X C-mount adapter, 30.0mm & 30.5mm collars, USB cable, software CD, padded storage case. Camera dimensions: 60mm diameter, 70mm height, 0.41 Lbs. Case dimensions: 9" wide, 8" deep, 6" tall. weight - 2.0 Lbs.Microscope AccessoriesAccessories include the Omano OM99-T Trinocular Microscope, 80 LED Ring illuminator, focus block, 0.5X C-mount adapter, V3 stand. details: 20 x 13 x 10", 12 Lb.The new KoPa AIR camera offers both WiFi and USB live image output with up to 5.0 megapixel USB resolution, and live (40 FPS) streaming WiFi at 1280 x 960 resolution. The camera has a full suite of auto and manual controls in the USB software as well as the free, downloadable KoPa Vision App. The camera works well in USB mode, and really excels in its WiFi capability.Controls & OperationOn-camera control consists of a switch on the back (Off / USB / WiFi) which places the unit into USB or WiFi mode. After downloading the App, simply connect your mobile device to the Kopa network in the WiFi settings on your device.USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. The refresh rate ranges from 15fps at 2592 x 1944 (maximum resolution) to 40fps at 1280 x 960.The camera features a standard C-mount interface to fit any microscope with a C-mount adapter. In addition, the camera has a tripod mount on the base, allowing for use as a stand-alone imaging device (with a C-mount standard macro or zoom lens fitted). As a major upgrade over the C500W, the KoPa AIR camera also features a 5000mAh lithium Ion battery, capable of operating 8 hours on a full charge.Kopa Cam SoftwareThe software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. The App has simple touch screen buttons with both still and video capability as in USB mode. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. IlluminationWe offer our standard array of LED ring lights (OMLED-80A shown) or a high quality 4.5W LED ring light or a coaxial 3W LED spotlight. The included ring light has 80 LEDs with an auto-switching 90-264V power supply, 13000 Lux and 6400k color temperature. PLEASE NOTE that when ordering the coaxial light option, you will also need the coaxial adapter.Camera AccessoriesWiFi camera, 0.5X C-mount adapter, 30.0mm & 30.5mm collars, USB cable, software CD, padded storage case. Camera dimensions: 60mm diameter, 70mm height, 0.41 Lbs. Case dimensions: 9" wide, 8" deep, 6" tall. weight - 2.0 Lbs.Microscope AccessoriesAccessories include the Omano OM99-T Trinocular Microscope, 80 LED Ring illuminator, focus block, 0.5X C-mount adapter, V3 stand. details: 20 x 13 x 10", 12 Lb.
    Feed - Custom Label 1 <100<100100-500
    Illumination Type LEDLEDLED
    Light Specs
    Ring Light Type LEDLEDLED
    Ring Light Specification 80 LED90-265V Auto switching90-265V Auto switching
    Ring Light Power 8W
    Ring Light Control VariableVariableVariable

  • 0.5X Barlow Lens For Omano OM99/XTL, WD=163mm

    0.75X Barlow Lens For Omano OM99/XTL, WD=117mm

    2.0X Barlow Lens For Omano OM99/XTL, WD=40mm
    General
    Brand OmanoOmanoOmano
    SKU OMBL-99-05XOMBL-99-075XOMBL-99-20X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Compatibility
    Compatible With OM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLTOM99, OM99T, OMXTL, OMXTLT
    Optical Accessory
    Barlow Lens Power 0.5X0.75X2.0X

  • Reticle, 25mm Linear

    Reticle, 25mm Grid

    Reticle, 25mm Cross Linear
    General
    Brand OmanoOmanoOmano
    SKU OMR-25LOMR-25GOMR-25CL
    Notes For OM99, OMXTL, OM2300SFor OM99, OMXTL, OM2300SFor OM99, OMXTL, OM2300S
    Feed - Title Omano Reticle, 25mm LinearOmano Reticle, 25mm GridOmano Reticle, 25mm Cross Linear
    Feed - Description An upgrade to the old CX-3 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and use interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter. FeaturesThe CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.Microscope The OM2300ST zoom stereo trinocular microscope head has become our de facto, 'Go To' head for our industrial inspection customers. It has a solid design with crisp, clean optics beyond our expectations at this price level. The 7X-45X zoom range (6.4:1) is parfocal with dual diopters integrated into the oculars. Interpupillay adjustment range is 55mm-75mm. Standard working distance is 4.5" which increases to 6.5" with the addition of 0.5x auxiliary Barlow lens. Three alternative Barlows are available: 0.75x, 1.5x and 2.0x. WF10X eyepieces and eyeguards are included. NOTE: When the beam-splitter lever is engaged in the OM2300S-Trincular, 80% of the light from the left optical path is directed to the camera port. The image can still be viewed through both eyepieces while the camera is in use.Focus & IlluminationFocus controls are both left and right hand side for convenience. An 80 LED ring light is included and may be upgraded to other lights when adding to cart.StandThe V7 articulating boom base weighs 57lbs yet folds into a 13 x 13" space when not in use. Well-balanced, stable with smooth, controlled movement, the arm's first link can be removed to achieve even greater stability. The pole stands 21" high and the spring-powered articulating arm has an effective horizontal extension of 35". A 76mm focus block is included. As with most Omano boom stands, a hanging bar is included that enables angled viewing positions. The hanging bar bracket is spring-loaded so that the lever can be moved out of the way without having to release the pre-set position of the microscope head. Also available with a U-clamp for attachment to a bench top. The clamp fits benches up to 2.5" thick.Microscope AccessoriesRing light, focus block, dust cover, manual, eyeguardsCamera AccessoriesAC Power adapter, Remote Control Keypad, Remote Image Capture Controller.Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Combined Wt. - 3.0lbs.An upgrade to the old CX-3 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and use interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter. FeaturesThe CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.Microscope The OM2300ST zoom stereo trinocular microscope head has become our de facto, 'Go To' head for our industrial inspection customers. It has a solid design with crisp, clean optics beyond our expectations at this price level. The 7X-45X zoom range (6.4:1) is parfocal with dual diopters integrated into the oculars. Interpupillay adjustment range is 55mm-75mm. Standard working distance is 4.5" which increases to 6.5" with the addition of 0.5x auxiliary Barlow lens. Three alternative Barlows are available: 0.75x, 1.5x and 2.0x. WF10X eyepieces and eyeguards are included. NOTE: When the beam-splitter lever is engaged in the OM2300S-Trincular, 80% of the light from the left optical path is directed to the camera port. The image can still be viewed through both eyepieces while the camera is in use.Focus & IlluminationFocus controls are both left and right hand side for convenience. An 80 LED ring light is included and may be upgraded to other lights when adding to cart.StandThe V7 articulating boom base weighs 57lbs yet folds into a 13 x 13" space when not in use. Well-balanced, stable with smooth, controlled movement, the arm's first link can be removed to achieve even greater stability. The pole stands 21" high and the spring-powered articulating arm has an effective horizontal extension of 35". A 76mm focus block is included. As with most Omano boom stands, a hanging bar is included that enables angled viewing positions. The hanging bar bracket is spring-loaded so that the lever can be moved out of the way without having to release the pre-set position of the microscope head. Also available with a U-clamp for attachment to a bench top. The clamp fits benches up to 2.5" thick.Microscope AccessoriesRing light, focus block, dust cover, manual, eyeguardsCamera AccessoriesAC Power adapter, Remote Control Keypad, Remote Image Capture Controller.Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Combined Wt. - 3.0lbs.An upgrade to the old CX-3 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and use interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter. FeaturesThe CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.Microscope The OM2300ST zoom stereo trinocular microscope head has become our de facto, 'Go To' head for our industrial inspection customers. It has a solid design with crisp, clean optics beyond our expectations at this price level. The 7X-45X zoom range (6.4:1) is parfocal with dual diopters integrated into the oculars. Interpupillay adjustment range is 55mm-75mm. Standard working distance is 4.5" which increases to 6.5" with the addition of 0.5x auxiliary Barlow lens. Three alternative Barlows are available: 0.75x, 1.5x and 2.0x. WF10X eyepieces and eyeguards are included. NOTE: When the beam-splitter lever is engaged in the OM2300S-Trincular, 80% of the light from the left optical path is directed to the camera port. The image can still be viewed through both eyepieces while the camera is in use.Focus & IlluminationFocus controls are both left and right hand side for convenience. An 80 LED ring light is included and may be upgraded to other lights when adding to cart.StandThe V7 articulating boom base weighs 57lbs yet folds into a 13 x 13" space when not in use. Well-balanced, stable with smooth, controlled movement, the arm's first link can be removed to achieve even greater stability. The pole stands 21" high and the spring-powered articulating arm has an effective horizontal extension of 35". A 76mm focus block is included. As with most Omano boom stands, a hanging bar is included that enables angled viewing positions. The hanging bar bracket is spring-loaded so that the lever can be moved out of the way without having to release the pre-set position of the microscope head. Also available with a U-clamp for attachment to a bench top. The clamp fits benches up to 2.5" thick.Microscope AccessoriesRing light, focus block, dust cover, manual, eyeguardsCamera AccessoriesAC Power adapter, Remote Control Keypad, Remote Image Capture Controller.Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Combined Wt. - 3.0lbs.
    Feed - Custom Label 1 <100<100<100

  • 15X Eyepiece For OM99 (Single)

    20X Eyepiece For OM99, OM139 (Single)

    25X Eyepiece For OM99 (Single)
    General
    Brand OmanoOmanoOmano
    SKU OMEP-99-15XOMEP-99-20XOMEP-99-25X
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    Notes Priced per EyepiecePriced per PairPriced per Pair
    Feed - Title Omano 15X Eyepiece For OM99 (Single)Omano 20X Eyepiece For OM99, OM139 (Single)Omano 25X Eyepiece For OM99 (Single)
    Feed - Description This high quality combination includes OptixCam's high resolution CX-3 1080p LVDS microscope camera/display with Omano's top of the line OM99-T trinocular stereo zoom microscope head and premium V15 dual-arm boom stand. With excellent optics throughout the microscope system, it is an industrial inspection system that can also be used as a standard optical microscope using the included super wide field, SWF10x eyepieces.CameraAn upgrade to the old CX-3 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and use interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter. FeaturesThe CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.The camera has a standard C-Mount fitment, and a C-mount adapter (not included) will be necessary to mount the camera to a microscope.LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.Camera AccessoriesAC Power adapter, Remote Control Keypad, Remote Image Capture Controller.Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Wt. 3.0lbs.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.Focus & Illumination Focus controls are both left and right hand side for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED or other lights when adding to cart.This high quality combination includes OptixCam's high resolution CX-3 1080p LVDS microscope camera/display with Omano's top of the line OM99-T trinocular stereo zoom microscope head and premium V15 dual-arm boom stand. With excellent optics throughout the microscope system, it is an industrial inspection system that can also be used as a standard optical microscope using the included super wide field, SWF10x eyepieces.CameraAn upgrade to the old CX-3 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and use interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter. FeaturesThe CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.The camera has a standard C-Mount fitment, and a C-mount adapter (not included) will be necessary to mount the camera to a microscope.LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.Camera AccessoriesAC Power adapter, Remote Control Keypad, Remote Image Capture Controller.Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Wt. 3.0lbs.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.Focus & Illumination Focus controls are both left and right hand side for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED or other lights when adding to cart.This high quality combination includes OptixCam's high resolution CX-3 1080p LVDS microscope camera/display with Omano's top of the line OM99-T trinocular stereo zoom microscope head and premium V15 dual-arm boom stand. With excellent optics throughout the microscope system, it is an industrial inspection system that can also be used as a standard optical microscope using the included super wide field, SWF10x eyepieces.CameraAn upgrade to the old CX-3 microscope camera, the new CX-3-116 sports a larger 11.6" monitor with improved connections and use interface. It is better quality than the old HDMI 1080 in every respect with double the functional resolution, an expansive, 11.6"-inch display and an improved on screen menu system, all at the same price. The TFT-LCD display offers vivid resolution and exceptional off-angle viewing capability and with a standard C-mount, the new camera attaches to any standard trinocular microscope fitted with a C-mount adapter. FeaturesThe CX3 display finally brings a useful sized monitor to the world of industrial inspection, laboratories and schools. At 11.6", the display is a pleasure to use with good on screen controls and a remote control. A standard SD card slot allows you to conveniently transfer image files via SD card for later analysis and file-sharing on your PC. A particularly useful feature is a cross-hair generator that enables up to eight on-screen, cross-hairs in five different color options. Other features include auto white balance, RGB adjustment, auto and manual white balance and auto exposure.The camera has a standard C-Mount fitment, and a C-mount adapter (not included) will be necessary to mount the camera to a microscope.LVDS technology offers a number of key benefits to digital microscopy, including richer color definition, better signal integrity, greater bandwidth capacity, encryption protocols and high-definition video. The CX-3 showcases this technology in an affordable and versatile package for the biology classroom, industrial inspection line or clinical teaching laboratory.Camera AccessoriesAC Power adapter, Remote Control Keypad, Remote Image Capture Controller.Dimensions: Display - 11.0" x 7.0" x 0.5"; Camera - 2.0" x 2.0"; Wt. 3.0lbs.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.Focus & Illumination Focus controls are both left and right hand side for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to stronger LED or other lights when adding to cart.
    Feed - Custom Label 1 <100<100<100
    Compatibility
    Compatible With OM99, OM99TOM99, OM99T, OM139, OM139TOM99, OM99T
    Eyepiece Magnification 15x20x25x
Magnification Chart

Eyepiece

Standard Configuration

Omano OM99

Auxiliary Barlow Lens

0.4X

0.5X

0.75X

2.0X

Working distance 100mm

Working distance 298mm

Working distance 163mm

Working distance 117mm

Working distance 40mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

10X

6.5x-45x

33.8 - 4.9

2.6-18.0x

67.7-9.8

3.3x-22.5x

67.7-9.8

4.9x-33.8x

45.1-6.5

13x-90x 16.9-2.5

15X

9.8x-67.5x

24.6-3.5

3.9-27.0x

49.2-7.0

4.9x-33.8x

49.2-7.0

7.3x-50.6x

32.8-4.7

19.5x-135x  12.3-1.8

20X

13x-90x

20.0-2.9

5.2-36.0x

40.5-5.8

6.5x-45x

40.5-5.8

9.75x-67.5x

26.6-3.8

26x-180x 10.0-1.4

 25x

 16.3x-112.5x 18.5-2.6  6.5-45.0x 37.0-5.2  8.1x-56.3x

37.0-5.2 12.2x-84.4x 24.6-3.5

32.5x-225x  9.2-1.3
