Motic GM171 7.5X - 50X Zoom Jewelry Microscope and Case

List Price: $1,944.00

Starting at: $1,750.00

SKU: GM171

Availability: In stock

  • Zoom magnification range 7.5X - 50X
  • Classic SMZ171 stereo microscope head
  • Rotatable stand for ease of client viewing
  • Generous 110mm Working Distance
  • Gem clamp for multiple-facet inspection
  • Binocular or trinocular viewing head
  • Aluminum carrying case included
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

  • $349.00
  • $179.00
  • $469.00
  • $1,095.00

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

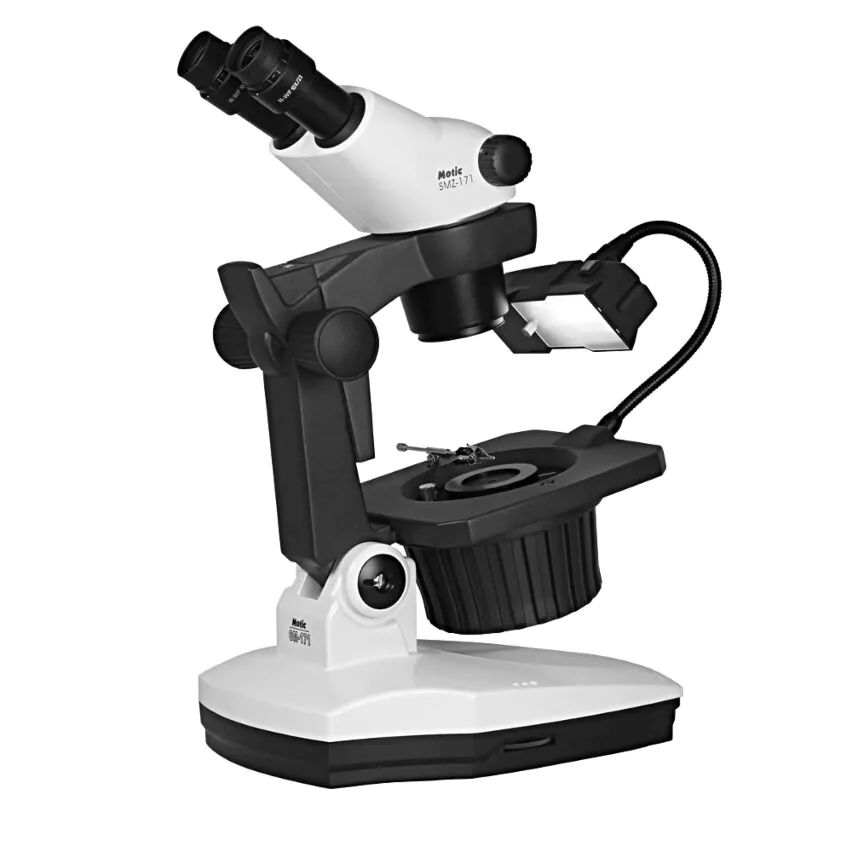

  • Motic GM171 Zoom Jewelry Microscope
  • Motic GM171 Zoom Jewelry Microscope trinocular
Description

Summary

The GM171 gem microscope combines the classic Motic SMZ171 7.5X-50X stereo microscope head with a modern brightfield/darkfield gem stand in an efficient, affordable tool for the gemological and precious minerals industry. Rugged and precise, the GM171 optics offer higher magnification than the GM161, helping users perform identification and analysis quickly and efficiently. A generous 110mm working distance allows easy access and manipulation of the gem. Available in binocular or trinocular version for digital documentation, they feature a swivel base which rotates 360 degrees and tilts 45 degrees to assist client viewing. The microscope comes with a foam-padded aluminum carrying and storage case. Lifetime Limited Warranty.

Microscope Head

The SMZ171 stereo head is an excellent choice for jewelry and gem stone inspection at an affordable price. The parfocal zoom ratio is 6.7:1, offering a magnification range of 7x-50x with dual-sided zoom controls and a working distance of 110mm. The head is inclined 45° and includes lnear sliding interpupillary adjustment of 50mm-75mm.

High Eyepoint widefield 10X/F.N.23 eyepieces come standard, offering dual dioptric adjustment and a broad field of view ranging from 30.67mm to 1.33mm. Optional eyepiece powers include 15X and 20X, for additional magnification of 75X and 100X respectively, without the loss of working distance. Finally, the microscope is available in binocular or trinocular format to easily capture digital images for documentation, promotion or client use. Please note that a trinocular adapter is required to fit your camera.

Illumination & Stage

Brightfield / Darkfield illumination is from powerful and consistent 6V30W variable-intensity Halogen with an aperture diaphragm adjustable from 41mm to 2mm. This allows depth of field and contrast control for easier stone identification. Incident illumination is provided by a 7-watt, 6000-degree color temp fluorescent light box on a flexible goose neck arm. The stage offers two mounting points for a gem holder and inclusion pointer along with adaptation for optional contrasting methods like immersion or polarization.

Stand

The professional gem stand features dual focus controls for precise movement through 125mm of vertical range, to accommodate different gems and stones. An integral swivel base allows 360-degree rotation and the arm inclines 45 degrees for flexible viewing positions by jeweler or client.

Accessories include 100V-240V power supply, wire gem clamp, foam-padded aluminum carrying case. MOTIC Part# - Binocular: 1100200600842; Trinocular - 1100200600852
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • GM171B Zoom Binocular Jewelry Microscope

    GM171T Zoom Trinocular Jewelry Microscope
    SKU GM171BGM171T
    Notes Motic Part number 110020060084 Motic Part # 1100200600852
    MAP Copy MAP - MoticMAP - Motic
    Head
    Head Type BinocularTrinocular
    Optical Design Greenough ConvergedGreenough Converged
    Ocular Angle 45°45°
    Diopter Adjustment DualDual
    Magnification Type ZoomZoom
    Interpupillary Adjustment Linear SlidingLinear Sliding
    Head Rotation 360 Degrees360 Degrees
    Minimum Objective (X) 7.5X7.5X
    Maximum Objective (X) 50X50X
    Zoom Ratio 1:6.71:6.7
    Zoom Control Type Smooth ContinuousSmooth Continuous
    Zoom Indicator Graduations YesYes
    Parfocal YesYes
    Configuration
    Includes Eyepieces? YesYes
    Included Eyepieces (X) 10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Body
    Body Material Mixed Metal/PlasticMixed Metal/Plastic
    Coating Type Durable PowdercoatDurable Powdercoat
    FocusBlock
    Focus Controls CoarseCoarse
    Stand
    Stand Class PedestalPedestal
    Stand Features Inclinable, Rotatable SwivelInclinable, Rotatable Swivel
    Stage Plate Gem Clamp, Large Gem Stage PlateGem Clamp, Large Gem Stage Plate
    Base Width 236mm236mm
    Base Depth 306mm306mm
    Coating Type (Stand) Durable PowdercoatDurable Powdercoat
    Illumination
    Illumination Type Halogen, FluorescentHalogen, Fluorescent
    Illumination Style Transmitted, Incident, Brightfield/DarkfieldTransmitted, Incident, Brightfield/Darkfield
    Power Supply 110V/240V110V/240V
    Incident Light Type FluorescentFluorescent
    Incident Light Specification 7W 6000 Degree Color Temp7W 6000 Degree Color Temp
    Incident Light Control VariableVariable
    Transmitted Light Type HalogenHalogen
    Transmitted Light Specification 6V30W6V30W
    Transmitted Light Control VariableVariable
    Max Working Distance (standard) 110mm110mm
    Compatibility
    Imaging Compatibility (with adapters) 23mm 23mm
    Reticles
    Reticles Available? YesYes
    Reticle Diameter (10X Eyepiece) 25mm25mm
    Accessories
    Included Extras Dust Cover, Aluminum Carry Case, Wire Gem HolderDust Cover, Aluminum Carry Case, Wire Gem Holder
    Case Included? YesYes

  • Moticam 1SP 1.3MP Color Digital Microscope Camera

    Moticam 1 0.5MP Color Digital Microscope Camera

    Moticam 2 2.0MP Color Digital Microscope Camera

    Moticam 10
    SKU MC1SPMC1MC2MC10
    Product Weight 1.00001.00001.00001.0000
    MAP Copy MAP - MoticMAP - MoticMAP - MoticMAP - Motic
    Sensor
    Sensor Type CMOSCMOSCMOSCMOS
    Sensor Size 1/3 Inch1/4 Inch1/3 Inch1/2.5 Inch
    Color/Monochrome ColorColorColorColor
    Pixel Pitch 3.2um x 3.2um5.6um x 5.6um3.2um x 3.2um1.67um x 1.67um
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressiveProgressive
    Signal to Noise Ratio 43db45db43db34db
    Dynamic Range 61db60db61db66.5db
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular Mount
    Resolution 1.3 Megapixel, 1280x1024 pixels 2 Megapixel, 1600x1200 pixels10 Megapixel, 3856x2764 pixels
    FPS @ Max Res 13fps10fps5 fps2fps
    Camera Interface USB 2.0USB 2.0USB 2.0USB 2.0
    White Balance Area-of-Interest, Automatic, Manual, SpotArea-of-Interest, Automatic, Manual, SpotArea-of-Interest, Automatic, Manual, SpotArea-of-Interest, Automatic, Manual, Spot
    Black Balance ManualManualManualManual
    Software Included Motic Images Plus 2.0MLMotic Images Plus 2.0MLMotic Images Plus 2.0MLMotic Images Plus 2.0ML
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAIN
    Power Source USB PoweredUSB PoweredUSB PoweredUSB Powered
    File Formats BMP, JPEG, Own Proprietary, PNG, TIFFBMP, JPEG, Own Proprietary, PNG, TIFFBMP, JPEG, Own Proprietary, PNG, TIFFBMP, JPEG, Own Proprietary, PNG, TIFF
    Exposure Control Area-of-Interest, Automatic, Manual, Spot, Vignetting CorrectionArea-of-Interest, Automatic, Manual, Spot, Vignetting CorrectionArea-of-Interest, Automatic, Manual, Spot, Vignetting CorrectionArea-of-Interest, Automatic, Manual, Spot, Vignetting Correction
    Operating Temperatures -30°C to +70°C-30°C to +70°C-30°C to +70°C-30°C to +70°C
    Other Details
    Included Accessories Focusable Macro Lens, 30, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, U-Type Gooseneck/Tripod Adapter, Software CD, Calibration Slide MicrometerFocusable Macro Lens, 30, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, U-Type Gooseneck/Tripod Adapter, Software CD, Calibration Slide MicrometerFocusable Macro Lens, 30, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, U-Type Gooseneck/Tripod Adapter, Software CD, Calibration Slide MicrometerFocusable Macro Lens, 30, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, Gooseneck/Tripod Adapter, Software CD, Calibration Slide Micrometer
    Supported Operating Systems Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, USB 2.0 High Speed Port
    Environmental Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90%
    Compatibility
    Imaging Compatibility (with adapters) C-MountC-MountC-MountC-Mount
