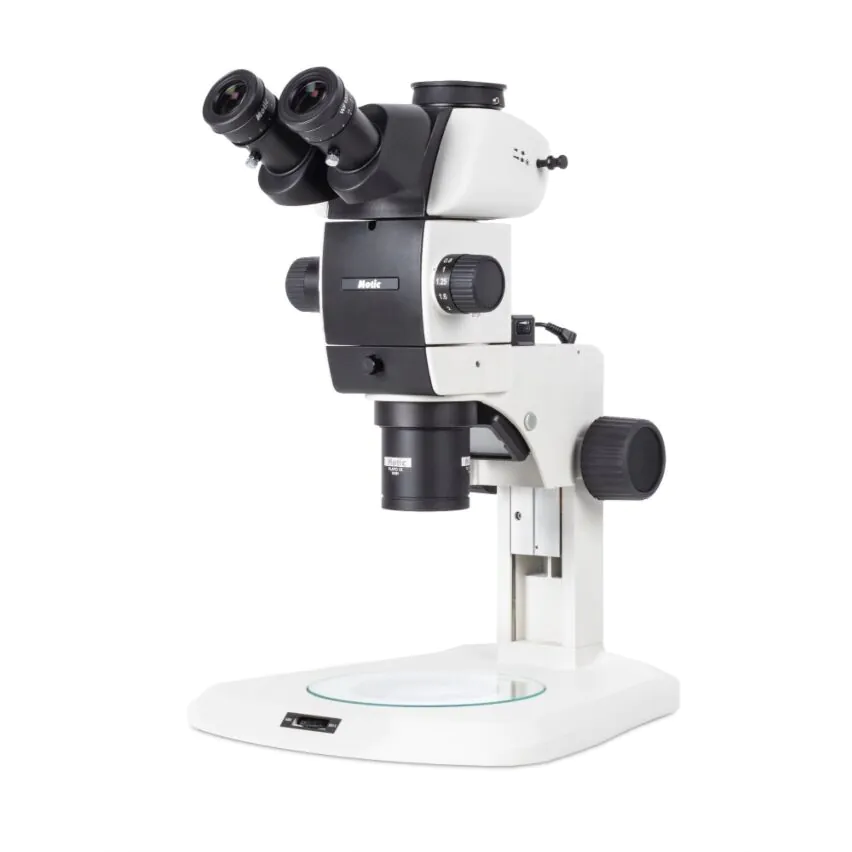

Motic SM7TR-TLED APO1X Apochromatic Trinocular Microscope with Incident and Transmitted Illumination
- Superior Optical Performance: Features a Plan Apochromat 1X objective for true color reproduction, high resolution, and minimal distortion across the entire field of view.
- Versatile LED Illumination: Equipped with dual 3W LED incident and transmitted light sources, featuring independent controls for examining transparent, opaque, or mixed specimens.
- Galilean Optical System: Utilizes advanced Galilean stereomicroscopy to provide exceptional spatial information and depth, ideal for biological, medical, and industrial applications.
- Flexible Viewing & Ergonomics: Includes a trinocular head for easy camera integration and an 81mm working distance to accommodate various sample sizes and manipulation needs.

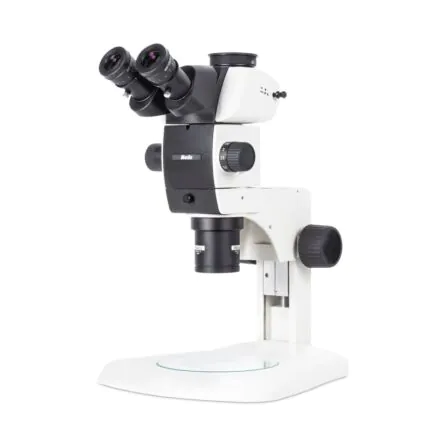

SM7TR-TLED APO1X Trinocular Stereo Microscope
Professional Galilean Infinity Optics with Plan Apochromat Precision
Superior Color Reproduction & Spatial Information
The SM7TR-TLED APO1X represents the pinnacle of Motic’s stereo microscopy, utilizing a Galilean Infinity Optical Design with a Common Main Objective (CMO). Specifically engineered for biology, medicine, and rigorous industrial quality control, this system delivers true-to-life color reproduction, ultra-high resolution, and exceptionally low distortion.
Equipped with a Plan Apochromat 1X objective, the SM7 series ensures that chromatic aberrations are virtually eliminated, providing a flat field of view and crisp spatial information that is critical for detailed specimen analysis.
Advanced Features & Versatility
- Advanced Optical Performance: 7:1 Zoom ratio (0.8X~5.6X) with 10-step click-stops for precise magnification repeatability.
- Dual LED Illumination: High-intensity 3W incident and transmitted LEDs with independent controls, ideal for both transparent and opaque specimens.
- Trinocular Flexibility: A dedicated 100:0 / 20:80 light split allows for simultaneous viewing and high-quality digital imaging.
- Ergonomic Viewing: 30º inclined head with ±5/-8 diopter adjustment on both eyepieces to minimize user fatigue during long sessions.
- Robust Build: A fixed-arm stand with a 120mm focusing stroke and tension adjustment for a steady, customized user experience.
Technical Specifications
| Feature | Details |
|---|---|
| Model | SM7TR-TLED APO1X |
| Optical System | Galilean Infinity (CMO) |
| Magnification Zoom | 0.8X ~ 5.6X (10-step) |
| Objective Type | Plan Apochromat 1X |
| Working Distance | 81mm |
| Eyepieces | Widefield WF10X / 22mm |
| Interpupillary Distance | 55mm - 75mm |
| Stand Type | Fixed-arm stand with Transmitted Illumination |
| Weight | 7.5kg (Net) |
Optimized for High-End Research & QC
The SM7 Series is a highlight for professionals who require high-resolution spatial information. Its modular nature and high-spec objectives make it the tool of choice for:
- Medical Research: Detailed tissue analysis and surgical training.
- Industrial Quality Control: Precision inspection of electronics, semiconductors, and mechanical components.
- Biological Sciences: Dissection and observation of living organisms with true color fidelity.
What’s in the Box?
- SM7TR Trinocular Head
- Fixed-arm TLED Stand (Incident/Transmitted)
- Plan Apochromat 1X Objective
- WF10X/22mm Eyepieces (Pair)
- Ø160mm Glass Plate and Black/White Stage Plate
- Dust Cover and External Transformer
Upgrade to Plan Apochromat Precision
Experience the difference in clarity and color accuracy that only a Galilean CMO system can provide.
Order the SM7TR-TLED APO1X today
| Brand | Motic |
|---|---|
| Recommended For | 0 |
| Optical Design | Greenough Converged |
| Trinocular Tube Focusable? | No |
| Zoom Indicator Graduations | No |
| Parfocal | No |
| Includes Eyepieces? | No |
| Includes Barlow? | No |
| Includes Eyecups? | No |
| Reticles Available? | No |
| Case Included? | No |
