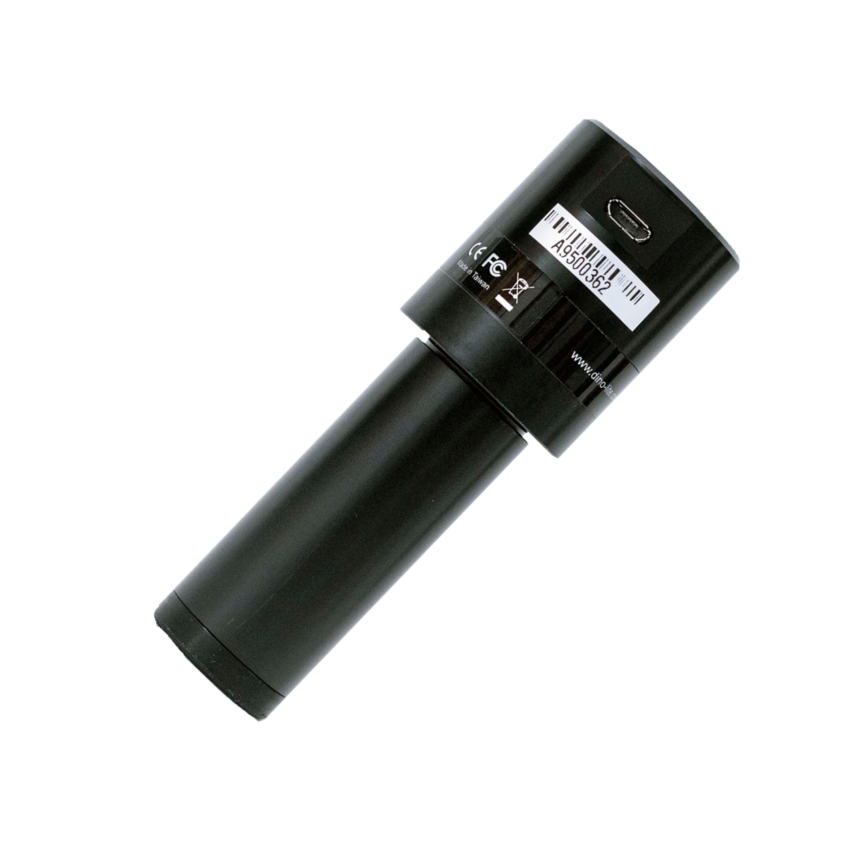

Dino-Eye AM7025X Edge Series 5.0MP CMOS Color Microscope Camera

Our Price: $649.00

SKU: AM7025X

Availability: In stock

  • Edge series CMOS color sensor with 5.0MP Resolution
  • Fits 23mm, 30mm or 30.5mm eyepiece ports & c-mount
  • Measuring software with calibration
  • Mac Compatible 10.5 or higher
  • USB 2.0 Output

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • AM7025X Edge Series 5.0MP CMOS Color Microscope camera
  • AM7025X Edge Series 5.0MP CMOS Color Microscope camera
  • Sample 3 - Dino-Lite AM7023 Eyepiece Camera
  • Sample 4 - Dino-Lite AM7023 Eyepiece Camera
Description

Summary

The first eyepiece with the high quality Edge Series class optics and high-resolution sensor, the 5MP Dino-Eye Edge Series AM7025X offers remarkable image performance while providing a relatively larger field of view than its predecessors. The AM7025X design and included adapters allows for fitment within 23mm, 30mm, 30.5mm or c-mount eyepiece slots which can be fixed into the ideal focal position.

In addition, the camera allows image capture of stains, dyes, markings and specific chemical substances under UV lighting, making the AM7025X ideal for law enforcement and forensics inspection duties.

DinoScope Software

Dino-Lite USB 2.0 software is compatible with both PC (DinoCapture 2.0) and Mac (DinoXcope) computers. We have found the software to be robust and reliable. It enables image capture, video and time lapse video while measuring capabilities include linear and geometric as well as circular and point-to-line.

Accessories

Camera, software CD, calibration target, 30mm collar, 30.5mm collar with C-mount threads, storage pouch, quick start guide.

AM7025X Demonstration Video

Specifications

AM7025X Edge Series 5.0MP CMOS Color Microscope Camera
General
SKU AM7025X
Short Description
  • Edge series CMOS color sensor with 5.0MP Resolution
  • Fits 23mm, 30mm or 30.5mm eyepiece ports & c-mount
  • Measuring software with calibration
  • Mac Compatible 10.5 or higher
  • USB 2.0 Output
Product Weight 0.6200
Sensor
Sensor Type CMOS
Sensor Size 1/4 Inch
Color/Monochrome Color
Camera
Camera Mount Ocular Mount
Resolution 5 Megapixel, 2592x1944 pixels
Camera Interface USB 2.0
White Balance Automatic
Software Included Dino Capture
File Formats BMP, JPEG, PNG, TGA, TIFF
Exposure Control Automatic
Other Details
Included Accessories Software CD
Supported Operating Systems Windows 8, Windows 7, Windows Vista, Mac OSX 10.4+, Windows XP SP3, Mac OSX 10.5+
Certifications CE, UL
Cable Length 6 Ft
Camera Warranty 2 Years
Compatibility
Imaging Compatibility (with adapters) 30mm/30.5mm
