Motic

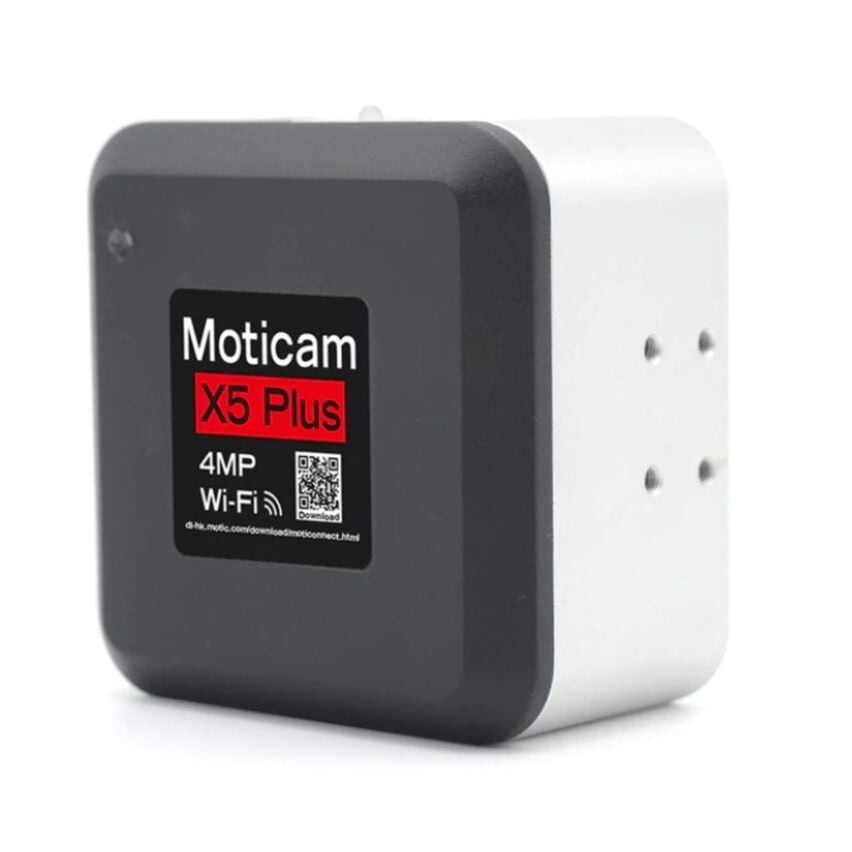

Moticam X5 PLUS 4.0MP WiFi - iPad/Android Compatible Microscope Camera
- Wireless iPad and Android compatible
- Supports up to 6 network devices
- Vivid 4.0MP live capture or 2.0MP streaming WiFi
- External USB power supply
- Built-in RJ45 network port
- Included Calibration Slide
- Free MotiConnect App
- PC/MAC compatible
- ALL SALES FINAL - NO RETURNS
MC X5 PLUS Summary
The Moticam X5 is yet another innovative productivity tool, the first digital camera to offer high-resolution streaming images from its own wireless network. The camera will link with your WiFi-enabled pc, iPad, smartphone or laptop running Windows XP, MAC OSX or higher. Just login with your device and capture, edit and share your microscope images with the free MotiConnect app. The X5 offers 4.0MP of live resolution or 2.0MP streaming WiFi resolution, turning any optical microscope into a WiFi-enabled digital documentation lab.
Key upgrades from the Moticam X include a standard RJ45 Ethernet port for added versatility. By using Motic's free App "MotiConnect", you can connect and share with up to six devices in the network, all without an additional router.
Software
The included Motic Images Plus software offers PC/MAC compatibility and simple, accurate and easy-to-use controls for image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
Accessories
CD-ROM Software disc, 4-Dot calibration slide, focusable coated glass lens, 30mm & 38mm Eyepiece adapters, Macro viewing tube, USB 2.0 Cable.
Note: If you elect to use the camera directly on a 23mm optical tube, you will need a c-mount adapter, (part number CA037X-23MMF) available separately.
| Brand | Motic |
|---|---|
| Product Weight | 1 |
| Recommended For | 0 |
| Sensor Type | CMOS |
| Sensor Size | 1/3 Inch |
| Color/Monochrome | Color |
| Filter | RGB Bayer Pattern |
| Pixel Pitch | 2.8um x 2.8um |
| Sensor Color Depth | 8bpp / 24bit RGB |
| Scan Mode | Progressive |
| Signal to Noise Ratio | 42db |
| Dynamic Range | 68db |
| Peltier Cooling | No |
| Shutter | Electronic |
| Camera Mount | C-Mount |
| Resolution | 1.3 megapixel |
| Camera Output Resolutions | WiFi (1280 X 1024) |
| FPS @ Max Res | 15 |
| FPS @ Min Res | 15 |
| Camera Interface | WiFi |
| White Balance | Area-of-Interest |
| Black Balance | Manual |
| Software Included | Motic Images Plus 2.0ML |
| Driver API Compatibility | DirectX |
| Power Source | USB |
| File Formats | BMP |
| Exposure Control | Area-of-Interest |
| Included Accessories | Focusable Macro Lens, 30mm, 44mm Microscope Eyepiece Couplers, Macrotube for Observation of Macro Specimens, Software CD, Calibration Slide Micrometer |
| Supported Operating Systems | Windows 7 |
| System Requirements | 2GB RAM Recommended |
| Environmental | Operating Temp: -10°C ~ 70°C, Relative Humidity: 40%~90% |
| Imaging Compatibility (with adapters) | C-Mount |
