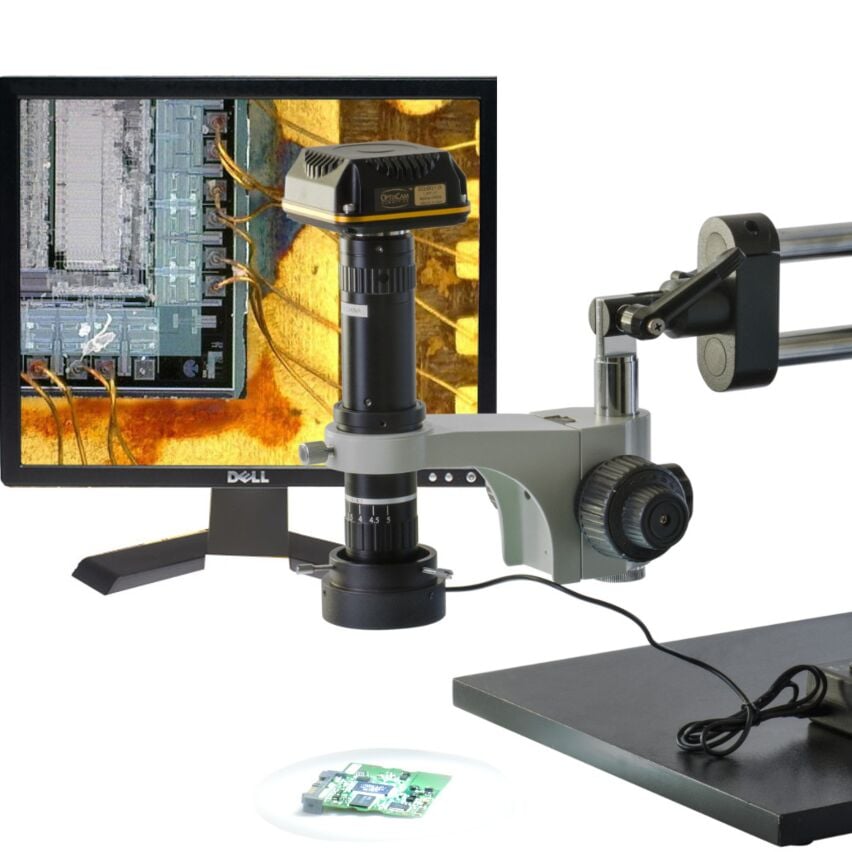

Omano SK2-VIDZ-BOOM 6X-50X Zoom Video Inspection System

List Price: $1,823.00

Starting at: $949.00

SKU: SK2-VIDZ-BOOM

Availability: In stock

  • Complete video boom inspection system
  • Choice of several OptixCam USB microscope cameras
  • Lab quality 6x-50x zoom video inspection lens
  • Standard coarse focus or optional coarse/fine focus block
  • 86mm standard working distance
  • 156mm working distance with 0.5X Barlow Lens
  • Choice of 5 industrial boom stands
  • Special order: Polarizing Kits and apochromatic lenses
  • Monitor Not Included

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

VIDZ 650 Monocular 6x-50x Zoom Microscope Body   $399.00
VIDZ 650 0.5X Barlow Lens, WD = 160mm   $69.00
  • $59.00
OMHB25 Hanging Bar   $25.00
  • $25.00
  • $129.00
  • $79.00
  • $88.00
  • $129.00
  • $175.00
  • $99.00
  • $95.00
  • $260.00
  • $109.00
  • $95.00

Included in Bundle

Microscope: VIDZ 650 Monocular 6x-50x Zoom Microscope Body

Included 0.5X Barlow Lens: VIDZ 650 0.5X Barlow Lens, WD = 160mm

Hanging Bar: OMHB25 Hanging Bar

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • SK2-VIDZ-BOOM 6X-50X Zoom Video Inspection system
  • SK2-VIDZ-BOOM 6X-50X Zoom Video Inspection lens
  • SK2-VIDZ-BOOM 6X-50X Zoom Video Inspection mount
  • SK2-VIDZ-BOOM 6X-50X Zoom Video Inspection front
  • SK2-VIDZ-BOOM 6X-50X Zoom Video Inspection back
  • SK2-VIDZ-BOOM 6X-50X Zoom Video Inspection sample
Description

Summary

This industrial microscope inspection system combines the vivid, high-speed response of the OptixCam SK2 series USB2.0 and USB3.0 digital microscope cameras with our brand new Omano VIDZ-650 6X-50X zoom microscope and your choice of five different Omano boom stands. The new SK2 cameras offer PC/MAC compatibility, sharp images or video @ 30Fps in a cost-effective package, making them an ideal imaging solution for fast-paced industrial environments and technical training classrooms.

Summit SK2 Series Features

The brand new OptixCam Summit SK2 Series cameras represent the latest innovation in digital microscopy, built to meet the documentation demands of routine life science, industrial and educational applications at very competitive price-points. Built around the proven Aptina MT9T001 CMOS color sensor, they share a broad dynamic range, progressive scan and 12-bit parallel resolution for accurate color reproduction and optimal image quality.

Windows PC and MAC users benefit from easy-to-use feature-rich software, accurate color, clarity and image detail, while low noise USB 2.0 data transfer maximizes workflow and productivity. All SK2 series cameras are CE and FCC certified.

Mounting & Controls

All Summit SK2 microscope cameras come with a standard C-mount and share a rugged aluminum alloy body fitted with different size Aptina CMOS sensors depending on the model. Advanced documentation and measuring software is included along with a C-mount adapter with 23mm smooth bore and 0.5X reducing lens to more closely match the captured image with the eyepiece view. Optional focusing lenses, calibration slide and 30mm and 30.5mm collars are available.

Software

The included software provides simple, accurate and easy-to-use controls for image capture, notation and measuring. Measuring capabilities include length, width, height, thickness, circumference, radius, angles and dot counts while notations can be easily made on any given image. The software also includes auto white balance and color enhancement among other benefits while image capture and storage is intuitive.

The software is also fully TWAIN and DirectX compatible, allowing simple integration with a wide range of commercial and scientific imaging software. Moreover, both TWAIN and DirectX plug-ins are independent of the main driver, which allows discreet control of the camera for these applications. Accessories include CD-ROM Software disc, 0.5x C-Mount adapter for 23.2mm eyepiece port, USB Cable, Quick Start Guide.

Microscope Zoom Lens

The VIDZ-650 marks a significant step up in quality with truly excellent definition, resolution and flexibility. It is well-suited to industrial inspection applications where higher resolution and clarity are required, but without the expense of a Navitar lens. The lens is entirely configurable with optional objective and Barlow lenses, illumination, cameras, adapters and stands. Each configuration is built round the high quality 6x-50x zoom magnification with 1x objective lens and 1x focusable C/CS Mount. Simply choose your options and then add to cart or call us to discuss further customizations such as apochromatic objective lenses or metallurgical configurations.

Stands and Focus Blocks

Choose from five rugged, dependable boom stands, all of which include a 25mm hanging bar. They include the economical single-arm JW11 workhorse; the single-arm V10 with fine horizontal adjustment; the dual-arm V6 with a 25" reach; the articulating arm V7 for 3-D positioning, and the premium dual-arm V15 with roller bearings for effortless, fingertip positioning. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. PLEASE NOTE that when ordering the JW11 stand option, you will also need the hanging bar bracket adapter.



Illumination

We offer our standard array of LED ring lights, a compact 4.5W LED ring light (shown), or two coaxial options: 3W LED spotlight or 150W fiber optic guide and illuminator.

To order the 3W coaxial LED Spotlight, select the following...

  • - Coaxial light adapter for VIDZ 650
  • - 3W Coaxial LED Spotlight for VIDZ 650

To order the 150W Fiber Optic System, select the following...

  • - Coaxial light adapter for VIDZ 650
  • - Single Fiber Optic Light Guide for VIDZ 650
  • - OMFOB NEW 150W Fiber Optic Light Source

Camera Accessories

Accessories include K2View Software CD, C-mount adapter, 23.2mm smooth bore fixed reducing lens (0.5X), USB cable. Camera dimensions: 58mm x 58mm x 32mm

Specifications

  • Summit SK2-1.3X 1.3MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-3.1X 3.1MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-5.2X 5.0MP PC / MAC Compatible Digital Microscope Camera

    Summit D3K2-3.1 3.1MP USB 3.0 High Speed Digital Microscope Camera

    Summit D3K2-5 5.0MP USB 3.0 High Speed Digital Microscope Camera

    AIR 5.0MP WiFi (PC / MAC) or USB (PC-Only) Digital Microscope Camera
    SKU OCS-SK2-1.3XOCS-SK2-3.1XOCS-SK2-5.2XOCS-D3K2-3.1OCS-D3K2-5OCS-AIR
    Warranty 1 Year1 Year1 Year1 Year1 Year
    Product Weight 2.00002.00002.00002.00002.00001.8lbs
    Product Length  10"
    Product Width  8.5"
    Product Height  5"
    Backorder ETA  Oct 31, 2017
    Sensor
    Sensor Type CMOSCMOSCMOSCMOSCMOSCMOS
    Sensor Size 1/3 Inch1/2 Inch1/3 Inch1/3 Inch1/2.5 Inch1/2.5 Inch
    Sensor Details Aptina MT9M111 CMOSAptina MT9T001 CMOSAptina MT9P001 CMOSAptina AR0330(C) CMOSAptina MT9P006(C) CMOS
    Color/Monochrome ColorColorColorColorColorColor
    Filter  RGB Bayer Pattern
    Pixel Pitch 3.6 µm x 3.6 µm3.2 µm x 3.2 µm2.2 µm x 2.2 µm2.2 µm x 2.2 µm2.2 µm x 2.2 µm
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressiveProgressiveProgressive
    Signal to Noise Ratio 44 db43 db40.5 db39dB40.5 db
    Sensitivity 1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.9v/Lux-sec 1.0V/Lux-sec (550nm)
    Dynamic Range 71 db61db66.5db100dB66.5db
    A/D Conversion 10-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC
    Cooling System  Natural Natural
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterMechanical
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, F-Mount, Ocular Mount
    Resolution 1.3 Megapixel, 1280x1024 pixels3 Megapixel, 2048x1536 pixels5 Megapixel, 2592 X 1944 pixels3 Megapixel, 2048x1536 pixels5 Megapixel, 2592 X 1922 pixels
    Camera Output Resolutions 1280 X 1024; 640 X 512; 320 X 2562048 x 1536; 1024 x 768; 680 x 5102592 X 1944; 1280 X 960; 640 X 4802048 x 1536; 1024 x 768; 680 x 5102592 X 1922; 1280 X 960; 640 X 480640 x 480, 800 x 600, 1280 x 960, 2592 x 1944
    FPS @ Max Res [email protected]; [email protected]; [email protected][email protected]; [email protected]; [email protected]5fps @ 2592 X 194427.3 @ 2048x153414.2 fps @2560x192215/5 fps USB/WiFi
    FPS @ Min Res 50fps @ 320 x 25643fps @ 680 x 51060fps @ 640 X 48053.3 @ 1024x770101.2 fps @ 640x48040/30 fps USB/WiFi
    Camera Interface USB 2.0USB 2.0USB 2.0USB 3.0USB 3.0WiFi, USB 2.0
    White Balance Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic
    Black Balance  Automatic
    Software Included OptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2ViewMeasuring Software
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAIN
    Power Source USB PoweredUSB PoweredUSB PoweredUSB PoweredUSB Powered
    File Formats BMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFJPEG, MOV
    Exposure Control Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, Manual
    Exposure Time 2000ms-0.14Ms2000ms-0.128s2000ms-0.21s2000ms-0.128s2000ms-0.21s
    Operating Temperatures 10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C
    Operating Humidity 30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH
    Storage Temperature -20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C
    Other Details
    Included Accessories 0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CDCase, Software CD/App, Power Adapter, USB Cable
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+, Linux (kernel 2.6.26+)Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+, Linux (kernel 2.6.26+)Windows 8, Windows 7, Windows Vista, Windows XP SP3, Apple iOS, Android 3+
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, USB 2.0 High Speed Port
    Certifications CE, ULCE, ULCE, ULCE, ULCE, UL
    Cable Length 1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)
    Camera Warranty 1 Year1 Year1 Year1 Year1 Year1 Year
    Software Support 6 Months6 Months6 Months6 Months6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-MountC-Mount

  • VIDZ 650 Monocular 6x-50x Zoom Microscope Body
    SKU OM-VIDZ-650
    Magnification Chart VIDZ 650 Magnification Chart
    Staff Pick Yes
    Head
    Head Type Monocular
    Magnification Type Zoom
    Minimum Objective (X) 6x
    Maximum Objective (X) 50x
    Zoom Ratio 1:8.3
    Zoom Control Type Smooth Continuous
    Zoom Indicator Graduations Yes
    Parfocal Yes
    Included Barlow (X) 0.5X
    Min Standard Mag 6x
    Max Standard Mag 50x
    Available Barlow Lenses 0.3X, 0.5X, 1.0X, 1.5X, 2.0X
    Body
    Body Material All-Metal
    Compatibility
    Imaging Compatibility (with adapters) C-Mount
    Available Imaging Mounts 0.3X C-Mount, 0.4X C-Mount, 0.5X C-Mount, 0.7X C-Mount, 1.0X C-Mount
    Max Working Distance (standard) 86mm
    WD with 0.5x Barlow 160mm
    WD with 1.5x Barlow 50mm
    WD with 2.0x Barlow 39mm

  • VIDZ 650 0.5X Barlow Lens, WD = 160mm
    SKU OM-VIDZ-650-BL05
    Compatible With VIDZ 650
    Optical Accessory
    Barlow Lens Power 0.5X

  • VIDZ 650 0.3X Barlow Lens, WD = 270mm
    SKU OM-VIDZ-650-BL03
    Backorder ETA Dec 30, 2015
    Compatible With VIDZ 650
    Optical Accessory
    Barlow Lens Power 0.5X

  • V10 Boom Stand

    JW11 Boom Stand (Requires Hanging Bar Bracket)

    V6 Boom Stand

    V7 Articulating Boom Stand

    V7U U-Clamp Articulating Boom Stand

    V15 Boom Stand

    V15U U-Clamp Boom Stand
    SKU V10JW11V6V7V7UV15V15U
    Warranty  Omano Limited Lifetime Warranty Lifetime Limited WarrantyLifetime Limited Warranty
    Backorder ETA  Jan 17, 2018
    Stand
    Stand Class BoomBoomBoomBoomBoomBoomBoom
    Stand Type Single Arm BoomSingle Arm BoomDual Arm BoomArticulated BoomArticulated BoomDual Arm BoomDual Arm Boom
    Stand Features  SolidBall-Bearing Glide, Counter-weighted, Large Base PlateArticulatedArticulatedBall-Bearing Glide, Counter-weighted, Heavy Duty, Large Base PlateBall-Bearing Glide, Counter-weighted, Tabletop U-Clamp
    Base Width 254 mm254 mm330 mm330 mm330 mm254 mm254 mm
    Base Depth 254 mm254 mm330 mm330 mm330 mm254 mm254 mm
    Post Height 464 mm355 mm464 mm464 mm464 mm464 mm464 mm
    Post Diameter 38 mm38 mm38 mm38 mm38 mm38 mm38 mm
    View Center to Post Distance 527 mm432 mm495 mm673 mm673 mm514 mm514 mm
    Physical Construction Metal TubeSolid MetalSolid MetalSolid MetalSolid MetalSolid MetalSolid Metal
    Coating Type (Stand) Durable PowdercoatDurable PowdercoatDurable PowdercoatDurable PowdercoatDurable PowdercoatDurable PowdercoatDurable Powdercoat
    If HB Required
    Requires Separate Hanging Bar?  YesYesYesYesYes
    Hanging Bar Style ArticulableFixedArticulableArticulableArticulableArticulableArticulable
    If FB Mounts Direct
    Focus Block Mount Diameter  5/8in Pin 5/8in Pin5/8in Pin
    If FB Integrated
    Focus Controls  Coarse
    Focus Mechanism  Rack & Pinion
    Compatibility
    Head Ring Mount Diameter  76 mm

  • OMHB25 Hanging Bar
    SKU OMHB25
    If HB Required
    Hanging Bar Style Articulable
    If FB Mounts Direct
    Focus Block Mount Diameter 25 mm

  • OMHBB Hanging Bar Bracket
    SKU OMHBB

  • VIDZ 650 Standard Focus Block

    VIDZ 650 Coarse/Fine Focus Block
    SKU OM-VIDZ-650-FB11OM-VIDZ-650-FB10
    Backorder ETA  Sep 7, 2017
    Compatible With VIDZ 650 zoom bodyVIDZ 650 zoom body

  • 4.5W LED Ring Light for VIDZ 650

    80 LED Ring Light, Variable Intensity

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section

    Coaxial Light Adapter For VIDZ 650

    3W Coaxial LED Spotlight For VIDZ 650

    Single Fiber Optic Light Guide for VIDZ 650

    OMFOB NEW 150W Fiber Optic Light Source - 150
    SKU OM-VIDZ-650-LED96OMLED-80AOMLED-64AOMLED-144AOM-VIDZ-650-CKOM-VIDZ-650-LED3SPOTOM-VIDZ-650-FOSPOMFOB-150
    Warranty  1 year     1 Year
    Product Weight  1lb
    Compatible With VIDZ 650   VIDZ 650VIDZ 650
    Light Specs
    Illumination Type LEDLEDLEDLEDFiberopticLED Fiberoptic
    Ring Light Type  LEDLEDLED   Fiberoptic
    Ring Light Specification  80 LED90-265V Auto switching90-265V Auto switching
    Ring Light Power  8W
    Ring Light Control  VariableVariableVariable   Variable
    Bulb Accessory
    Bulb Voltage  21V
    Bulb Wattage  150W

  • VIDZ-650 0.5x C-Mount Adapter

    VIDZ-650 0.3x C-Mount Adapter
    SKU OM-VIDZ-650-CM05OM-VIDZ-650-CM03
    Product Display
    New YesYes
    Compatible With VIDZ 650 Zoom LensVIDZ 650 Zoom Lens
    Light Specs
    Illumination Type NoneNone
Magnification Chart

C-Mount

Adapter

Standard Configuration

VIDZ-650

Auxiliary Barlow Lens

0.3X

0.5X

1.5X

2.0X

Working distance 86mm

Working distance 270mm

Working distance 156mm

Working distance 50mm

Working distance 39mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

1.0X

6X - 50X

7 ~ 0.8

1.8X - 15X

23 ~ 2.8

3X - 25X

14 ~ 1.7

9X - 75X

5 ~ .6

12X - 100X  4 ~ .4

0.3X

1.8X - 15X

24 ~ 3

0.5X - 4.5X

84 ~ 9.3

0.9X - 7.5X

47 ~ 5.6

2.7X - 22.5X

15 ~ 1.8

 3.6X - 30X  11 ~ 1.8

0.4X

2.4X - 20X

17 ~ 1.9 0.7X - 6X 60 ~ 7 1.2X - 10X 35 ~ 4.2 3.6X - 30X 11 ~ 1.4 4.8X - 40X 8.8 ~ 1.1

0.5X

3X - 25X

14 ~ 1.7

0.9X - 7.5X

47 ~ 5.6

1.5X - 12.5X

 28 ~ 3  4.5X - 37.5X

9 ~1.1

6X - 50X 7 - .8

0.75X

 4.5X - 37.5X 9 ~ 1.1  1.4X - 13.3X 29 ~ 3.6 2.2X - 18.7X  19 ~ 2.2  6.7X - 56.2X 6.1 ~ .7  9X - 75X 5 ~ .5
