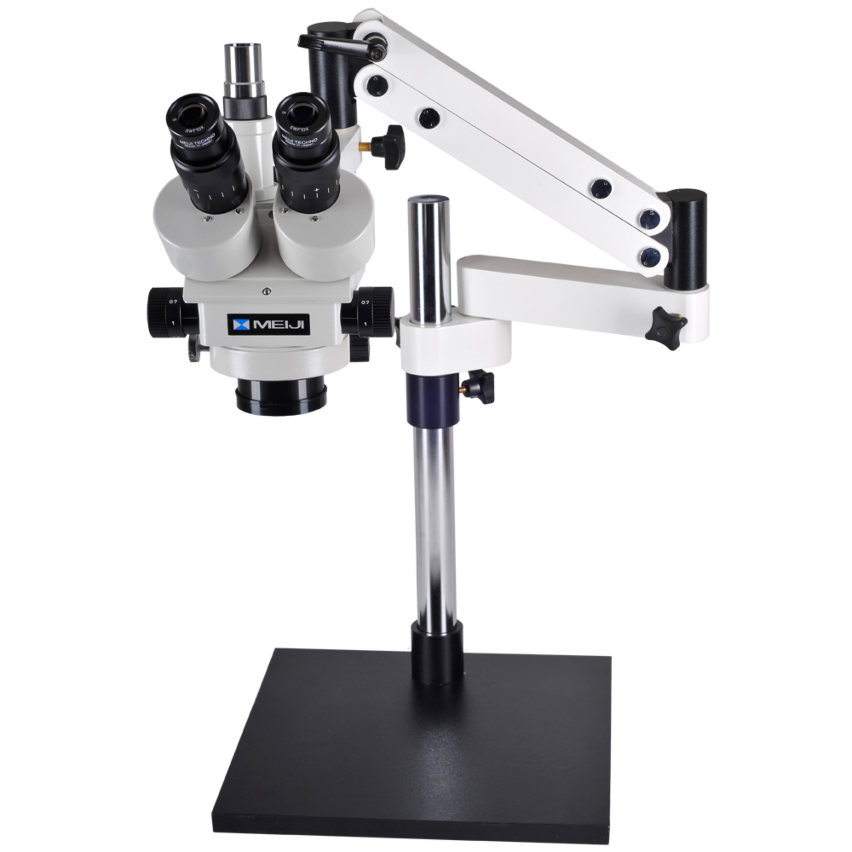

Meiji Techno EMZ5-V7 7x-45x Boom Stereo Microscope

List Price: $2,196.00

Starting at: $1,742.00

SKU: EMZ5-V7

Availability: In stock

  • Most popular Meiji stereo zoom microscope head
  • 0.7x-4.5x zoom magnification
  • Choice of eyepieces
  • Omano articulating arm V7 boom stand
  • Included ring light illuminators
  • Binocular or trinocular formats
  • Optional barlow lenses
  • Limited Lifetime Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

OMFB23 Focus Block, 84mm Ring   $60.00
OMHB25 Hanging Bar   $25.00
  • $10.00
  • $129.00
  • $129.00
  • $129.00
  • $129.00
  • $129.00
  • $129.00
  • $249.00
  • $88.00
  • $139.00
  • $209.00
  • $239.00
  • $499.00

Included in Bundle

Focus Block: OMFB23 Focus Block, 84mm Ring

Hanging Bar: OMHB25 Hanging Bar

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji EMZ5-V7 Articulating Boom Stand
  • Meiji EMZ5 Stereo Microscope Head
  • Meiji EMZ5 Stereo Trinocular Microscope Head
  • Omano V7 Articulating Boom Stand
  • Omano V7 Articulating Boom Stand Spring
  • Omano V7 Articulating Boom Stand U-Clamp
Description

Summary

The Meiji EMZ5-V7 combines Meiji's best-selling EMZ-5 0.75-4.5x stereo zoom microscope body with the flexibility of the Omano V7 articulating arm boom stand for an affordable and high quality inspection microscope. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.

Microscope Head

The EMZ-5 stereo head is by far the most popular Meiji stereo microscope head. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45° and includes interpupillary adjustment of 54mm-75mm. There are dual +/-5 diopters for convenient individual eye focusing. The head rotates through 360° for flexible viewing positions.

Available in binocular or trinocular format and also with click-stop detents for precise levels of magnification. The trinocular port directs light to the right eyetube and the trinocular tube simultaneously. Please note that a trinocular adapter is required to fit your camera.

An 84mm Omano focus ring is also included. Please call if you need an alternative Meiji focus ring.

Stand

The V7 articulating boom base weighs 57 lbs. yet folds into a 13 x 13" space when not in use. Well-balanced, stable with smooth, controlled movement, the arm's first link can be removed to achieve even greater stability. The pole stands 21" high and the spring-powered articulating arm has an effective horizontal extension of 35". An 84mm focus block and a 25mm hanging bar are included. The stand is also available with a robust U-Clamp attachment which can securely fasten to workbenches up to 2.5 inches thick.

As with most Omano boom stands, a hanging bar is included that enables angled viewing positions. The hanging bar bracket is spring-loaded so that the lever can be moved out of the way without having to release the pre-set position of the microscope head.

Optional Illumination

For convenience we offer a variety of ring lights and auxiliary barlow lenses with this microscope. Please call for alternative illumination solutions.

Omano Stereo Boom Stand Comparison

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • EMZ-5 Binocular 7.5X-45X Zoom Stereo Microscope Head

    EMZ-5D Binocular 7.5X-45X Zoom Stereo Microscope Head with Detents

    EMZ-5TR Trinocular 7.5X-45X Zoom Stereo Microscope Head

    EMZ5-TRD Trinocular 7.5X-45X Zoom Stereo Microscope Head with Detents

    EMZ-5H Binocular 7.5X-45X Zoom Stereo Microscope with Extended FOV (Req. MA522)
    SKU EMZ5EMZ5DEMZ5TREMZ5TRDEMZ5H
    Magnification Chart Meiji EMZ5 Magnification ChartMeiji EMZ5 Magnification ChartMeiji EMZ5 Magnification ChartMeiji EMZ5 Magnification ChartMeiji EMZ5 Magnification Chart
    Head
    Head Type BinocularBinocularTrinocularBinocularBinocular
    Optical Design Greenough ConvergedGreenough ConvergedGreenough ConvergedGreenough ConvergedGreenough Converged
    Magnification Type ZoomZoomZoomZoomZoom
    Ocular Angle 45°45°45°45°45°
    Ocular Tube Diameter 30.5 mm30.5 mm30.5 mm30.5 mm30.5 mm
    Barlow Mount Diameter 50 mm50 mm50 mm50 mm50 mm
    Diopter Adjustment DualDualDualDualDual
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 54mm - 75mm54mm - 75mm54mm - 75mm54mm - 75mm54mm - 75mm
    Trinocular Type  Prism Switching
    Trinocular Standard  23mm DIN
    Head Rotation 360 Degrees360 Degrees360 Degrees360 Degrees360 Degrees
    Minimum Objective (X) 0.70.70.70.70.7
    Maximum Objective (X) 4.54.54.54.54.5
    Zoom Control Type Smooth ContinuousDetent Click-StopsSmooth ContinuousDetent Click-StopsSmooth Continuous
    Zoom Indicator Graduations YesYesYesYesYes
    Parfocal YesYesYesYesYes
    Body
    Body Material All-MetalAll-MetalAll-MetalAll-MetalAll-Metal
    Compatibility
    Imaging Compatibility (with adapters)  23mm , C-Mount
    Available Imaging Mounts  0.3X C-Mount, 0.45X C-Mount, 0.5X C-Mount, 0.7X C-Mount, 1.0X C-Mount, 2.5X C-Mount, Open C-Mount (no lens)
    Head Ring Mount Diameter 84 mm84 mm84 mm84 mm84 mm
    Max Working Distance (standard) 93mm93mm93mm93mm93mm

  • V7 Articulating Boom Stand

    V7U U-Clamp Articulating Boom Stand
    SKU V7V7U
    Warranty Lifetime Limited WarrantyLifetime Limited Warranty
    Backorder ETA  Jan 17, 2018
    Stand
    Stand Class BoomBoom
    Stand Type Articulated BoomArticulated Boom
    Stand Features ArticulatedArticulated
    Base Width 330 mm330 mm
    Base Depth 330 mm330 mm
    Post Height 464 mm464 mm
    Post Diameter 38 mm38 mm
    View Center to Post Distance 673 mm673 mm
    Physical Construction Solid MetalSolid Metal
    Coating Type (Stand) Durable PowdercoatDurable Powdercoat
    If HB Required
    Requires Separate Hanging Bar? YesYes
    Hanging Bar Style ArticulableArticulable
    If FB Mounts Direct
    Focus Block Mount Diameter 5/8in Pin5/8in Pin

  • OMFB23 Focus Block, 84mm Ring
    SKU OMFB23
    If FB Integrated
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    If FB Mounts Direct
    Focus Block Mount Diameter 25 mm
    Compatibility
    Head Ring Mount Diameter 84 mm

  • OMHB25 Hanging Bar
    SKU OMHB25
    If HB Required
    Hanging Bar Style Articulable
    If FB Mounts Direct
    Focus Block Mount Diameter 25 mm

  • MA501 - 5X Super Widefield Paired Eyepieces

    MA718 - 7.5X Super Widefield Paired Eyepieces

    MA502 - 10X Super Widefield Paired Eyepieces

    MA520 - 12.5x Super Widefield Paired Eyepieces

    MA503 - 15X Super Widefield Paired Eyepieces

    MA504 - 20X Super Widefield Paired Eyepieces

    MA521 - 30X Super Widefield Paired Eyepieces

    MA519 - 10x Focusing Eyepiece (single)

    MA522 - SWF High EP 10x Paired Eyepieces (Req'd for EMZ-5H / 8TRH)
    SKU MA501MA718MA502MA520MA503MA504MA521MA519MA522
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes 30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Compatible With EM*EM*EM*EM*EM*EM*EM*EM*EM*
    Eyepiece Magnification 5x7.5x10x12.5x15x20x30x10x10x

  • MA600 Stereo Eyeshields (Pair)
    SKU MA600

  • 64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section
    SKU OMLED-64AOMLED-144A
    Illumination Type LEDLED
    Light Specs
    Ring Light Type LEDLED
    Ring Light Specification 90-265V Auto switching90-265V Auto switching
    Ring Light Control VariableVariable

  • MA530 Barlow Lens 0.3X WD 252mm

    MA525 Barlow Lens 0.44X WD 181mm

    MA517 Barlow Lens 0.5X WD 150mm

    MA526 Barlow Lens 0.75X WD 97mm

    MA507 Barlow Lens 1.5X WD 49mm

    MA511 Barlow Lens 2X WD 34mm
    SKU MA530MA525MA517MA526MA507MA511
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes Thread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mmThread M50, Pitch 0.75mm
    Compatibility
    Compatible With EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*EMZ-1, EMZ-2*, EMZ-5*, EMZ-6, EMZ-9, EMZ-13*
    Optical Accessory
    Barlow Lens Power 0.3X0.5X0.5X0.75X1.5X2.0X

  • MA151/35/05 C-Mount Adapter 0.5X for Meiji, with 21mm reticle mount
    SKU MA151/35/05

  • Summit SK2-1.3X 1.3MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-3.1X 3.1MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-5.2X 5.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-10X 10.0MP PC / MAC Compatible Digital Microscope Camera

    Summit SK2-14X 14.0MP PC / MAC Compatible Digital Microscope Camera
    SKU OCS-SK2-1.3XOCS-SK2-3.1XOCS-SK2-5.2XOCS-SK2-10XOCS-SK2-14X
    Warranty 1 Year1 Year1 Year1 Year1 Year
    Product Weight 2.00002.00002.00002.00002.0000
    Sensor
    Sensor Type CMOSCMOSCMOSCMOSCMOS
    Sensor Size 1/3 Inch1/2 Inch1/3 Inch1/3 Inch1/3 Inch
    Sensor Details Aptina MT9M111 CMOSAptina MT9T001 CMOSAptina MT9P001 CMOSAPTINA MT9J003 CMOSAPTINA MT9F002 CMOS
    Color/Monochrome ColorColorColorColorColor
    Pixel Pitch 3.6 µm x 3.6 µm3.2 µm x 3.2 µm2.2 µm x 2.2 µm1.7 µm x 1.7 µm1.4 µm x 1.4 µm
    Sensor Color Depth 8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB8bpp / 24bit RGB
    Scan Mode ProgressiveProgressiveProgressiveProgressiveProgressive
    Signal to Noise Ratio 44 db43 db40.5 db34 db35.5 db
    Sensitivity 1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)1.0V/Lux-sec (550nm)
    Dynamic Range 71 db61db66.5db65.2db63.5db
    A/D Conversion 10-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit RGB to PC12-bit Parallel, 8-bit R.G.B to PC12-bit Parallel, 8-bit R.G.B to PC
    Cooling System  NaturalNaturalNatural
    Shutter Electronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling ShutterElectronic, Rolling Shutter
    Camera
    Camera Mount C-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular MountC-Mount, Ocular Mount
    Resolution 1.3 Megapixel, 1280x1024 pixels3 Megapixel, 2048x1536 pixels5 Megapixel, 2592 X 1944 pixels10 Megapixel, 3584 X 2748 pixels14 Megapixel, 4096 x 3288 pixels
    Camera Output Resolutions 1280 X 1024; 640 X 512; 320 X 2562048 x 1536; 1024 x 768; 680 x 5102592 X 1944; 1280 X 960; 640 X 4803584 X 2748; 1792 x 1374; 896 X 6844096 x 3288; 2048 x 1644; 1024 x 822
    FPS @ Max Res [email protected]; [email protected]; [email protected][email protected]; [email protected]; [email protected]5fps @ 2592 X 19441.9fps @3584 x 27481.7fps @4096 x 3288
    FPS @ Min Res 50fps @ 320 x 25643fps @ 680 x 51060fps @ 640 X 48027fps @896 x 68427fps @1024 x 822
    Camera Interface USB 2.0USB 2.0USB 2.0USB 2.0USB 2.0
    White Balance Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, Manual
    Software Included OptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2ViewOptixCam K2View
    Driver API Compatibility DirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAINDirectX, TWAIN
    Power Source USB PoweredUSB PoweredUSB PoweredUSB PoweredUSB Powered
    File Formats BMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFFBMP, JPEG, Own Proprietary, PNG, TGA, TIFF
    Exposure Control Automatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, ManualAutomatic, Manual
    Exposure Time 2000ms-0.14Ms2000ms-0.128s2000ms-0.21s2000ms-0.21s0.4~2000ms, ROI Auto & Manual
    Operating Temperatures 10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C10°C ~ 50°C
    Operating Humidity 30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH30% ~ 80% RH
    Storage Temperature -20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C-20°C ~ 60°C
    Other Details
    Included Accessories 0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD0.5X 23mm DIN Adapter, Software CD
    Supported Operating Systems Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
    Certifications CE, ULCE, ULCE, ULCE, ULCE, UL
    Cable Length 1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)1.8m (8ft)
    Camera Warranty 1 Year1 Year1 Year1 Year1 Year
    Software Support 6 Months6 Months6 Months6 Months6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount23mm , C-Mount
Magnification Chart

Eyepiece

Standard Configuration

Meiji EMZ 5

Auxiliary Barlow Lens

0.3X

0.5X

0.75X

1.5X

Working distance 93mm

Working distance 251mm

Working distance 148mm

Working distance 97mm

Working distance 49mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

 10X

7X-45X

32.8 ~ 5.1

2.1X-13.5X

109 ~ 17

3.5X-22.5X

65.7-9.8

5.2X-33.7X 43.8 ~ 6.8 10.5X-67.5X 21.9 ~ 3.4

 15X

10.5X-67.5X

22 ~ 3.4

3.1X-20.2X

73 ~ 11.4

4.4X-28X

44 ~ 6.8 7.9X-50.6X 29.3 ~ 4.5 13.1X-84.4X 14.6 ~ 2.2

 20X

14X-90X

16.4 ~ 2.5

4.2X-27X

54.7 ~ 8.5

5.2X-33.4X

32.8 ~ 5.1 10.5X-67.5X 21.9 ~ 3.4 15.7X-101.2X 10.9 ~ 1.7

 30X

 21X-135X 11 ~ 1.7 36.6X-5.7X 36.6 ~ 5.7

10.5X-67.5X

22 ~ 3.4 15.8X-101.2X 14.6 ~ 2.2 31.5X-202.5X 7.3 ~ 1.1
