Meiji Techno MT8000 Series Metallurgical Microscopes

List Price: $7,035.00

Starting at: $6,399.00

SKU: MT8000/8100

Availability: In stock

  • Incident & transmitted illumination
  • Infinity Corrected Optical System
  • 4 Plan Epi Objectives
  • Binocular or trinocular
  • 30W vertical Koehler illumination
  • 30W halogen transmitted Koehler illumination
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

  • $1,150.00
  • $85.00
  • $85.00
  • $85.00

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

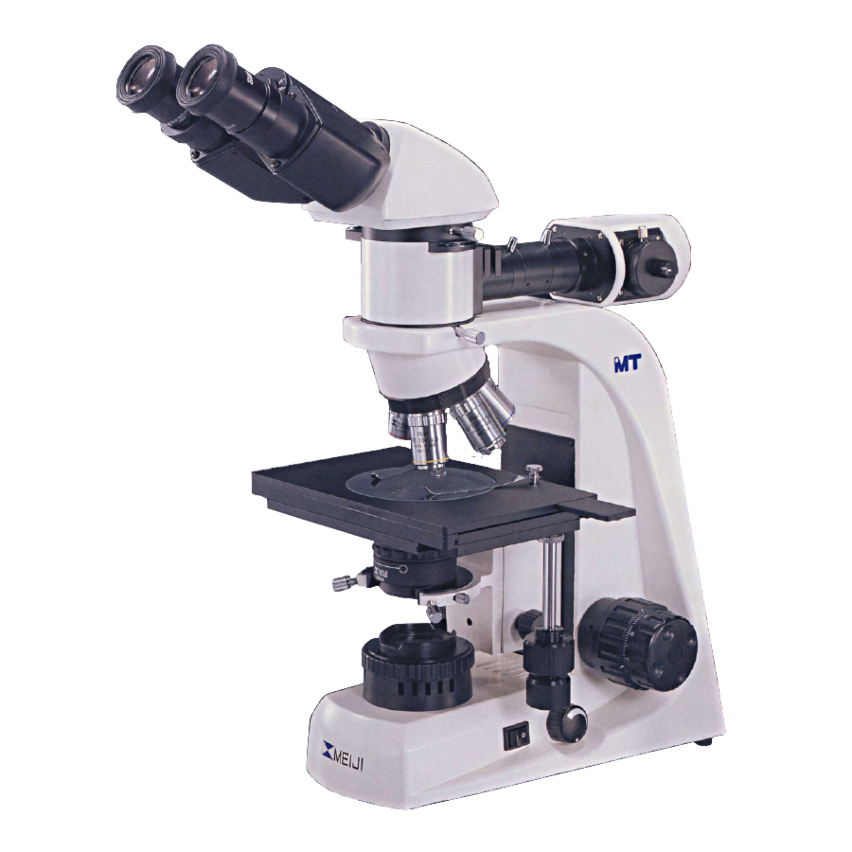

  • Meiji MT8000 Series Metallurgical Microscope
  • Meiji MT8000 Series Metallurgical Microscope Trinocular Head
  • Meiji MT8000 Series Metallurgical Microscope condenser
  • Meiji MT8000 Series Metallurgical Microscope eyepieces
  • Meiji MT8000 Series Metallurgical Microscope objectives


The MT8000 series are metallurgical microscopes purpose-built for both incident (reflected) and transmitted light observation of opaque or translucent specimens of metals, minerals and other materials. Available in either binocular or trincocular format, they include Meiji's infinity corrected optical system with four Plan Epi objectives and two SWH 10x eyepieces for magnification levels of 50x, 100x, 200x and 500x. Lifetime Limited Warranty.


A Siedentopf-type binocular head is available in binocular or trinocular format. The oculars are inclined at 30° with a diopter on the left ocular for individual eye focusing. Interpupillary adjustment is 53mm - 75mm. Two SWH 10x eyepieces (FN 22) are included. The four objectives are infinity corrected Plan Epi 5x, 10x, 20x, and 50x set in a ball-bearing mounted quintuple nosepiece.

An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. (100% to eyetubes or 80% to phototube & 20% to the eyetube.) 30mm ID eyetube. Please note that the trinocular port requires an adapter appropriate for your camera.

Stage & Focus

The mechanical stage is ceramic-coated and measures 191mm x 126mm. The range of movement is 100mm x 100mm and is includes low position drop down coaxial controls for X-Y movement. Focus controls are dual-sided with coaxial coarse/fine knobs.


Vertical Koehler illuminator with 6V 30W halogen lamp for brightfield and polarization microscopy. Included clear blue, clear green, ND 50 neutral density filter and polarizing filters in metal mounts for brightfield or reflected light polarization. In-base, transmitted illumination is 6V 30W halogen. Universal 110-240V voltage.


Illuminator, 4 filters, manual, dust cover

Specifications of Component Options

Select a component below to view related specifications.

  • MT8000 Binocular

    MT8100 Trinocular
    SKU MT8000MT8100
    Product Weight 14.000014.0000
    Product Length 255 mm255 mm
    Product Width 195 mm195 mm
    Product Height 395 mm395 mm
    System Type Brightfield, MetallurgicalBrightfield, Metallurgical
    Optical Design DIN 160mmDIN 160mm
    Head Type BinocularTrinocular
    Head Rotation  360 Degrees
    Ocular Angle 30°30°
    Diopter Adjustment DualDual
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 52 – 72 mm52 – 72 mm
    Trinocular Type  Switchable Beam-Split
    Trinocular Standard  C-mount
    View Orientation Inverted ViewInverted View
    Ocular Tube Diameter 23 mm23 mm
    Nosepiece Orientation Front-facingFront-facing
    Nosepiece Style Quadruple (4)Quadruple (4)
    Focus Controls Coarse & Fine, CoaxialCoarse & Fine, Coaxial
    Focus Mechanism Rack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual Ambidextrous
    Focus Controls Graduated? YesYes
    Stage Type Fixed with Attached Mechanical Slide HolderFixed with Attached Mechanical Slide Holder
    Stage Features Ceramic CoatedCeramic Coated
    Includes Eyepieces? YesYes
    Included Eyepiece Quantity 22
    Included Eyepieces (X) 10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Available Eyepieces 10X, 15X, 20X10X, 15X, 20X
    Min Standard Mag 50X50X
    Max Standard Mag 500X500X
    Included Objectives (Qty) 44
    Objective Lens PlanPlan
    Included Objective Types Brightfield, MetallurgicalBrightfield, Metallurgical
    Condenser Type Abbe BrightfieldAbbe Brightfield
    Condenser Features Achromatic, Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderAchromatic, Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder
    Condenser N.A. 1.25 mm1.25 mm
    Filter Diameter 30 mm30 mm
    Illumination Type HalogenHalogen
    Illumination Style Transmitted, IncidentTransmitted, Epi Metallurgical
    Collector Type KohlerKohler
    Collector Features Field DiaphragmField Diaphragm
    Transmitted Light Type HalogenHalogen
    Transmitted Light Specification 30W30W
    Transmitted Light Control VariableVariable
    Power Supply 120V AC120V AC
    Fuse 3A3A
    Included Extras Dust CoverDust Cover

  • MA874 Plan Epi Objective 100X
    SKU MA874
    Warranty Meiji Limited Lifetime Warranty
    Compatible With ML*
    Objective Lens Plan
    Objective Lens Power 100x

  • MA275/25 LB100, Blue clear 19.5mm filter in metal mount, fits 30mm filter slot

    MA275/30 G533, Green clear 19.5mm filter in metal mount, fits 30mm filter slot

    MA275/35 Y48, Yellow clear 19.5mm filter in metal mount, fits 30mm filter slot
    SKU MA275/25MA275/30MA275/35
    Compatible With ML54*, ML55*ML54*, ML55*ML54*, ML55*
    Illumination Type HalogenHalogenHalogen
    Bulb Accessory
    Bulb Voltage 12V12V12V
    Bulb Wattage 50W50W50W
