Motic

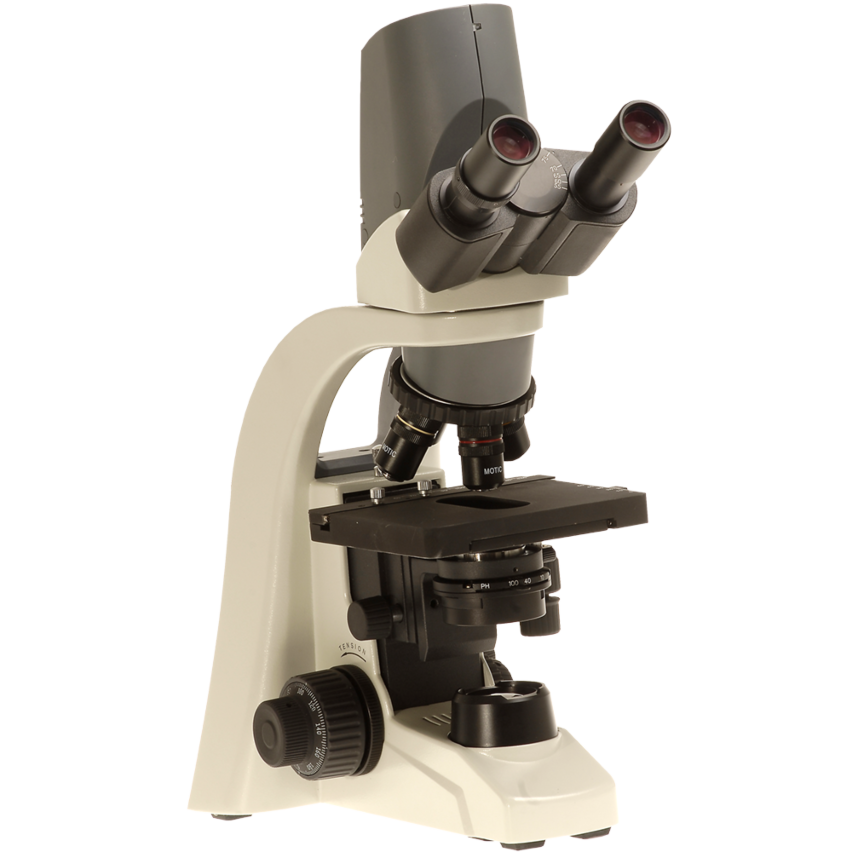

BA210-DL 5.0MP Digital Compound LED Microscope
In stock
SKU:
BA210-DL
- 5.0MP Resolution
- Infinity corrected optics
- Four CCIS EF-N Plan objectives
- Quadruple nosepiece
- WF High eyepoint eyepieces
- 1.25 NA focusable condenser
- Calibration slide for accuracy
- PC/Mac compatible
- MPN 1100401200771
You pay:
$2,450.00
Free Shipping
30 Day Money Back Guarantee
Live Chat
Summary
The Motic BA210 was designed for high school, college and Medical School applications. Using Motic's outstanding Color Corrected Infinity Optical System (CCIS), the entire optical path of the microscope has been optimized for maximum optic quality and digital image fidelity. Designed for a high level of performance and user comfort, this microscope is an ideal bridge between advanced student work and high-end microscopy applications. It includes is a 5.0 megapixel digital compound microscope with infinity corrected CCIS optics and four EF-N Plan objective lenses set in a quadruple nosepiece for a popular school microscope. 3W LED illumination. 5 year warranty.Microscope
The BA210 includes a Seindentopf head with integrated 5.0 megapixel camera built around a large 1/2" color sensor. This is important since most 5.0 megapixel microscope cameras include smaller sensors with lower quality resolution. The head is inclined at a more comfortable 30° and includes two WF10x/FN20mm eyepieces for improved field of view. There are dual diopters for individual eye focusing and interpupillary adjustment of 55mm-75mm. The heart of the optics is a CCIS infinity corrected system with four infinity corrected CCIS EF-N Plan objective lenses set in a reverse facing, quadruple nosepiece for more convenient sldie handling. Magnification levels include 40x, 100x, 400x and 1,000x. The 1.25NA Abbe condenser is focusable and centerable. There is a built-in mechanical stage with drop down coaxial controls. The stage measures 175mm x 140mm with vernier scale and a range of movement of 76x50mm. Rack and pinion focusing includes drop-down coaxial coarse/fine controls. Professional Koehler illumination is powered by 3W LED illumination. The power supply is switchable 110v-220V.Software
The Motic Images Plus 3.0 software is a powerful software suite that has impressed us. Users will find a familiar interface matched to either Windows or Macintosh OSX operating environments. The software allows for automatic object or cell counting, image and data capture, easy export of reports to spreadsheets , measurements, counting and even MP3 functionality so you can play music while you are working. Add narration or other sound clips to any image using this software this digital microscope turns into a true multimedia apparatus! Features include Measurement, Image Comparison for forensic or other applications, Editing and Enhancements, Counting and Auto Segmentation that facilitates counting. In our opinion, these are are unequaled features that are not found in competing products at this price point.Software Features
Measurement: Motic Measurements are easy to use and accurate owing to the quick, calibration process using Motic's certified calibration slide. Possible measurements include: Line, Circle, Rectangle, 3-Point Circle, 3-Point Arc, Polygon, Ellipse, Angle as well as Irregular shapes. All of the results are stored in a Measurement Table which can be exported to Excel with one click.
| Brand | Motic |
|---|---|
| Recommended For | 0 |
| System Type | Brightfield |
| Optical Design | Infinity Corrected |
| Head Type | Binocular |
| Head Rotation | 360 Degrees |
| Ocular Angle | 30° |
| Diopter Adjustment | Dual |
| Interpupillary Adjustment | Arc (Seidentopf) |
| Interpupillary Adjustment Range | 55 – 75 mm |
| Parfocal | Yes |
| Ocular Tube Diameter | 30 mm |
| Includes Eyepieces? | Yes |
| Included Eyepiece Quantity | 2 |
| Included Eyepieces (X) | 10X |
| Eyepiece Style | SWF Super Widefield (FN 20mm) |
| Available Eyepieces | 10X |
| Includes Eyecups? | No |
| Min Standard Mag | 40X |
| Max Standard Mag | 1000X |
| Nosepiece Orientation | Reversed |
| Nosepiece Style | Quadruple (4) |
| Focus Controls | Coarse & Fine |
| Focus Mechanism | Rack & Pinion |
| Focus Control Location | Dual Ambidextrous |
| Focus Controls Graduated? | Yes |
| Stage Type | Mechanical XY |
| Stage Features | Fingertip Controls |
| Stage Range of Movement (XY) | 76 mm X 36 mm |
| Stage Range Graduated? | Yes |
| Included Objectives (Qty) | 4 |
| Objective Lens | Plan |
| Included Objective Types | Brightfield |
| Included Objectives Parfocal Adjustable? | No |
| Objective 1 Description | 4X CCIS Infinity EF-N Plan |
| Objective 1 N.A. | 0.1 |
| Objective 1 W.D. | 6.3 mm |
| Objective 2 Description | 10X CCIS Infinity EF-N Plan |
| Objective 2 N.A. | 0.25 |
| Objective 2 W.D. | 3.9 mm |
| Objective 3 Description | 40X CCIS Infinity EF-N Plan (S) |
| Objective 3 N.A. | 0.65 |
| Objective 3 W.D. | 0.4 mm |
| Objective 4 Description | 100X CCIS Infinity EF-N Plan (S-Oil) |
| Objective 4 N.A. | 1.25 |
| Objective 4 W.D. | 0.12 mm |
| Condenser Type | Abbe Brightfield |
| Condenser Features | Iris Diaphragm |
| Condenser N.A. | 1.25 mm |
| Filter Diameter | 45 mm |
| Filters Included | Blue |
| Illumination Style | Transmitted |
| Collector Type | Simple |
| Transmitted Light Type | LED |
| Transmitted Light Specification | 3W |
| Transmitted Light Control | Variable |
| Power Supply | Universal Switching 100V-240V AC |
| Camera Interface | USB 2.0 |
| Sensor Type | CMOS |
| Sensor Size | 1/2 Inch |
| Color/Monochrome | Color |
| Pixel Pitch | 3.2 µm |
| Sensor Color Depth | 8bpp / 24bit RGB |
| Scan Mode | Progressive |
| Signal to Noise Ratio | 54 dB |
| FPS @ Max Res | 6fps |
| FPS @ Min Res | 45fps |
| Exposure Control | Area-of-Interest |
| White Balance | Area-of-Interest |
| Black Balance | Manual |
| Peltier Cooling | No |
| Software Included | Motic Images Plus 2.0ML |
| Driver API Compatibility | DirectX |
| Power Source | USB |
| File Formats | BMP |
| Included Accessories | Software CD, Calibration Slide Micrometer |
| Supported Operating Systems | Windows 7 |
| System Requirements | 2GB RAM Recommended |
| Camera Warranty | 1 Year |
| Reticles Available? | No |
| Included Extras | Immersion Oil |
| Case Included? | No |
