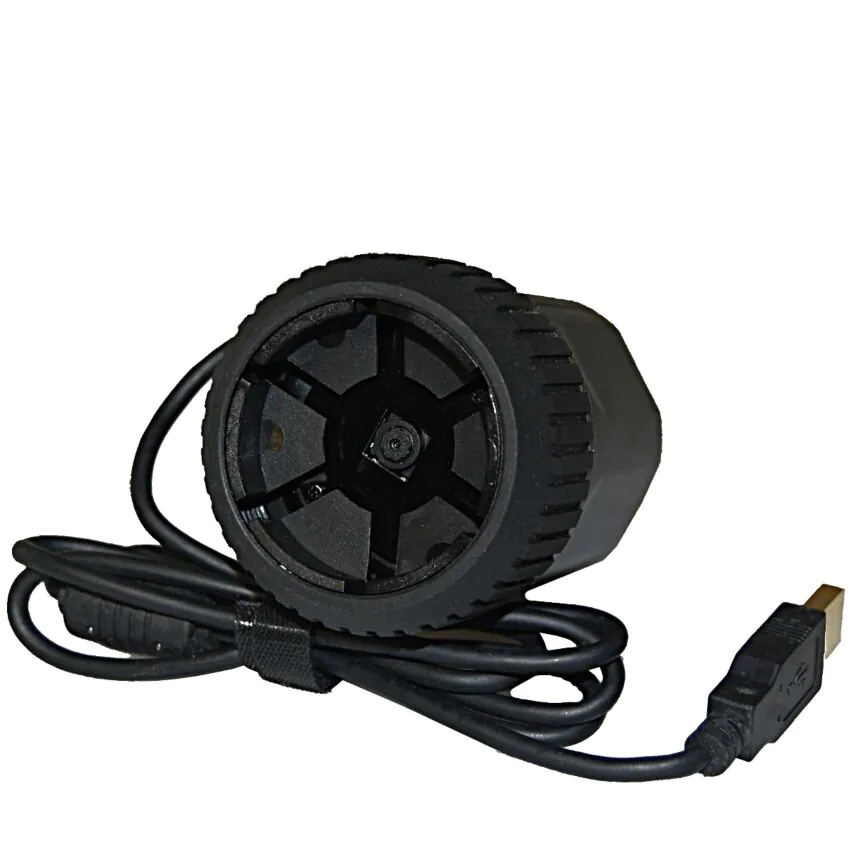

DM200 JuniorCam 2.0MP Color Digital Microscope Eyepiece Camera

SKU:

OCS-DM200

In stock

You pay: $59.00

30 Day Money Back Guarantee

Crisp 2.0 MP images
Fits eyepieces from 20mm to 43mm
Focusing knob for added sharpness
Not MAC compatible

Customer Support

Talk to one of our experts now!

Email Call

Product Details

DM200 Summary

The JuniorCam is yet another high-quality, affordable offering from Omano's lineup of digital microscope cameras. It brings sharp, 2.0MP live and capture resolution digital imaging microscopy to the home or classroom. It is also easy to install and use... you will enjoy clear, detailed color images on your PC monitor with a minimum of effort. The camera offers a fine focus knob and includes eyepiece adapters to fit 20mm to 43mm eyepieces.

USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. The refresh rate ranges from 10fps at maximum resolution to 30fps at 640 x 480.

Kopa Cam Software

The software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.

Accessories

Camera & USB2.0 cord, 7 adapter collars, software CD. Camera dimensions: 60mm diameter, 105mm height, 0.41 Lbs. Box dimensions: 5.5" long, 4" wide, 2.5" tall. Shipping weight - 1.0 Lbs.

More Information

More Information
Brand	OptixCam
Warranty	1 Year
Product Weight	2
Recommended For	0
Sensor Type	CMOS
Sensor Size	1/4 Inch
Color/Monochrome	Color
Filter	RGB Bayer Pattern
Pixel Pitch	2.2 µm x 2.2 µm
Sensor Color Depth	8bpp / 24bit RGB
Scan Mode	Progressive
Signal to Noise Ratio	40 dB
Dynamic Range	50 dB
Peltier Cooling	No
Shutter	Electronic
Camera Mount	Ocular Mount
Camera Output Resolutions	1600X1200; 1280X960; 800X600; 640X480; 320X240
FPS @ Max Res	10 FPS @ 1600 X 1200
FPS @ Min Res	60 FPS @ 320 X 240
Camera Interface	USB 2.0
White Balance	Automatic
Software Included	Kopa Cam
Driver API Compatibility	DirectX
Power Source	USB
File Formats	JPEG
Exposure Control	Automatic
Exposure Time	3.9ms - 320ms
Operating Temperatures	10°C ~ 50°C
Operating Humidity	30% ~ 80% RH
Storage Temperature	-20°C ~ 60°C
Included Accessories	Software CD
Supported Operating Systems	Windows 8
System Requirements	2GB RAM Recommended
Certifications	CE
Cable Length	1.8m (8ft)
Camera Warranty	1 Year
Software Support	6 Months
Imaging Compatibility (with adapters)	23mm
