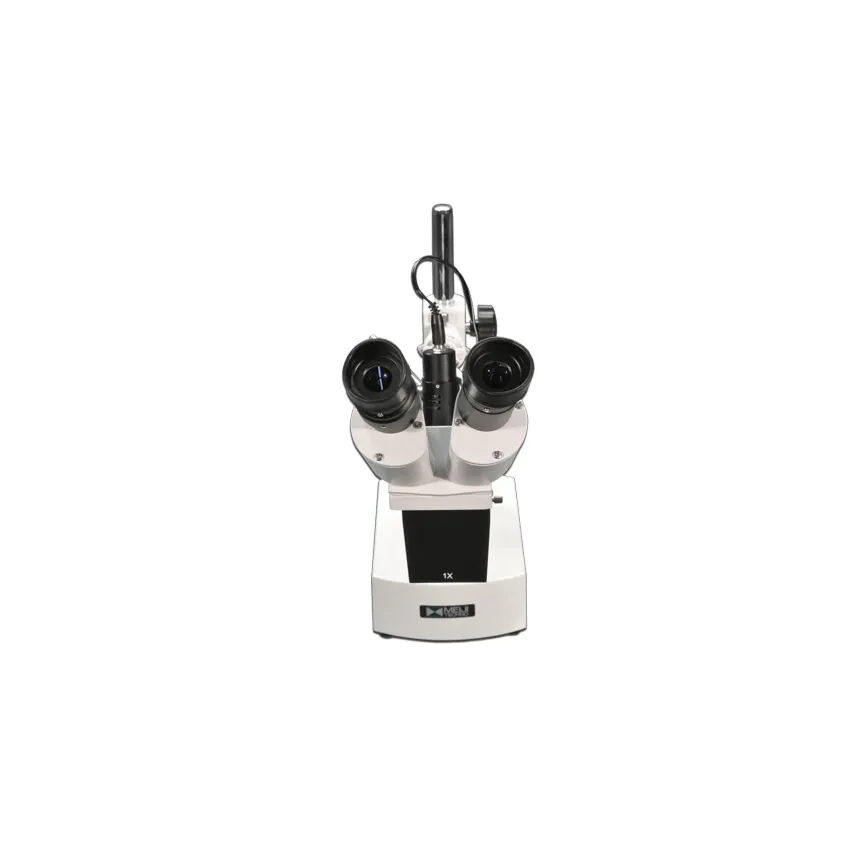

Meiji Techno BMK-3/LED Stereo Microscope
SKU:
BMK-3/LED
In stock
You pay: $830.00
Free Shipping,
30 Day Money Back Guarantee
- Optimized Magnification: Features a 10X total body magnification ideal for detailed inspections and laboratory tasks.
- Ergonomic Viewing: Equipped with 10X eyepieces and a 45° inclined eyetube angle to ensure user comfort during extended use.
- Integrated Lighting: Includes both an LED reflection illuminator and an oblique top light for versatile, high-contrast specimen illumination.
- Stable Design: Mounted on a durable post stand for easy height adjustments and structural stability.
- Universal Power Compatibility: Supports a wide input voltage range (AC100-240V, 50/60Hz) for global use.
Optical System & Body
| Magnification | 10X (Total System Magnification) |
| Optical System | Finite; Erect Image |
| Observation Head | Siedentopf Binocular; 45° Inclination |
| Working Distance | 230mm |
| Field of View | 20mm |
| Eyepieces | 10X Plan Eyepieces (30.5mm dia.); Left diopter adjustment ±5° |
| Interpupillary Distance | 55mm – 75mm |
Stand & Mechanical Construction
| Stand Type | Dual-hole Post Stand with Horizontal Arm |
| Movement | 360° Horizontal Rotation; 200mm Z-axis travel |
| Horizontal Arm | 190mm Length; 18mm Diameter |
| Base Dimensions | Rectangle Table Base (190 x 130 x 55mm) |
| Material & Finish | Metal construction; White spray paint finish |
Illumination & Power
| Light Source | LED Reflection (Oblique Top Light) |
| Power Supply | Input: AC 100-240V; Output: DC 6V (6W) |
| Connector | USA 3-Pin; 1.5m Cable Length |
Dimensions & Weight
Net Weight: 6.05kg (13.34 lbs)
Overall Size: 450 x 130 x 380mm (17.7" x 5.1" x 14.9")
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
