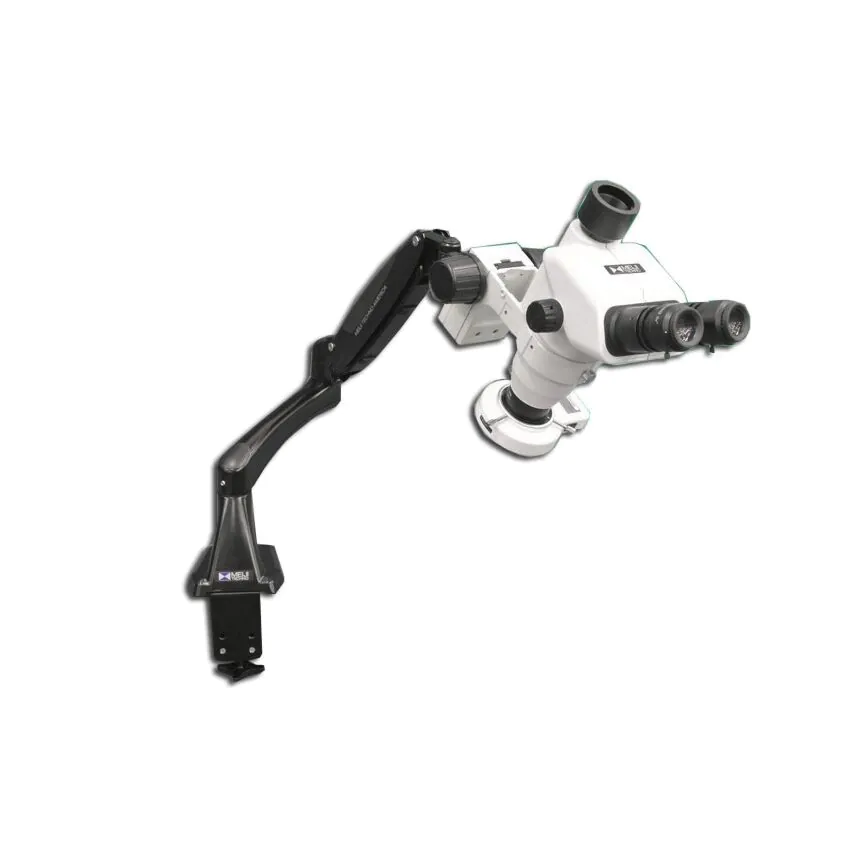

Meiji Techno EM-51/FA-6 Trinocular Zoom Stereo Microscope System

The Meiji Techno EM-51/FA-6 is a professional-grade solution designed specifically for precision industries such as jewelry engraving, watchmaking, and micro-electronics. Combining Japanese optical excellence with a versatile articulating arm, this system provides the ergonomic flexibility and crystal-clear resolution required for intricate detail work.

--- ## High-Performance Optics

Experience unparalleled depth of field and color accuracy. The EM-51 head offers a continuous zoom range, ensuring you never lose sight of your subject while adjusting magnification.

• Magnification Range: High-resolution 6.7x to 90x zoom.
• Eyepieces included: Paired 10x and 20x eyepieces for versatile viewing options.
• Ergonomic Viewing: 45° inclined tubes and 360° rotatable head to reduce neck strain during long sessions.
• Working Distance: Enhanced by the included 0.5x auxiliary lens, providing ample room for tools and engraving equipment.

--- ## FA-6 Articulating Engraving Stand

The FA-6 Articulating Stand is the centerpiece of this workstation. Designed for professionals who need to clear their bench space quickly, the table-clamp mount provides a rock-solid foundation without a bulky base.

• Triple-Jointed Maneuverability: Effortlessly glide the microscope into position or swing it out of the way when not in use.
• 76mm Inclinable Focus Block: Allows for precision focusing even at awkward angles, essential for 3D objects and engraving.
• Space-Saving Table Clamp: Securely attaches to any standard workbench, maximizing your available work surface.

--- ## Integrated Lighting & Power

Shadow-free illumination is critical for accurate engraving. This system includes a high-intensity LED Ring Light that provides cool, white light to highlight every detail of your workpiece.

• Auto-Voltage Sensing: The power supply automatically detects voltage, making it ready for global use.
• Consistent Brightness: Dimmable LED control to prevent glare on reflective metallic surfaces.

--- ### Technical Specifications Table

Feature	Specification
Microscope Head	EM-51 Trinocular (Camera Ready)
Magnification	6.7x - 90x
Stand Type	FA-6 Triple Joint Articulating Arm
Mounting	Heavy-Duty Table Clamp
Auxiliary Lens	0.5x (Included)
Illumination	LED Ring Light with Auto-Voltage Supply

Why Choose Meiji Techno? Known for "Legendary Japanese Quality," Meiji Techno microscopes are backed by a reputation for durability and optical precision that lasts a lifetime.

EM-51/FA-6 – Gem Binocular Engraving Zoom Stereo System

Technical Specifications: EM-51 Body

Body Type	Trinocular, 360° Rotatable, Cast Aluminum Alloy
Zoom Range & Ratio	6.7x – 45x (6.7:1 Ratio)
Working Distance	100mm (4”)
Field of View	32.8mm – 4.9mm
Magnification	6.7x – 45x (with included 10x eyepieces)
Eyetube Inclination	45° with Dual Dioptric Adjustment
Interpupillary Distance	54mm – 76mm
Mounting Compatibility	Fits 76mm Diameter Focus Holders

Hardware & Illumination

• FA-6/76 Articulating Arm: Table clamp stand with a 20” reach and 76mm coarse focus block. Features a 600mm total arm length and 0-85mm clamp opening.
• MA962 LED Ring Illuminator: 3.5W LED (6400K color temperature) providing over 19,000 LUX. Includes MA962/PT#1 adapter for EM-51 series.

Included & Optional Accessories

• MA1061: 10X Eyepieces (Paired) - Included
• MA1067: 0.5X Auxiliary Lens (Increases Working Distance to 177mm) - Optional
• MA1063: 20X Eyepieces (Paired) - Optional
