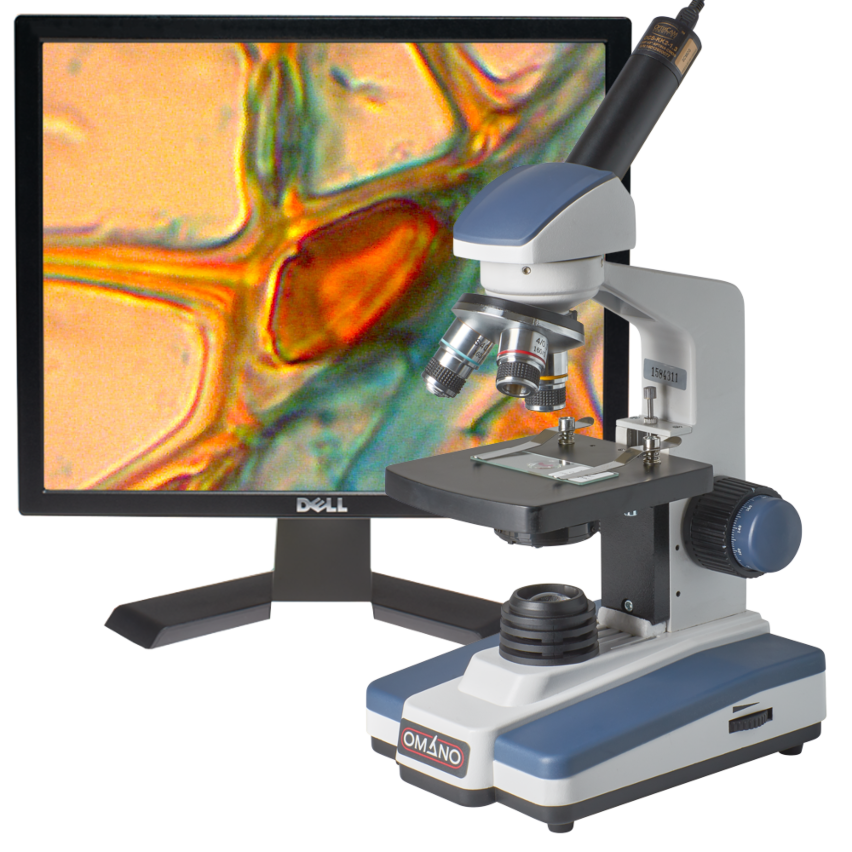

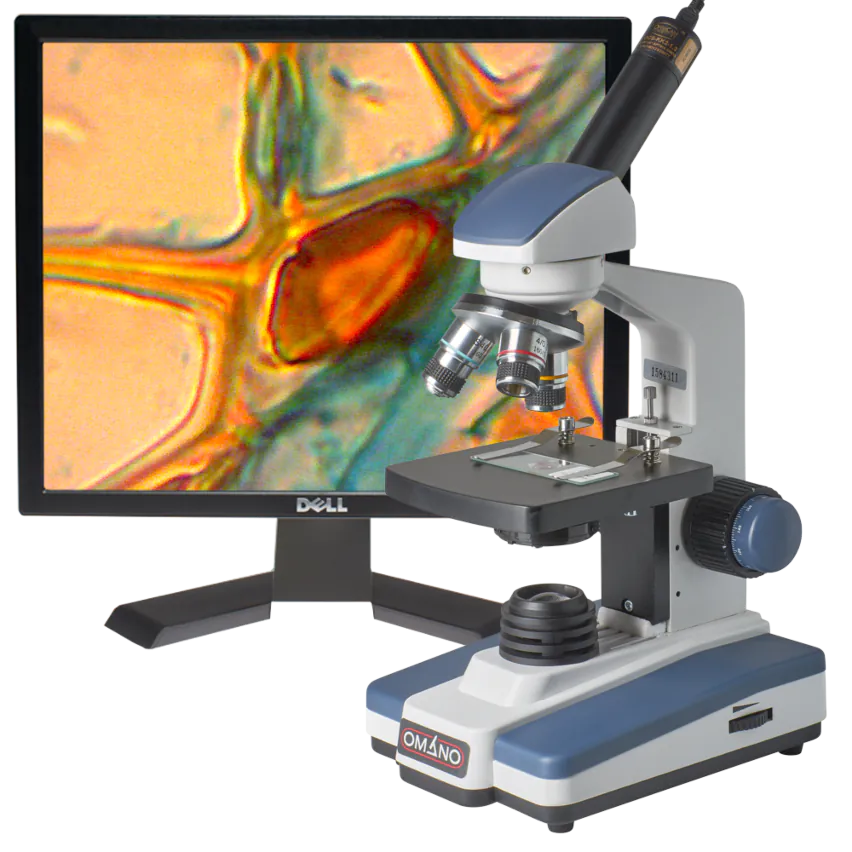

Omano OM118-M3 40X-400X Student Compound Microscope with 1.3MP Digital Camera

List Price: $327.00

Starting at: $188.00

SKU: OM118M3-KK2

Availability: In stock

  • The Perfect Digital Microscope Gift Package
  • 1.3 MP with excellent color resolution
  • Windows-only
  • Stills & Live Image video
  • Integrated 23mm ocular tube adapter
  • 40X, 100X, 400X magnification
  • Coaxial coarse/fine focus adjustment
  • Abbe 1.25 N.A condenser
  • FREE telephone support

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

OM118-M3 Monocular Compound Microscope   $129.00
Summit KK2-1.3 1.3MP Windows-Only Color Digital Camera   $59.00
  • $9.00
  • $19.00
  • $24.00
  • $24.00
  • $39.00

Included in Bundle

Microscope: OM118-M3 Monocular Compound Microscope

Microscope Camera: Summit KK2-1.3 1.3MP Windows-Only Color Digital Camera

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • OM118-M3 Compound Microscope with 1.3MP Digital Camera
  • OM118-M3 Compound Microscope with 1.3MP Digital Camera Package CAMERA
  • OM118-M3 Compound Microscope with 1.3MP Digital Camera Package CAMERA BACK
  • OM118-M3 Compound Microscope with 1.3MP Digital Camera 4
  • OM118-M3 Compound Microscope with 1.3MP Digital Camera 5
  • OM118-M3 Compound Microscope with 1.3MP Digital Camera 6
Description

Summary

This special offer combines our popular Omano OM118-M3 monocular microscope and our easy-to-use Optixcam Summit Series KK2 1.3MP digital camera, into an affordable and versatile digital microscopy lab, ideal for the home school or classroom setting. The OM-118-M3 features three achromatic objectives for viewing cell structures on slides and a 5 year Omano Lifetime limited warranty.

Optics

The Omano OM118-M3 is a high power monocular microscope used for viewing cellular structures on slides. The ocular is angled at an ergonomic 45 degrees and rotates through 360 degrees for flexible viewing. A single WF10x eyepiece combines with three achromatic objectives lenses (4x, 10x, 40x spring) for magnification levels of 40x, 100x, and 400x.

Stage & Focus

The microscope includes a plain stage with mechanical slide holder that enables easy slide movements on the stage. Focusing includes rack and pinion design for durability and coaxial coarse and fine focus controls. We recommend coaxial coarse/fine focus controls since they enable 'eyes down' focusing. In other words, the viewer does not constantly need to look up in order to find the other focus control.

This benefit is important in enhancing a student's experience and therefore in encouraging a more sustained interest in the microscope. Safety features include a rack stop to ensure that the stage does not impact with the objectives and thereby break the slides and a slip clutch control to mitigate the risk of damaging the focus controls through over extension.

Condenser

The condenser is Abbe 1.25 N. A with iris diaphragm for optimal adjustments. Transmitted illumination includes variable intensity.

Camera Summary

The new OptixCam Summit Series KK2 1.3MP digital microscope camera is a terrific way to turn any microscope into a fun and exciting learning tool for kids of all ages. Designed for students and young explorers, this sturdy and affordable little camera will out-perform any other camera in its price range. When used in place of a standard microscope eyepiece, students can now capture vivid images of that sea shell from vacation, the backyard butterfly, a drop of pond water, or Grandpa's coin collection.

It works well with Windows operating systems and the software installs quickly so kids can start capturing images and video. The camera includes a 23.2mm smooth bore ocular mount for mounting on the eyetube or trinocular port of most modern microscopes. We highly recommend this camera for the hobbyist, coin-collector, home-school educator and all general microscopy use.

Software

The included K2View software for Windows provides for excellent color rendering and fast image processing especially when capturing multiple images. Simple, intuitive and easy-to-use controls offer image capture, notation, geometric measuring and storage in JPG, BMP, TIFF, RAW format. The software also includes auto white balance, color enhancement, anti-flicker and other image-enhancing benefits. This software is not MAC-compatible.

Microscope Accessories

Includes dust cover, manual, spare bulb, spare fuse, immersion oil.

Camera Accessories

1.3MP Digital Camera with integrated 23mm adapter, CD-ROM Software disc, USB 2.0 cable.

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • OM118-M3 Monocular Compound Microscope
    SKU OM118-M3
    Warranty 5 Year Warranty
    Notes Upgrade from OM115 and OM116 and introduced as a more affordable alternative to the OM136. See OM-118-M4 for four objectives and slide holder.
    Best Seller Yes
    System
    System Type Brightfield
    Optical Design DIN 160mm
    Head
    Head Type Monocular
    Ocular Angle 45°
    Ocular Tube Diameter 23 mm
    Body
    Nosepiece Orientation Front-facing
    Nosepiece Style Triple (3)
    Focus Controls Coarse & Fine, Coaxial
    Focus Mechanism Rack & Pinion
    Focus Control Location Dual Ambidextrous
    Stage Type Fixed
    Stage Features Slide Clips
    Configuration
    Includes Eyepieces? Yes
    Included Eyepiece Quantity 1
    Included Eyepieces (X) 10X
    Eyepiece Style WF Widefield (FN 18mm)
    Min Standard Mag 40X
    Max Standard Mag 400X
    Included Objectives (Qty) 3
    Objective Lens Achromatic
    Included Objective Types Brightfield
    Condenser
    Condenser Type Simple Lens
    Condenser Features Iris Diaphragm
    Condenser N.A. 0.65 mm
    Illumination
    Illumination Type Incandescent
    Illumination Style Transmitted
    Collector Type Simple
    Transmitted Light Type Incandescent
    Transmitted Light Specification 110V 20W
    Transmitted Light Control Variable
    Power Supply 110V Only
    Compatibility
    Imaging Compatibility (with adapters) 23mm
    Reticle Diameter (12.5X Eyepiece) test
    Accessories
    Included Extras Dust Cover, Spare Bulb, Spare Fuse

  • Summit KK2-1.3 1.3MP Windows-Only Color Digital Camera
    SKU OCS-KK2-1.3
    Warranty 1 Year
    Product Weight 2.0000
    Product Display
    New Yes
    Sensor
    Sensor Type CMOS
    Sensor Size 1/3 Inch
    Color/Monochrome Color
    Pixel Pitch 3.6 µm x 3.6 µm
    Sensor Color Depth 8bpp / 24bit RGB
    Scan Mode Progressive
    Shutter Electronic, Rolling Shutter
    Camera
    Camera Mount Ocular Mount
    Resolution 1.3 Megapixel, 1280x1024 pixels
    Camera Output Resolutions 1280 X 1024; 640 X 512; 320 X 256
    FPS @ Max Res 7.5fps @ 1280 x 1024
    FPS @ Min Res 12.5fps @ 800 x 600
    Camera Interface USB 2.0
    White Balance Automatic, Manual
    Software Included OptixCam K2View
    Driver API Compatibility DirectX, TWAIN
    Power Source USB Powered
    File Formats JPEG
    Exposure Control Automatic, Manual
    Exposure Time 2000ms-0.14Ms
    Operating Temperatures 10°C ~ 50°C
    Operating Humidity 30% ~ 80% RH
    Storage Temperature -20°C ~ 60°C
    Other Details
    Included Accessories 0.5X 23mm Ocular adapter, Software CD
    Supported Operating Systems Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+, Linux (kernel 2.6.26+)
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
    Certifications CE, UL
    Cable Length 1.8m (8ft)
    Camera Warranty 1 Year
    Software Support 6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm

  • Pack 1: Book & 5 Prepared Slides

    Pack 2: Book, Starter Slide & Stain Kit & 5 Prepared Slides

    Pack 3NA: Book, Slide Kit & 15 Prepared Non-Animal Slides

    Microbiology Kit with Starter Slide Kit & Book
    SKU PACK-1PACK-2PACK-3NAOMSK-MICRO
    Notes  $13.50 cost
    Product Weight 1.00001.00001.00001.0000
    Product Display
    New  Yes

  • Mechanical Slide Holder
    SKU OMXY-136
    Notes Fits OM136C Series, OMTM85 Series. NOTE: Attachment may obstruct free rotation of objective lens turret. Function is not impaired, but please take care that you do not damage the lenses.
    Compatibility
    Compatible With OM136C*, OMTM85*
