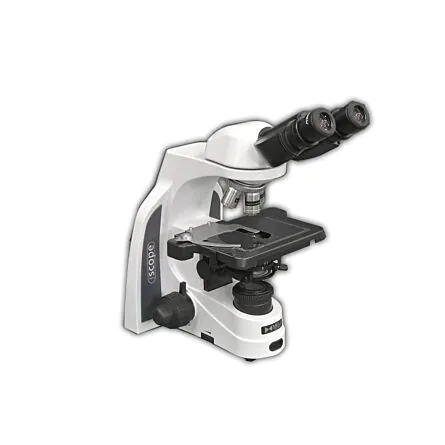

Meiji Techno MT5310EL/LBC Advanced LED Trinocular Microscope – Ergonomic Brightfield & Phase Contrast, Live Blood Cell Observation

SKU:

MT5310EL/LBC

In stock

You pay: $5,870.00

Free Shipping,

30 Day Money Back Guarantee

Advanced ICOS™ Optics: Features Meiji Techno’s Infinity Corrected Optical System with U.Plan Phase objectives, delivering exceptionally sharp, high-contrast images for Brightfield and Phase Contrast applications.
Customizable Ergonomics: Equipped with a tilting trinocular head adjustable from 10° to 50°, reducing neck and back strain during extended laboratory observation sessions.
Precision Japanese Engineering: Built with a smooth ball-bearing quintuple nosepiece and a rugged, expanded stage for superior durability and fluid objective transitions.
High-Intensity LED Illumination: Provides consistent, true-to-life color rendering with a long-life LED light source, ideal for critical clinical research and documentation.
User-Centric Design: Includes a 30mm eyetube for a wider field of view and a sealed, smooth-operating field iris to ensure reliable performance in demanding environments.

Customer Support

Talk to one of our experts now!

Email Call

Product Details

Advanced Ergonomic Research Microscope for Phase Contrast & Brightfield

The MT5310EL/LBC Series represents Meiji Techno America’s premier research-grade microscope system. Engineered for high-stakes clinical and research applications, this system integrates the world-renowned ICOS™ (Infinity Corrected Optical System) with all-new U.Plan Phase optics. The result is an instrument that delivers exceptionally sharp, high-contrast images with superior color rendition.

Designed and manufactured 100% in Japan, the MT5310EL/LBC is built for durability and precision, ensuring that researchers and laboratory specialists can achieve repeatable, high-accuracy results in every session.

Superior Ergonomics for Long-Term Comfort

The standout feature of the MT5310EL/LBC is its customizable ergonomic tilting head. Designed to prevent neck and back fatigue during extended observation, the viewing angle can be adjusted vertically from 10° to 50°. This flexibility allows users of various heights to maintain a natural, relaxed posture, significantly increasing productivity in high-volume laboratories.

Key Features & Performance Highlights

Premium U.Plan Phase Optics: Newly designed objectives provide superior flat-field imaging for both Brightfield and Phase Contrast observation.
30mm Super Widefield Eyepieces: Larger eyetube diameters provide a wider field of view and enhanced viewing comfort compared to standard models.
High-Intensity LED Illumination: Provides true-to-life color temperatures and consistent brightness without the heat or maintenance of halogen bulbs.
Expanded Ceramic Stage: A smooth-operating, chemical-resistant stage designed for easy specimen manipulation and long-term durability.
Japanese Precision Engineering: Features a ball-bearing quintuple nosepiece and ultra-precise coaxial coarse and fine focus controls.

Technical Specifications

Optical System
Optical System	ICOS™ Infinity Corrected Optical System (F=200mm)
Head Type	Ergonomic Tilting Trinocular (10° to 50° adjustment)
Objectives	U.Plan Phase Contrast (4x, 10x, 40x, 100x oil)
Nosepiece	Quintuple, ball-bearing mounted for smooth indexing
Mechanical & Electrical
Stage	Hard-coated ceramic surface with low-position ergonomic controls
Illumination	Lambertian LED system for uniform brightness
Condenser	Zernike Phase Contrast Condenser with centerable phase annuli
Manufacturing	100% Made in Japan

Clinical Applications: The MT5310EL/LBC is the ideal choice for laboratories requiring high-resolution Phase Contrast for observing unstained biological specimens, live cell cultures, and hematological samples.

Invest in Japanese Precision

Enhance your lab’s diagnostic capabilities with the MT5310EL/LBC ergonomic series.

More Information

More Information
Brand	Meiji Techno
Warranty	Limited Lifetime Warranty
Product Weight	19.2
Product Length	390 mm
Product Width	210 mm
Product Height	465 mm
Recommended For	0
System Type	Brightfield
Optical Design	Infinity Corrected
Head Type	Trinocular
Head Rotation	360 Degrees
Ocular Angle	Variable Ergonomic
Diopter Adjustment	Single
Interpupillary Adjustment	Arc (Seidentopf)
Interpupillary Adjustment Range	53 – 75 mm
Trinocular Type	Switchable Beam-Split
Trinocular Standard	23mm DIN
Trinocular Tube Focusable?	No
Parfocal	No
View Orientation	Inverted View
Ocular Tube Diameter	30 mm
Nosepiece Orientation	Reversed
Nosepiece Style	Quintuple (5)
Focus Controls	Coarse & Fine
Focus Mechanism	Rack & Pinion
Focus Control Location	Dual Ambidextrous
Focus Controls Graduated?	Yes
Stage Type	Mechanical XY
Stage Features	Ceramic Coated
Stage Range Graduated?	No
Includes Eyepieces?	Yes
Included Eyepiece Quantity	2
Included Eyepieces (X)	10X
Eyepiece Style	SWF Super Widefield (FN 22mm)
Includes Eyecups?	No
Min Standard Mag	100X
Max Standard Mag	1000X
Included Objectives (Qty)	4
Objective Lens	Plan
Included Objective Types	Phase Contrast
Included Objectives Parfocal Adjustable?	No
Condenser Type	Zernike Phase
Condenser Features	Iris Diaphragm
Condenser N.A.	1.25 mm
Filter Diameter	44 mm
Illumination Type	LED
Illumination Style	Transmitted
Collector Type	Kohler
Collector Features	Field Diaphragm
Transmitted Light Type	LED
Transmitted Light Specification	LED
Transmitted Light Control	Variable
Power Supply	110V-230V AC Auto Voltage Sensing
Imaging Compatibility (with adapters)	23mm
Available Imaging Mounts	0.3X C-Mount
Reticles Available?	No
Included Extras	Dust Cover
Case Included?	No
