Meiji Techno MT8500 Series BF/DF Metallurgical Microscopes

List Price: $9,030.00

Starting at: $8,199.00

SKU: MT8500/8510

Availability: In stock

  • Incident & transmitted illumination
  • Brightfield and darkfield capabilities
  • Infinity Corrected Optical System
  • 4 Plan Epi Objectives
  • Binocular or trinocular
  • 30W vertical Koehler illumination
  • 30W halogen transmitted Koehler illumination
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

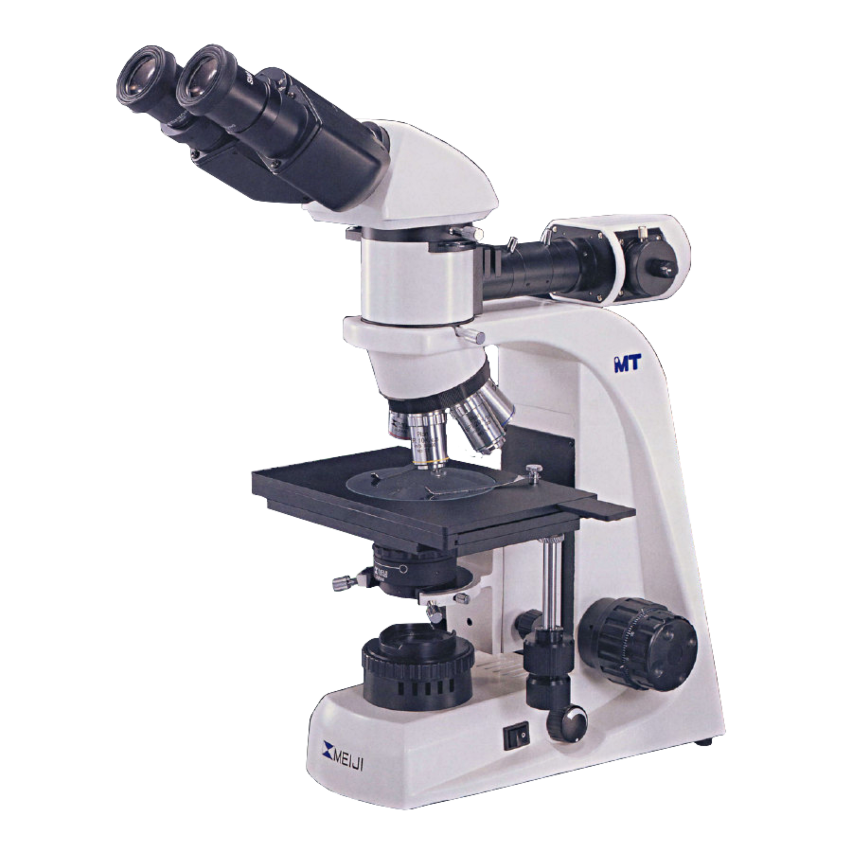

  • Mieji MT8000 Series Metallurgical Microscope
  • Meiji MT8000 Series Metallurgical Microscope trinocular head
  • Mieji MT8000 Series Metallurgical Microscope condenser
  • Mieji MT8000 Series Metallurgical Microscope focus controls
  • Mieji MT8000 Series Metallurgical Microscope objectives
Description

Summary

The MT8500 series are metallurgical microscopes purpose-built for both incident (reflected), transmitted and darkfield observation of opaque or translucent specimens of metals, minerals and other materials. Available in either binocular or trinocular format, they include Meiji's infinity corrected optical system with four Plan Epi BD objectives and two SWH 10x eyepieces for magnification levels of 50x, 100x, 200x and 500x. Illumination includes vertical and transmitted 30W halogen. Lifetime Limited Warranty.

Optics

A Siedentopf-type binocular head is available in binocular or trinocular format. The oculars are inclined at 30° with a diopter on the left ocular for individual eye focusing. Interpupillary adjustment is 53mm - 75mm. Two SWH 10x eyepieces (FN 22) are included. The four objectives are infinity corrected Plan Epi 5x, BD10x, BD20x, and BD50x set in a ball-bearing mounted quintuple nosepiece.

An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. (100% to eyetubes or 80% to phototube & 20% to the eyetube.) 30mm ID eyetube. Please note that the trinocular port requires an adapter appropriate for your camera.

Stage & Focus

The mechanical stage is ceramic-coated and measures 191mm x 126mm. The range of movement is 100mm x 100mm and is includes low position drop down coaxial controls for X-Y movement. Focus controls are dual-sided with coaxial coarse/fine knobs.

Illumination

Vertical Koehler illuminator with 6V 30W halogen lamp for brightfield and polarization microscopy. Included clear blue, clear green, ND 50 neutral density filter and polarizing filters in metal mounts for brightfield or reflected light polarization. In-base, transmitted illumination is 6V 30W halogen. Universal 110-240V voltage.

Accessories

Illuminator, 4 filters, manual, dust cover
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • MT8520 Binocular

    MT8530 Trinocular

    MT8530EL Ergonomic Trinocular Head LED
    SKU MT8520MT8530MT8530EL
    Notes
    Product Weight 14.000014.000014.0000
    Product Length 255 mm255 mm255 mm
    Product Width 195 mm195 mm195 mm
    Product Height 395 mm395 mm395 mm
    System
    System Type Brightfield, Darkfield, MetallurgicalBrightfield, Darkfield, MetallurgicalBrightfield, Darkfield, Metallurgical
    Optical Design DIN 160mmDIN 160mmDIN 160mm
    Head
    Head Type BinocularTrinocularTrinocular
    Head Rotation  360 Degrees360 Degrees
    Ocular Angle 30°30°30°
    Diopter Adjustment DualDualDual
    Interpupillary Adjustment Arc (Seidentopf)Arc (Seidentopf)Arc (Seidentopf)
    Interpupillary Adjustment Range 52 – 72 mm52 – 72 mm52 – 72 mm
    Trinocular Type  Beam Split ContinuousBeam Split Continuous
    Trinocular Standard  23mm DIN23mm DIN
    View Orientation Inverted ViewInverted ViewInverted View
    Ocular Tube Diameter 23 mm23 mm23 mm
    Body
    Nosepiece Orientation Front-facingFront-facingFront-facing
    Nosepiece Style Quadruple (4)Quadruple (4)Quadruple (4)
    Focus Controls Coarse & Fine, CoaxialCoarse & Fine, CoaxialCoarse & Fine, Coaxial
    Focus Mechanism Rack & PinionRack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual AmbidextrousDual Ambidextrous
    Focus Controls Graduated? YesYesYes
    Stage Type Fixed with Attached Mechanical Slide HolderFixed with Attached Mechanical Slide HolderFixed with Attached Mechanical Slide Holder
    Stage Features Ceramic CoatedCeramic CoatedCeramic Coated
    Configuration
    Includes Eyepieces? YesYesYes
    Included Eyepiece Quantity 222
    Included Eyepieces (X) 10X10X10X
    Eyepiece Style SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)SWF Super Widefield (FN 20mm)
    Available Eyepieces 10X, 15X, 20X10X, 15X, 20X10X, 15X, 20X
    Min Standard Mag 50X50X50X
    Max Standard Mag 500X500X500X
    Included Objectives (Qty) 444
    Objective Lens PlanPlanPlan
    Included Objective Types Brightfield, Darkfield, MetallurgicalBrightfield, Darkfield, MetallurgicalBrightfield, Darkfield, Metallurgical
    Condenser
    Condenser Type Abbe BrightfieldAbbe BrightfieldAbbe Brightfield
    Condenser Features Achromatic, Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderAchromatic, Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter HolderAchromatic, Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder
    Condenser N.A. 1.25 mm1.25 mm1.25 mm
    Filter Diameter 30 mm30 mm30 mm
    Illumination
    Illumination Type  HalogenHalogen
    Illumination Style TransmittedTransmittedTransmitted
    Collector Type KohlerKohlerKohler
    Collector Features Field DiaphragmField DiaphragmField Diaphragm
    Transmitted Light Type HalogenHalogenHalogen
    Transmitted Light Specification 12V 30W12V 30W12V 30W
    Transmitted Light Control VariableVariableVariable
    Incident Light Type HalogenHalogenHalogen
    Incident Light Specification 12V 50W12V 50W12V 50W
    Power Supply 120V AC120V AC120V AC
    Fuse 3A3A3A
    Accessories
    Included Extras Dust CoverDust CoverDust Cover
