Precision Imaging for Micro-Components

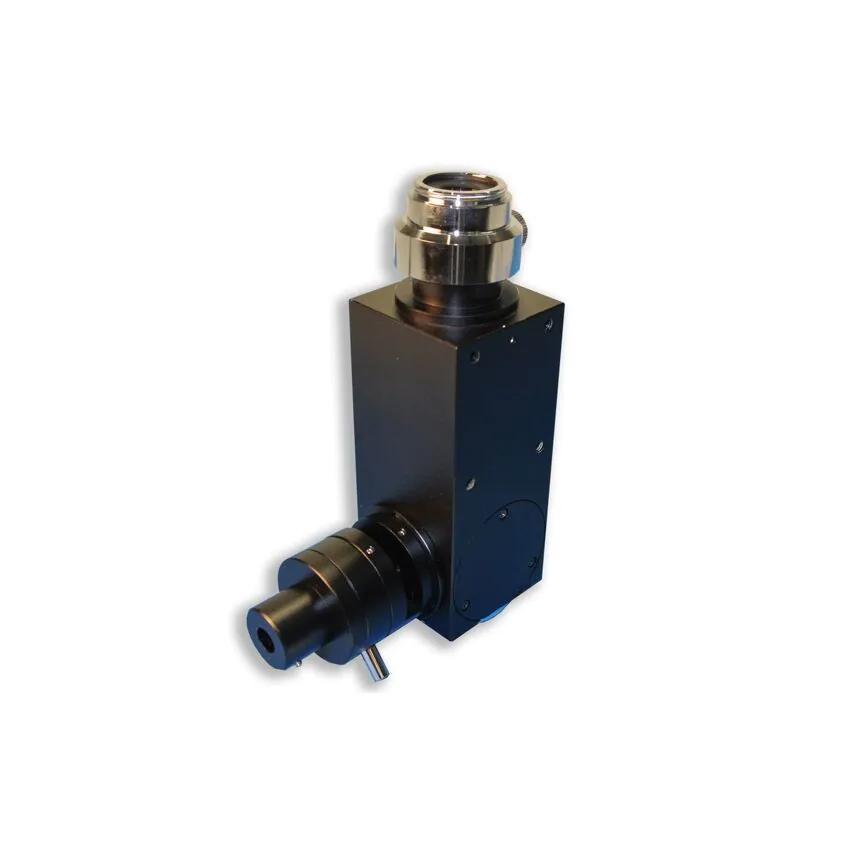

The VM & VM-LED Series high-resolution video microscopes are engineered for the rigorous demands of modern industrial inspection. Designed specifically for viewing small electronic components, wave-guides, electro-mechanical assemblies, and medical devices like catheters and seals, these systems provide the clarity needed for high-magnification visual analysis.

By integrating a CCD video camera, advanced fiber optic illumination, and high-resolution infinity-corrected optics, the VM Series serves as an ideal solution for both manual inspection and integrated machine vision applications.

VM Series Key Features & Benefits

• Superior Magnification: Achieve on-screen video magnification from less than 40X up to 5500X.
• Versatile Optics: Wide range of objectives available (2.5X to 100X) with a single port or optional triple/quadruple nosepieces.
• Infinity-Corrected System: Accepts RMS thread objectives with a 200mm focal length for distortion-free imaging.
• Compact & Rugged: Features a durable aluminum housing and a space-saving pole stand with coarse and fine focus.
• Seamless Integration: "C" Mount connectivity and a flat-surface mounting design (M4 X M6 threaded holes) make it perfect for OEM and machine vision setups.
• Advanced Illumination: Fiber optic coaxial “cool light” systems with field iris and drop-in filter support.
• Field Portable: Compatible with self-powered cameras and light sources for inspection on the go.

Technical Specifications
