Professional-Grade Video Microscopy

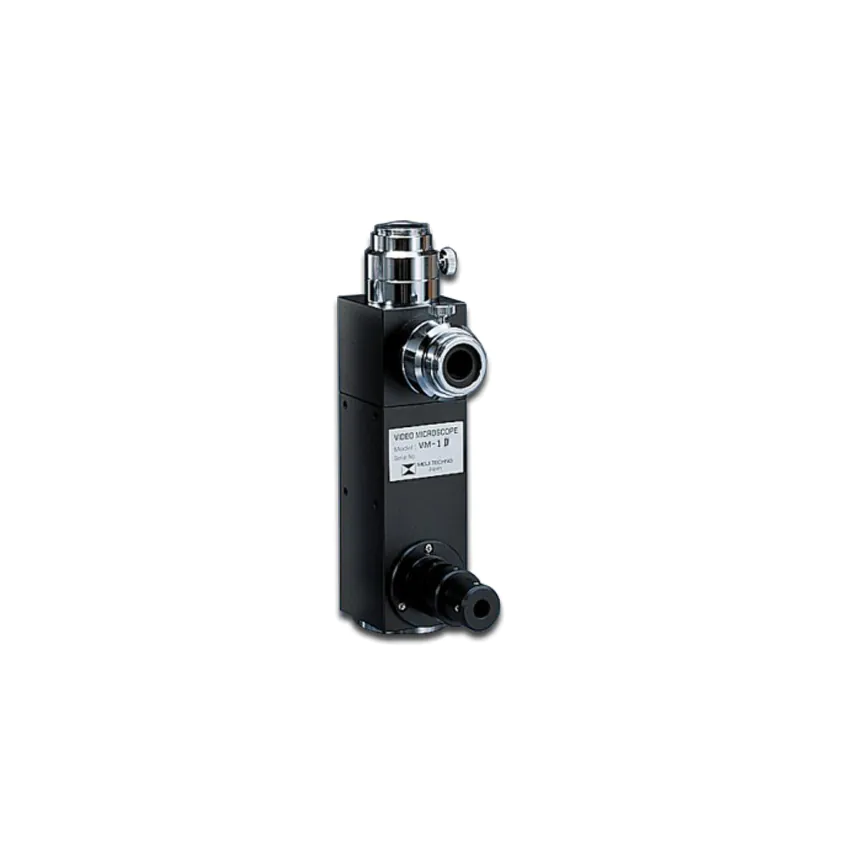

The VM & VM-LED Series are high-resolution video microscopes engineered for the rigorous demands of industrial inspection. Specifically designed for viewing intricate components like wave-guides, electro-mechanical assemblies, medical catheters, and micro-electronics, these units deliver the clarity required for high-magnification quality control.

By integrating CCD video technology with high-resolution infinity-corrected optics, the VM Series serves as a versatile solution for both standalone inspection and seamless integration into automated machine vision systems.

Key Features & Performance

• Superior Optics: Outstanding high-resolution imaging with a wide range of objectives from 2.5X to 100X.
• Extreme Magnification: Achieve on-screen video magnification from less than 40X to over 5500X.
• Flexible Configuration: Choose from a single objective port or optional triple/quadruple nosepieces for rapid switching.
• Industrial Compatibility: Accepts infinity-corrected objectives (RMS thread, 200mm focal length) and standard C-Mount cameras.
• Robust Construction: Housed in rugged aluminum for durability in factory environments.
• Advanced Illumination: Features fiber optic coaxial “cool light” systems with field iris and drop-in filter support to prevent heat damage to sensitive samples.
• Portable & Versatile: Compact pole stands with coarse/fine focus; easily mountable to flat surfaces or portable for field use with self-powered accessories.

Technical Specifications

Ready to Enhance Your Inspection Process?

Whether you need a standalone inspection station or a machine vision component, the VM Series offers the modularity to fit your workflow.
