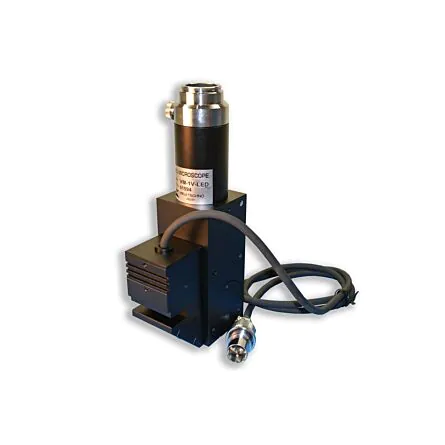

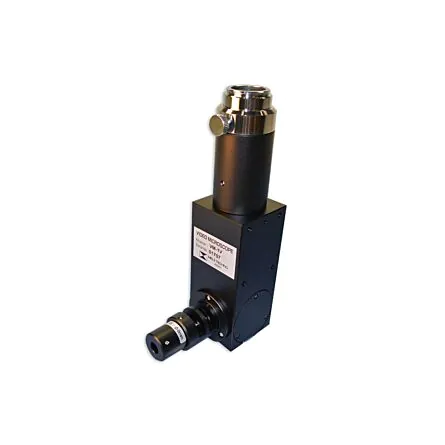

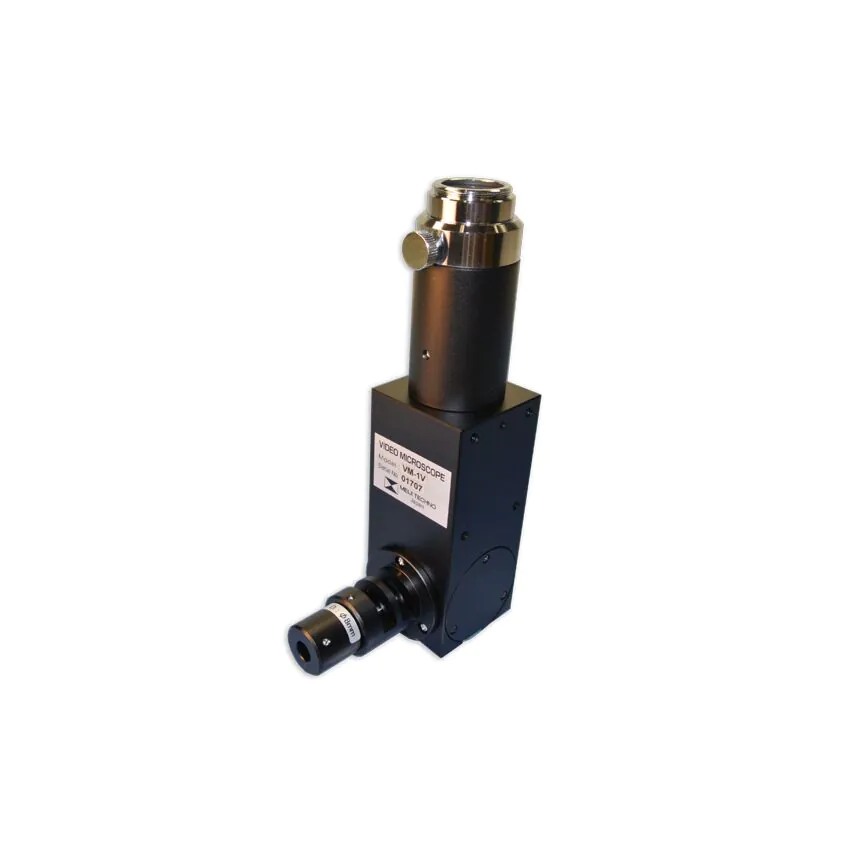

VM & VM-LED Series: High-Resolution Video Microscopes

Precision Engineering for Advanced Industrial Inspection

The VM & VM-LED Series represents a pinnacle in high-resolution video microscopy. Specifically engineered for the rigorous demands of factory automation and machine vision systems, these units are the ideal solution for inspecting small electronic components, wave-guides, medical devices, catheters, and electro-mechanical assemblies.

By integrating a high-performance CCD video camera interface with fiber optic illumination and infinity-corrected optics, the VM Series delivers unparalleled clarity for high-magnification visual analysis.

Advanced Features & Capabilities

• Extreme Magnification Range: Achieve on-screen video magnification from 40X to over 5500X.
• Superior Optics: Wide range of objectives available (2.5X to 100X); accepts infinity-corrected objectives with RMS thread and 200mm focal length.
• Versatile Nosepieces: Choose between a single objective port or optional triple/quadruple nosepieces for rapid magnification shifts.
• Industrial-Grade Build: Rugged aluminum housing designed for longevity in manufacturing environments.
• Coaxial "Cool Light": Fiber optic illumination systems with field iris prevent heat damage to sensitive components.
• Flexible Integration: Mountable on flat surfaces via M4 X M6 threaded holes (30mm x 40mm spacing) for seamless machine vision application.

Technical Specifications

Ready to Upgrade Your Inspection Workflow?

The VM Series is highly configurable with numerous accessories to fit your specific application.
