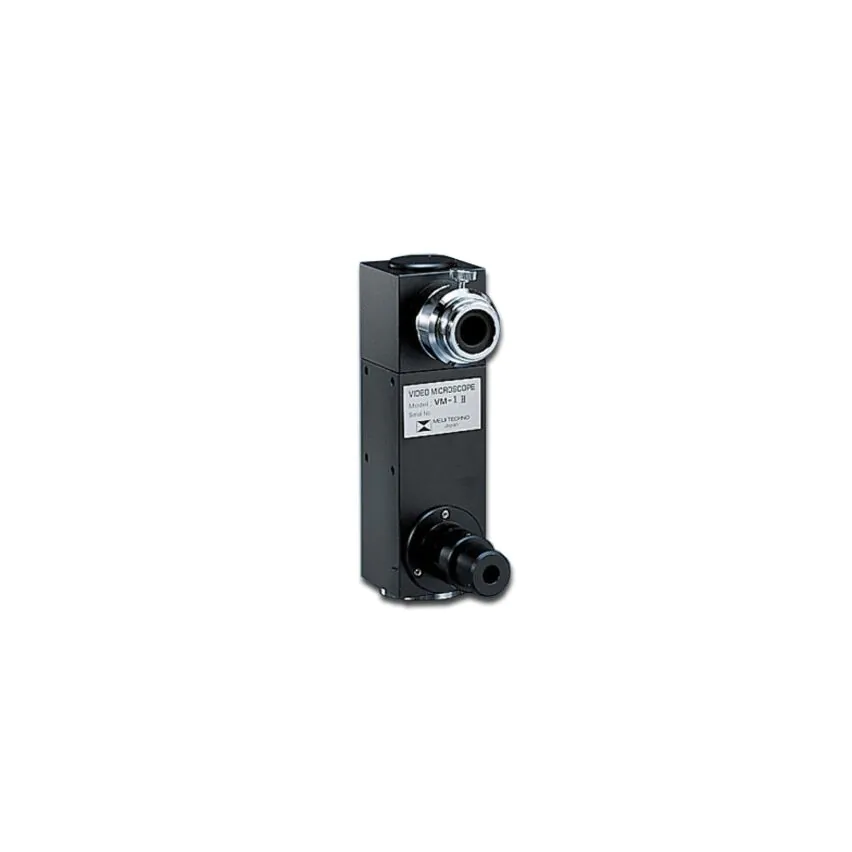

Meiji Techno VM-1H 1X Magnification with Horizontal C” Mount

SKU:

VM-1H

In stock

You pay: $1,840.00

Free Shipping,

30 Day Money Back Guarantee

High-Resolution Infinity Optics: Integrated infinity-corrected optics provide superior image clarity, making it ideal for precision-driven industrial, medical, and research applications.
Versatile Factory Integration: Specifically designed for factory automation and machine vision systems, featuring a compact, portable form factor for easy installation.
Integrated Epi-Illumination: Equipped with built-in epi-illumination to ensure consistent, high-contrast lighting for detailed inspection of reflective or opaque surfaces.
Universal Camera Compatibility: Features a horizontal “C” mount and 1X magnification factor, supporting seamless integration with CCD, Digital CCD, or CMOS video cameras.

Customer Support

Talk to one of our experts now!

Email Call

Product Details

VM & VM-LED Series High-Resolution Video Microscopes

The VM & VM-LED Series is a premier line of high-resolution video microscopes engineered for precision. Specifically designed for the rigorous inspection of small electronic components, medical devices, and electro-mechanical assemblies, these microscopes provide the clarity and versatility required for modern factory automation and machine vision systems.

Advanced Imaging & Versatile Features

Superior Image Quality: Deliver outstanding high-resolution visuals for critical inspections.
Extreme Magnification Range: On-screen video magnification from 40X to over 5500X.
Flexible Optics: Wide range of objectives available (2.5X to 100X); compatible with infinity-corrected objectives (RMS thread, 200mm focal length).
Customizable Configurations: Choose from single objective ports or optional triple/quadruple nosepieces.
Rugged Build: Durable aluminum housing designed for industrial environments and machine vision integration.
Compact Portability: Features a space-saving pole stand with coarse/fine focus; self-powered options available for field use.

Technical Specifications

Feature	Specification
Mount Type	"C" Mount for seamless camera integration
Parfocal Distance	45mm
Mounting Pattern	Four M4 X M6 threaded holes (30mm X 40mm spacing)
Objective Thread	DIN Standard 0.7965” (20.1mm) diameter
Illumination	Fiber optic coaxial “cool light” with optional field iris and drop-in filters

Ideal Applications

The VM Series is the industry standard for high-magnification visual inspection in:

Semiconductor and Electronic Components
Medical Devices (Catheters, Seals, Stents)
Wave-guides and Electro-mechanical Assemblies
Laboratory Research & Machine Vision Integration

Model	Orientation of CCD Camera	Magnification of Built-In Tube Lens
VM-035	Vertical	0.35X
VM-1D / VM-1D-LED	Vertical & Horizontal	1.0X
VM-1H / VM-1H-LED	Horizontal	1.0X
VM-1V / VM-1V-LED	Vertical	1.0X
VM-2V / VM-2V-LED	Vertical	0.5X
