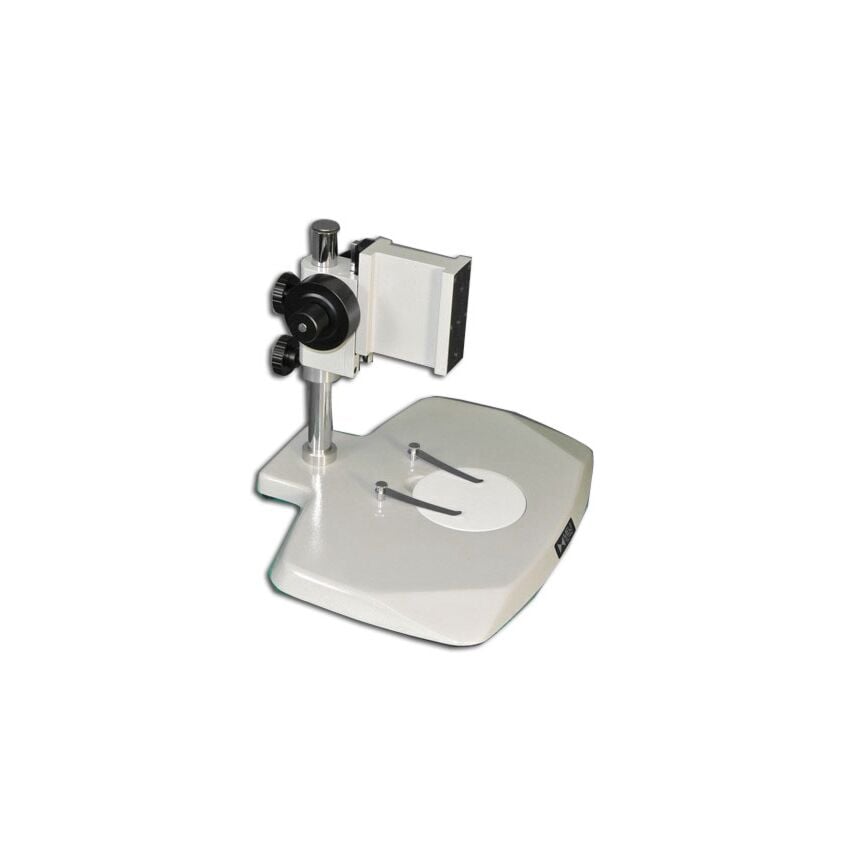

Meiji Techno VM-PK Pole Stand

SKU:

VM-PK

In stock

You pay: $870.00

Free Shipping,

30 Day Money Back Guarantee

Ergonomic Pole Stand: Features the wide VM-PK design with a coarse and fine focus block for precise Z-axis control (55mm travel).
High Magnification Imaging: Designed for VM and VM-LED "C" mount microscopes, connecting infinity-corrected objectives directly to cameras.
Standardized Compatibility: Supports DIN standard 20.1mm threaded objectives and features a 45mm parfocal distance for consistent imaging.
Durable Construction: Includes a spacious 330mm x 280mm base, reversible stage plate, and is backed by a Limited Lifetime Warranty.

Customer Support

Talk to one of our experts now!

Email Call

Product Details

VM Series Video Microscopes | High-Resolution Industrial Imaging

VM & VM-LED Series: High-Resolution Video Microscopes

The VM & VM-LED Series are precision-engineered video microscopes designed for high-magnification visual inspection. Whether you are analyzing micro-electronic components, medical devices like catheters, or complex electro-mechanical assemblies, these microscopes deliver the clarity and versatility required for modern factory automation and machine vision systems.

Ideal for: Small electronic components, wave-guides, seals, fibers, and medical device inspection.

Advanced Features & Capabilities

Superior Imaging: Outstanding high-resolution visuals with on-screen video magnifications ranging from 40X to over 5500X.
Versatile Optics: Wide range of objectives available (2.5X to 100X). Accepts infinity-corrected objectives with RMS thread and 200mm focal length.
Flexible Configuration: Choose between a single objective port or optional triple/quadruple nosepieces for rapid magnification changes.
Industrial Durability: Housed in rugged aluminum for long-term reliability in demanding environments.
Illumination Excellence: Features fiber optic coaxial “cool light” systems with field iris and drop-in filter support.
Integration Ready: Compact pole stand with coarse/fine focus. Mountable on flat surfaces via M4 X M6 threaded holes for machine vision applications.

Technical Specifications

Mount Type	Standard “C” Mount for seamless camera integration
Mounting Pattern	Four M4 X M6 holes (30mm X 40mm spacing)
Parfocal Distance	45mm
Objective Thread	Din Standard 0.7965” (20.1mm) diameter
Portability	Field-portable with self-powered camera and light source options

Why Choose the VM-LED Series?

By connecting infinity-corrected objectives directly to a “C” Mount camera, the VM Series creates a streamlined, high-magnification imaging system. Its compact footprint and flat-surface mounting capabilities make it the premier choice for engineers needing to integrate high-end microscopy into tight spatial envelopes or automated production lines.

Stand & Base Dimensions

Overall Dimensions	160mm (W) x 240mm (L) x 280mm (H)
Pillar Height	248mm (20mm diameter)
Surface Base	380mm (W) x 330mm (L)
Stage Plate	94.5mm diameter reversible Black and White plate
