VM & VM-LED Series High-Resolution Video Microscopes

The VM & VM-LED Series are professional-grade video microscopes engineered for precision visual inspection in demanding industrial environments. Designed specifically for the micro-inspection of electronic components, medical devices, catheters, and electro-mechanical assemblies, these systems provide the clarity and magnification required for modern factory automation.

By integrating high-resolution infinity corrected optics with a versatile "C" mount camera interface, the VM Series offers a seamless imaging solution for both benchtop analysis and machine vision system integration.

Advanced Features for Precision Imaging

• Superior Magnification: Achieve on-screen video magnification from 40X to over 5500X.
• Versatile Optics: Wide range of objectives available (2.5X to 100X); accepts RMS thread infinity corrected objectives (200mm focal length).
• Flexible Configuration: Choose from a single objective port or upgrade to optional triple/quadruple nosepieces.
• Industrial Durability: Housed in rugged aluminum for long-term reliability in factory settings.
• Optimized Lighting: Features fiber optic coaxial “cool light” illumination with available field iris and drop-in filter support.

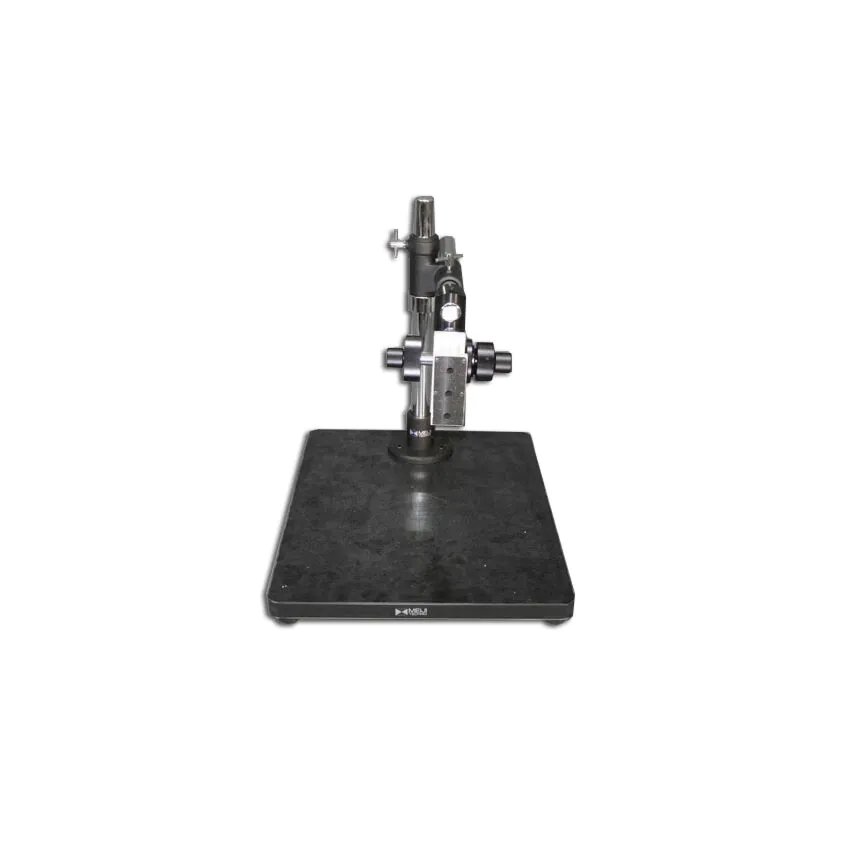

• Compact Integration: Small footprint pole stand with coarse/fine focus; mountable on flat surfaces via standard M4 threaded holes.

Technical Specifications

Ideal for Machine Vision & Quality Control

The VM Series is the go-to choice for OEM integration and portable inspection. Its ability to be mounted directly onto flat surfaces makes it perfect for:

• Semiconductor and Wave-guide inspection
• Medical device and seal integrity verification
• Machine vision and automated optical inspection (AOI)
• Field-portable inspection (via self-powered camera and light sources)

Ready to Enhance Your Inspection Workflow?

Explore the many accessories and configurations available to customize the VM Series for your specific application.

VM & VM-LED Series High-Resolution Video Microscopes

The VM & VM-LED Series are high-performance video microscopes engineered for precision inspection of miniature electronic components, medical devices, and fiber optics. By integrating a CCD video camera with high-resolution, infinity-corrected optics, these systems provide a robust solution for factory automation, laboratory analysis, and machine vision applications.

Key Features & Advantages

• Exceptional Image Clarity: Delivers high-resolution visuals with on-screen magnification capabilities ranging from 40X to over 5500X.
• Versatile Optics: Compatible with a wide array of infinity-corrected objectives (2.5X to 100X) utilizing a standard RMS thread and 200mm focal length.
• Flexible Configurations: Choose between a single objective port or upgrade to triple/quadruple nosepieces to suit your workflow.
• Advanced Illumination: Features "cool light" fiber optic coaxial systems with field irises and ports for drop-in mounted filters.
• Durable & Compact: Built with a rugged aluminum housing, the unit is compact enough for pole stand mounting or direct integration onto flat surfaces via M4 threaded holes.
• Portable & Integrative: Ideal for machine vision systems or field use when paired with a self-powered camera and light source.

Technical Specifications
