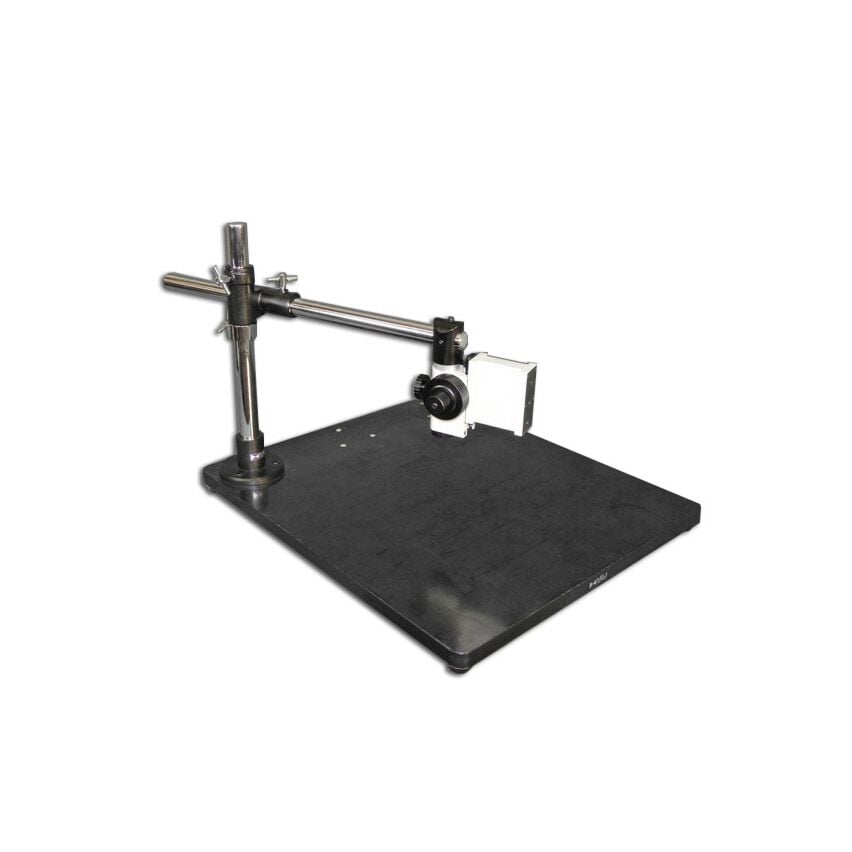

Meiji Techno VM-SBU Pole Stand

SKU:

VM-SBU

In stock

You pay: $1,430.00

Free Shipping,

30 Day Money Back Guarantee

Spacious Workspace: Features a large 580mm x 500mm x 38mm laminate base, providing a stable and expansive surface for inspecting oversized specimens.
Heavy-Duty Support: Equipped with a universal pole and crossarm assembly, offering maximum flexibility and reach for versatile positioning.
Precision Focusing: Includes a VM-FB focus block designed specifically for VM Series microscopes, ensuring smooth and accurate adjustments.
Universal Compatibility: The mounting post is engineered to fit standard 20mm diameter poles, making it a versatile addition to your laboratory setup.

Customer Support

Talk to one of our experts now!

Email Call

Product Details

VM & VM-LED Series High-Resolution Video Microscopes | Industrial Inspection

VM & VM-LED Series High-Resolution Video Microscopes

The VM & VM-LED Series represents the pinnacle of industrial video microscopy. Engineered specifically for high-magnification visual inspection, these systems are the ideal solution for analyzing small electronic components, medical devices, wave-guides, and electro-mechanical assemblies.

By integrating CCD video cameras, advanced fiber optic illumination, and infinity-corrected optics, the VM Series offers a seamless high-resolution imaging experience perfect for factory automation and machine vision applications.

Advanced VM Series Features

Superior Imaging: Delivers outstanding high-resolution visuals for precision analysis.
Extreme Magnification Range: On-screen video magnification from less than 40X to over 5500X.
Versatile Optics: Compatible with infinity-corrected objectives (RMS thread, 200mm focal length) ranging from 2.5X to 100X.
Flexible Configuration: Choose from single objective ports or optional triple/quadruple nosepieces.
Industrial Durability: Housed in rugged aluminum for long-term reliability in demanding environments.
Integrated Illumination: Features fiber optic coaxial “cool light” systems with field iris and drop-in filter support.
Portable & Compact: Self-powered camera and light source options allow for field portability and easy integration via compact pole stands.

Technical Specifications & Integration

The VM & VM-LED Series "C" Mount design allows for a direct connection between infinity-corrected objectives and cameras, creating a streamlined imaging system.

Mounting:	Flat surface or VM focus block via four M4 X M6 threaded holes (30mm x 40mm spacing).
Parfocal Distance:	45mm
Objective Compatibility:	Accepts DIN Standard 0.7965” (20.1mm) diameter threaded objectives.

Ideal For:

Machine Vision Systems
Medical Device Inspection (Catheters, Seals, Fibers)
Semiconductor & Electronic Component Testing
Factory Automation Quality Control

Ready to upgrade your inspection process?

Contact our experts today for a custom configuration or a bulk quote on the VM Series.

Request a Quote

VM & VM-LED Series High-Resolution Video Microscopes

The VM and VM-LED Series are precision-engineered video microscopes designed for the high-magnification inspection of intricate components. These systems are ideal for analyzing small electronics, medical devices, fiber optics, and electro-mechanical assemblies. By integrating high-resolution infinity-corrected optics with CCD video technology and fiber optic lighting, these units provide a seamless imaging solution for machine vision and factory automation.

Key Features & Advantages

Superior Imaging: Delivers exceptional high-resolution clarity across a wide magnification spectrum.
Versatile Optics: Compatible with objectives ranging from 2.5X to 100X, supporting infinity-corrected lenses with standard RMS threading.
Flexible Magnification: Achieve on-screen video magnification from 40X to over 5500X.
Modular Configuration: Choose between a single objective port or upgrade to triple/quadruple nosepieces for quick magnification changes.
Durable & Compact: Housed in a rugged aluminum chassis, these units are compact enough for pole stand mounting or direct integration into flat-surface machine vision setups.
Optimized Illumination: Features "cool light" fiber optic coaxial systems with field iris support and drop-in filter ports for specialized lighting needs.
Portability: Can be configured for field use with self-powered cameras and light sources.

Technical Specifications

Feature	Specification
Camera Mount	Standard "C" Mount
Parfocal Distance	45mm
Objective Compatibility	DIN Standard 0.7965" (20.1mm) diameter threads
Mounting Interface	Four M4 x M6 threaded holes (30mm x 40mm spacing)
Focusing	Compatible with VM focus blocks (Coarse/Fine adjustment)
