Meiji Techno EMT-2-S4100 Dual Power Boom Stereo Microscope

$ 1520.00

List Price: $1,665.00

Starting at: $1,520.00

SKU: EMT2-S4100

Availability: In stock

  • 1x/3x dual power stereo microscope
  • Single Arm Boom stand
  • Binocular
  • 81mm working distance
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

EMT-2 1x/3x Dual-Power Stereo Microscope Body   $450.00
S-4100 Boom Stand   $610.00
  • $10.00
  • $60.00
  • $88.00
  • $129.00
  • $35.00
  • $129.00
  • $129.00
  • $139.00
  • $129.00
F Focus Block   $250.00

Included in Bundle

Head: EMT-2 1x/3x Dual-Power Stereo Microscope Body

Stand: S-4100 Boom Stand

Focus Block: F Focus Block

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji EMT-2-S4100 Stereo Microscope System
  • Meiji EMT-2-S4100 Stereo Microscope System Stand
  • Meiji EMT-2-S4100 Stereo Microscope System Transition Block
  • Meiji EMT-2-S4100 Stereo Microscope System Head
  • Meiji EMT-2-S4100 Stereo Microscope System Focus Block
Description

Summary

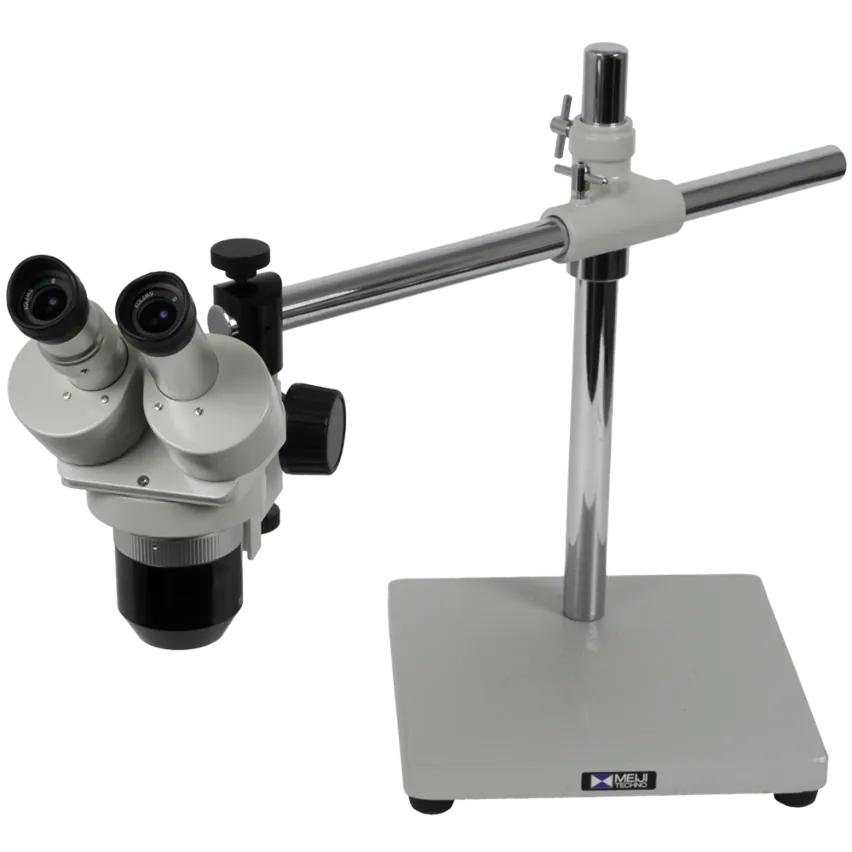

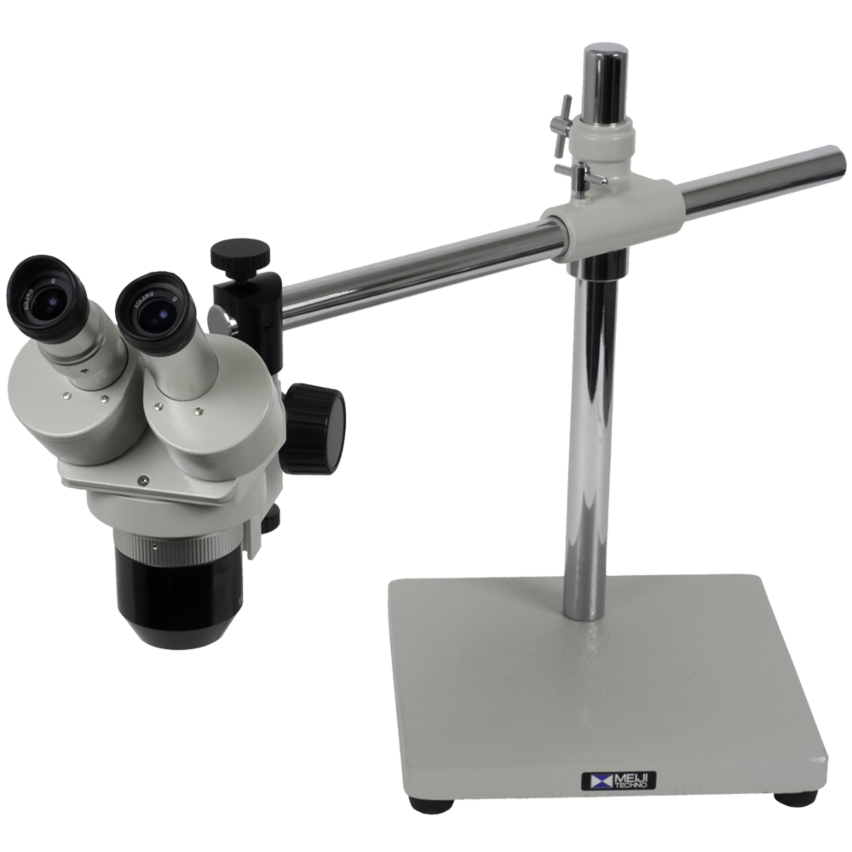

The EMT2-S4100 combines Meiji's 1x/3x dual power stereo microscope body with the S-4100 single arm boom stand Lifetime Limited Warranty.

Microscope Head

The microscope body has 1x and 3x objectives, rotates 360º for convenient viewing options, and has a maximum working distance of 81 mm without an auxiliary Barlow lens. Depending on your choice of eyepieces (5x, 10x, 12.5x, 15x, 20x, or 30x), you can achieve magnification settings ranging from 10x to 90x, without the corresponding cost of a zoom microscope.

The EMT2-P’s left eyetube has dioptric adjustment for convenient focusing of both eyes, and the eyepieces have an interpupillary adjustment range of 54-75 mm to adjust comfortably to the distance between your eyes. Binocular only.

Stand

The S-4100 boom stand is solidly built and measures 265mm x 265mm x 25mm. It has a 530mm (20.8") long horizontal arm and a pole that is 510mm high (15.7"). For those who require greater working distance, the S-4200 is identical in every respect except that the vertical pole is 600m tall (24"). The solid metal base is 10.4 x 10.4 inches for exceptional stability and fully adjustable set screws provide unlimited mounting positions.

Optional Illumination

For convenience we offer a variety of ring lights and auxiliary barlow lenses with this microscope. Please call for alternative illumination solutions.
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • S-4100 Boom Stand
    General
    Brand Meiji Techno
    SKU S4100
    Feed - Title Meiji Techno S-4100 Boom Stand
    Feed - Description The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45
    Feed - Custom Label 1 500-1000
    Stand
    Stand Class Boom
    Stand Type Single Arm Boom
    Post Diameter 29 mm
    Coating Type (Stand) Durable Powdercoat
    Hanging Bar Style Fixed
    If FB Mounts Direct
    Focus Block Mount Diameter 20 mm

  • MA501 - 5X Super Widefield Paired Eyepieces

    MA718 - 7.5X Super Widefield Paired Eyepieces

    MA502 - 10X Super Widefield Paired Eyepieces

    MA503 - 15X Super Widefield Paired Eyepieces

    MA504 - 20X Super Widefield Paired Eyepieces

    MA521 - 30X Super Widefield Paired Eyepieces

    MA519 - 10x Focusing Eyepiece (single)
    General
    Brand Meiji TechnoMeiji TechnoMeiji TechnoMeiji TechnoMeiji TechnoMeiji TechnoMeiji Techno
    SKU MA501MA718MA502MA503MA504MA521MA519
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes 30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Feed - Title Meiji Techno MA501 - 5X Super Widefield Paired EyepiecesMeiji Techno MA718 - 7.5X Super Widefield Paired EyepiecesMeiji Techno MA502 - 10X Super Widefield Paired EyepiecesMeiji Techno MA503 - 15X Super Widefield Paired EyepiecesMeiji Techno MA504 - 20X Super Widefield Paired EyepiecesMeiji Techno MA521 - 30X Super Widefield Paired EyepiecesMeiji Techno MA519 - 10x Focusing Eyepiece (single)
    Feed - Description The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45 The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45 The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45 The Meiji EMZ8TR-S4200 is a combination of Meiji's best-selling EMZ-8TR zoom stereo trinocular microscope head and the Meiji S4200 boom stand. It is the most popular Meiji industrial inspection microscope system. Available in binocular or trinocular with choice of eyepieces. Limited Lifetime Warranty.Microscope Head TThe EMZ-8TR is Meiji's most popular trinocular zoom stereo microscope head. It is to trinocular what the EMZ-5 is to binocular. A good quality workhorse for industry ad education that can be relied on to last a lifetime with zero defects. The parfocal zoom range is 7x-45x (10x eyepieces) with dual-sided zoom controls. The field of view is 32mm-5.1mm with 10x eyepieces and the standard working distance is marginally longer then the EMZ5 at 104mm. The head is inclined 45
    Feed - Custom Label 1 100-500100-500100-500100-500100-500100-500100-500
    Compatible With EM*EM*EM*EM*EM*EM*EM*
    Eyepiece Magnification 5x7.5x10x15x20x30x10x

  • MA600 Stereo Eyeshields (Pair)
    General
    Brand Meiji Techno
    SKU MA600
    Feed - Title Meiji Techno MA600 Stereo Eyeshields (Pair)
    Feed - Description The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45
    Feed - Custom Label 1 <100

  • MA553 Ring Light Adapter (Req'd for all Ring Lights)

    64 LED Ring Light, Variable Intensity by Section

    144 LED Ring Light, Variable Intensity by Section
    General
    Brand Meiji Techno
    SKU MA553OMLED-64AOMLED-144A
    Notes 60mm OD
    Backorder ETA  Jun 29, 2018
    Feed - Title  64 LED Ring Light, Variable Intensity by Section144 LED Ring Light, Variable Intensity by Section
    Feed - Description  The new KoPa AIR camera offers both WiFi and USB live image output with up to 5.0 megapixel USB resolution, and live (40 FPS) streaming WiFi at 1280 x 960 resolution. The camera has a full suite of auto and manual controls in the USB software as well as the free, downloadable KoPa Vision App. The camera works well in USB mode, and really excels in its WiFi capability.Controls & OperationOn-camera control consists of a switch on the back (Off / USB / WiFi) which places the unit into USB or WiFi mode. After downloading the App, simply connect your mobile device to the Kopa network in the WiFi settings on your device.USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. The refresh rate ranges from 15fps at 2592 x 1944 (maximum resolution) to 40fps at 1280 x 960.The camera features a standard C-mount interface to fit any microscope with a C-mount adapter. In addition, the camera has a tripod mount on the base, allowing for use as a stand-alone imaging device (with a C-mount standard macro or zoom lens fitted). As a major upgrade over the C500W, the KoPa AIR camera also features a 5000mAh lithium Ion battery, capable of operating 8 hours on a full charge.Kopa Cam SoftwareThe software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. The App has simple touch screen buttons with both still and video capability as in USB mode. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. IlluminationWe offer our standard array of LED ring lights (OMLED-80A shown) or a high quality 4.5W LED ring light or a coaxial 3W LED spotlight. The included ring light has 80 LEDs with an auto-switching 90-264V power supply, 13000 Lux and 6400k color temperature. PLEASE NOTE that when ordering the coaxial light option, you will also need the coaxial adapter.Camera AccessoriesWiFi camera, 0.5X C-mount adapter, 30.0mm & 30.5mm collars, USB cable, software CD, padded storage case. Camera dimensions: 60mm diameter, 70mm height, 0.41 Lbs. Case dimensions: 9" wide, 8" deep, 6" tall. weight - 2.0 Lbs.Microscope AccessoriesAccessories include the Omano OM99-T Trinocular Microscope, 80 LED Ring illuminator, focus block, 0.5X C-mount adapter, V3 stand. details: 20 x 13 x 10", 12 Lb.The new KoPa AIR camera offers both WiFi and USB live image output with up to 5.0 megapixel USB resolution, and live (40 FPS) streaming WiFi at 1280 x 960 resolution. The camera has a full suite of auto and manual controls in the USB software as well as the free, downloadable KoPa Vision App. The camera works well in USB mode, and really excels in its WiFi capability.Controls & OperationOn-camera control consists of a switch on the back (Off / USB / WiFi) which places the unit into USB or WiFi mode. After downloading the App, simply connect your mobile device to the Kopa network in the WiFi settings on your device.USB output operates via a user-friendly, Windows-only software suite that includes measuring software among a host of other features. The refresh rate ranges from 15fps at 2592 x 1944 (maximum resolution) to 40fps at 1280 x 960.The camera features a standard C-mount interface to fit any microscope with a C-mount adapter. In addition, the camera has a tripod mount on the base, allowing for use as a stand-alone imaging device (with a C-mount standard macro or zoom lens fitted). As a major upgrade over the C500W, the KoPa AIR camera also features a 5000mAh lithium Ion battery, capable of operating 8 hours on a full charge.Kopa Cam SoftwareThe software offers a comprehensive range of features including measuring software, drawing tools and annotation. Adjustable parameters include white balance, exposure, saturation, brightness, contrast, sharpness and backlight compensation among others. The App has simple touch screen buttons with both still and video capability as in USB mode. Image format include: jpg, png, bmp and pdf. NOTE: This software is not MAC compatible.MicroscopeThe Omano OM99 is the top of the range of Omano zoom stereo microscope that compares favorably with its Olympus cousin. Featuring 6.5x-45x parfocal magnification, it is built round six prisms and, in our opinion, is the best quality stereo microscope out of China. The two Super Wide Field SWF10X eyepieces enable window pane viewing for less eye strain and include rubber eyecups. Dual diopters are integrated into the eye tubes for individual eye adjustment. and interpupillary adjustment range is 55mm-75mm. NOTE: When the photo-prism lever is engaged in the OM99-Trincular, 100% of the light from the left optical path is directed to the camera port. The image can still be viewed through the right eyepiece. The package also includes a 0.5x C-mount adapter and a 76mm focus ring offering a working distance of 3 3/4" which increases to over 6" with the addition of a 0.5x auxiliary Barlow lens. Optional Barlow lenses include 0.3x, 0.4x, 0.5x, 0.75x, 1.0x and 2.0x.StandThe Omano V3 pole stand's ergonomic design includes beveled leading edges for operator comfort. It features a tall, 12" vertical pole for extended working distances and a 12" x 12" base with rubber feet to protect your working surface. A safety collar and black/white contrast plate is also included. We also offer a focus block with two different movements, a standard coarse focusing movement, and a coarse / fine focusing movement. IlluminationWe offer our standard array of LED ring lights (OMLED-80A shown) or a high quality 4.5W LED ring light or a coaxial 3W LED spotlight. The included ring light has 80 LEDs with an auto-switching 90-264V power supply, 13000 Lux and 6400k color temperature. PLEASE NOTE that when ordering the coaxial light option, you will also need the coaxial adapter.Camera AccessoriesWiFi camera, 0.5X C-mount adapter, 30.0mm & 30.5mm collars, USB cable, software CD, padded storage case. Camera dimensions: 60mm diameter, 70mm height, 0.41 Lbs. Case dimensions: 9" wide, 8" deep, 6" tall. weight - 2.0 Lbs.Microscope AccessoriesAccessories include the Omano OM99-T Trinocular Microscope, 80 LED Ring illuminator, focus block, 0.5X C-mount adapter, V3 stand. details: 20 x 13 x 10", 12 Lb.
    Feed - Custom Label 1  <100100-500
    Compatibility
    Compatible With EMT-2*, EMT-1*, EMF-1, EMF-2
    Illumination Type  LEDLED
    Light Specs
    Ring Light Type  LEDLED
    Ring Light Specification  90-265V Auto switching90-265V Auto switching
    Ring Light Control  VariableVariable

  • MA515 Barlow Lens Adapter - Required for EMT Series

    MA518 Barlow Lens 0.5X

    MA527 Barlow Lens 0.75X WD 72mm

    MA513 Barlow Lens 1.5X WD=35mm

    MA514 Barlow Lens 2X
    General
    Brand Meiji TechnoMeiji TechnoMeiji TechnoMeiji TechnoMeiji Techno
    SKU MA515MA518MA527MA513MA514
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes Converts M43.5 threaded accessory to M45 threaded mount on microscope body.MA515 required to attach to EMT-1, EMT-2 and variants.MA515 required to attach to EMT-1, EMT-2 and variants.MA515 required to attach to EMT-1, EMT-2 and variants.MA515 required to attach to EMT-1, EMT-2 and variants.
    Compatibility
    Compatible With EMT-2*, EMT-1*, EMF-1, EMF-2EMT-3*, EMT-4*, MA515EMT-3*, EMT-4*, MA515EMT-3*, EMT-4*, MA515EMT-3*, EMT-4*, MA515
    Optical Accessory
    Barlow Lens Power  0.5X0.75X1.5X2.0X

  • F Focus Block
    General
    Brand Meiji Techno
    SKU F
    Feed - Title Meiji Techno F Focus Block
    Feed - Description The Meiji SMD-5 stereo microscope inspection station is designed specifically for close inspection of soldering welds on circuit boards and delicate electronics repairs. It combines Meiji's best-selling EMZ-5 zoom stereo binocular microscope body, the S-4100 boom inspection stand, MA964 LED ring illumination system and two sets (10X and 20X) of wide field eyepieces. Limited Lifetime Warranty.MicroscopeThe EMZ-5 stereo binocular head is one of Meiji's most popular stereo microscope heads. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45
    Feed - Custom Label 1 100-500
    If FB Integrated
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    If FB Mounts Direct
    Focus Block Mount Diameter 20 mm
    Compatibility
    Head Ring Mount Diameter 84 mm
Product Manuals
  • Meiji EMF/EMT/EMX Series Stereo Microscope Manual: Download PDF [817k]
