Meiji Techno USB400MAC Entry-Level 0.7X-5X Macrozoom System with X-1000U USB 2.0 Camera
SKU:
USB400MAC
In stock
You pay: $1,550.00
Free Shipping,
30 Day Money Back Guarantee
- High-Performance Optics: Features a 0.7X-5X Macrozoom system with a 1x objective and 0.4x trinocular eyepiece, providing a generous 105mm working distance.
- Integrated Digital Imaging: Includes a 5 MP USB 2.0 camera (X-1000U) capable of capturing high-resolution still shots and live video at 10 fps.
- Advanced Illumination: Equipped with a 16 LED array ring light powered via USB, featuring an integrated rheostat for precise brightness control.
- Ergonomic Design: Built on a 205mm x 273mm sloped ergonomic stand with a 32mm post and coarse focus block for stable, comfortable operation.
- Software Included: Comes with basic measurement software to perform accurate analysis and documentation of live and captured images.

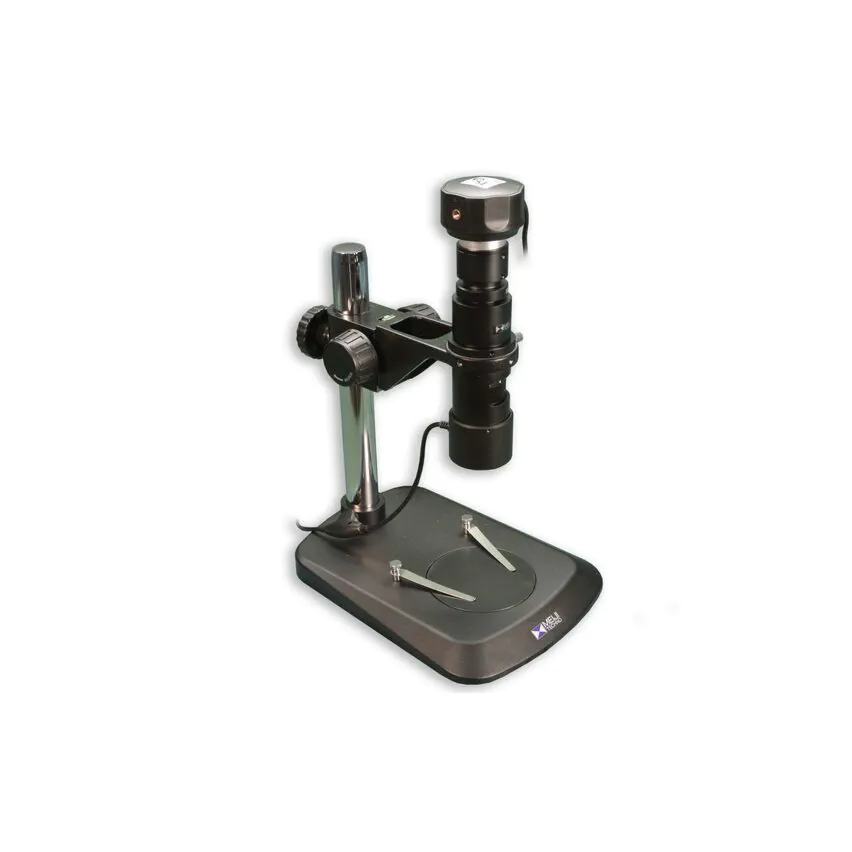

USB400MAC Macrozoom Turnkey System
The USB400MAC is a high-performance 0.7X-5.0X Macrozoom direct-to-video turnkey system. Equipped with a 5 MP USB 2.0 camera and a 16 LED array ring light, this system is designed for high-resolution imaging, live video, and basic measurement. It is an ideal solution for biological dissections, textile inspection, electronics manufacturing, and forensic archaeology.
Technical Specifications
| Zoom Range | 0.7X – 5.0X (Macrozoom) |
| Optical Components | 1x Objective; 0.4x Trinocular eyepiece |
| Working Distance | 105 mm (4”) |
| Illumination | 16 LED array ring light with independent rheostat control (USB powered) |
| Stand Type | Ergonomic 32mm slope pole stand (205mm x 273mm base) |
| Focusing | Coarse focus block |
X-1000U Camera Specifications
| Sensor | 5.0 MP CMOS (Color) |
| Pixel Size | 2.2μm × 2.2μm |
| Resolution (USB/WiFi) | 30fps @ 2592×1944, 1920×1080, 1024×768, 640×480 |
| Exposure & White Balance | Automatic and Manual control |
| File Formats | Still: JPG, BMP, PNG, TIFF, PDF | Video: AVI (MJPG) |
Package Includes
- USB400MAC Macrozoom 0.7X-5.0X System
- 1X Objective Lens
- 5.0 MP CMOS USB 2.0 Camera (X-1000U)
- Basic Image Capture and Measurement Software for PC (Windows only)
- Ergonomic 32mm pole stand and base
- Coarse Focus Block
Shipping Information
Box Size: 495 x 360 x 388 mm
Customer Support: 1-(800) 832-0060 (U.S.A Based)
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
