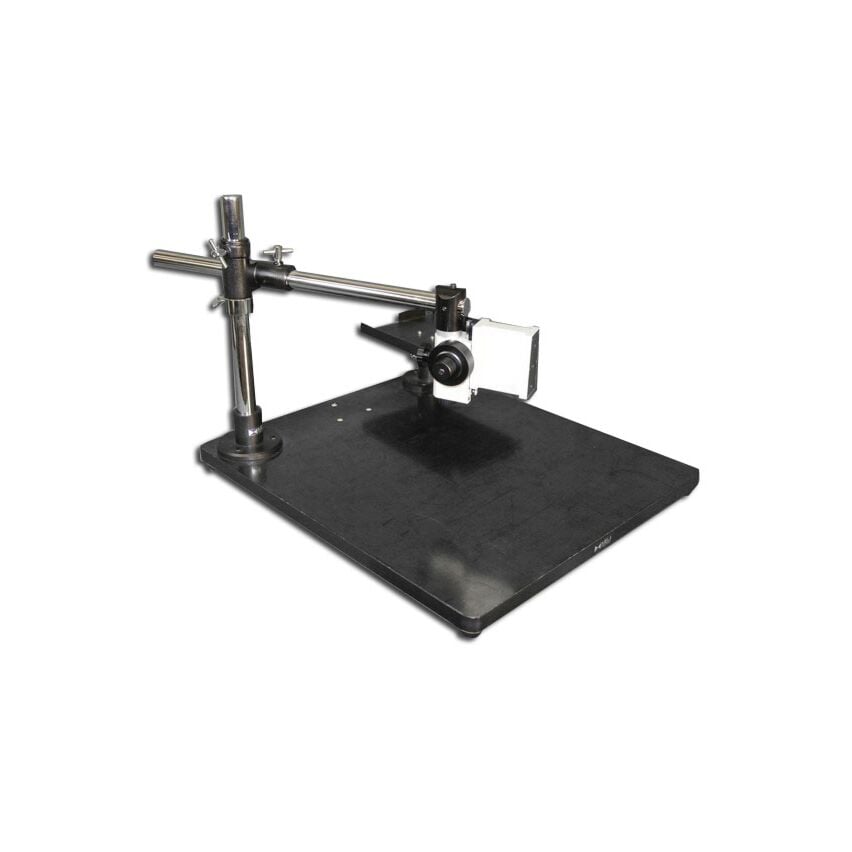

VM & VM-LED Series: High-Resolution Industrial Video Microscopes

The VM & VM-LED Series represents the pinnacle of high-resolution video microscopy, specifically engineered for the precision demands of modern industry. Whether you are inspecting micro-electronic components, medical devices like catheters and seals, or complex electro-mechanical assemblies, the VM Series delivers unparalleled clarity and versatility.

Designed for seamless integration, these "C" Mount video microscopes bridge the gap between high-magnification optics and digital imaging. They are the ideal solution for factory automation, machine vision systems, and laboratory R&D.

Advanced Features & Capabilities

• Elite Imaging: Outstanding high-resolution imagery with on-screen video magnifications ranging from less than 40X to over 5500X.
• Versatile Optics: Compatible with a wide range of objectives (2.5X to 100X) and accepts infinity-corrected objectives with RMS thread (200mm focal length).
• Customizable Configuration: Choose from a single objective port or upgrade to triple or quadruple nosepieces for rapid magnification switching.
• Industrial Durability: Housed in rugged aluminum for long-term reliability in harsh manufacturing environments.
• Superior Illumination: Features fiber optic coaxial “cool light” systems with field iris and an illuminator port that accepts drop-in mounted filters.
• Compact & Portable: Small-footprint pole stands with coarse/fine focus. Self-powered camera and light source options allow for convenient field portability.

Technical Specifications & Integration

The VM Series is built for easy installation and precise performance:

Ideal For:

• Small Electronic Components & Wave-guides
• Medical Device Inspection (Catheters, Seals, Stents)
• Electro-mechanical Assembly Verification
• Machine Vision & Automated Inspection Lines

VM & VM-LED Series High-Resolution Video Microscopes

The VM & VM-LED Series is a premier line of video microscopes engineered for the high-magnification inspection of intricate components, including medical devices, fiber optics, micro-electronics, and precision seals. By integrating infinity-corrected optics with CCD camera technology and advanced fiber optic lighting, these systems serve as an essential tool for both manual visual inspection and sophisticated machine vision integration.

Key Product Features

• Superior Imaging: Delivers exceptional high-resolution clarity with on-screen magnification capabilities ranging from 40x to over 5500x.
• Optical Versatility: Compatible with a broad spectrum of objectives (2.5X to 100X) and features a standard single port, with optional triple or quadruple nosepieces available.
• Industrial Design: Housed in a ruggedized aluminum body, the unit is compact enough for benchtop pole stands yet includes M4 threaded mounting holes for seamless factory automation and machine vision setup.
• Advanced Illumination: Supports "cool light" fiber optic coaxial systems with field irises and drop-in filter ports to optimize image contrast without heat transfer.
• Universal Compatibility: Designed for "C" mount cameras and accepts infinity-corrected objectives with standard RMS threads (20.1mm diameter) and a 45mm parfocal distance.
• Field Ready: Highly portable configuration options are available using self-powered light sources and cameras for mobile inspection needs.

Technical Specifications
