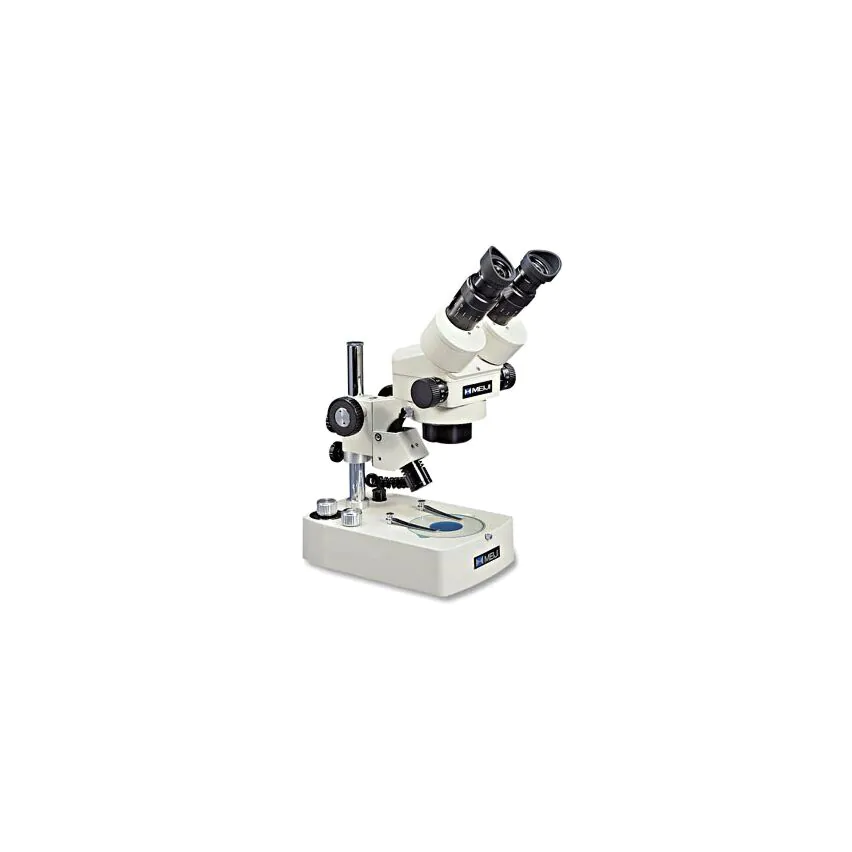

Meiji Techno EMZ5-PBH Stereo Microscope System

List Price: $2,175.00

As low as: $1,860.00

SKU: EMZ5-PBH

Availability: In stock

  • 7X-45X zoom range
  • Choice of eyepieces
  • Classic PBH pole stand
  • Integrated halogen illumination
  • Binocular or trinocular
  • Optional click stop detents
  • Lifetime Limited Warranty

Price as configured: $0.00

Select package options

Click on to learn more about the option * signifies required items

PBH Pole Stand   $550.00
  • $10.00

Included in Bundle

Stand: PBH Pole Stand

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • Meiji EMZ5-PBH Stereo Microscope
  • Meiji EMZ5TR-PBH Stereo Microscope
  • Meiji EMZ5-PBH Stereo Microscope
Description

Summary

The Meiji EMZ5-PBH is a combination of Meiji's best-selling EMZ-5 zoom stereo microscope body and the classic PBH pole stand with integrated incident and transmitted halogen illumination. The microscope offers 7x-45x zoom magnification with 10x eyepieces although you have a choice of eyepieces. Limited Lifetime Warranty.

Microscope Head

The EMZ-5 stereo head is by far the most popular Meiji stereo microscope head. It is their workhorse industrial and educational head offering good quality, an affordable price and zero defects. The parfocal zoom range is 7x-45x with dual-sided zoom controls and provides a field of view of 32mm-5.1mm. The working distance is 93mm. The head is inclined 45° and includes interpupillary adjustment of 54mm-75mm. There are dual +/-5 diopters for convenient individual eye focusing. The head rotates through 360° for flexible viewing positions.

Available in binocular or trinocular format and also with click stop detents for precise levels of magnification. The trinocular port directs light to the right eyetube and the trinocular tube simultaneously. Please note that a trinocular adapter is required to fit your camera.

Stand

The PBH is an Illuminated pole stand with "F" focusing holder. It provides both transmitted and incident 6V 10W halogen illumination with variable intensity control. Supplied with 94.5mm diameter clear glass stage plate, reversible black and white stage plate and two stage clips. Illuminators may be operated independently or simultaneously.

Dimensions: Total Height: 280mm (11.02"). Pillar Height: 212mm (8.35"). Base Dimensions: 160mm (6.30") wide by 240mm (9.44") deep.
Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • PBH Pole Stand
    SKU PBH
    Stand
    Stand Class Pedestal
    Stand Type Pole
    Stage Plate Black/White Contrast Plate
    Post Diameter 20 mm
    If FB Mounts Direct
    Focus Block Mount Diameter 20 mm
    If FB Integrated
    Focus Controls Coarse
    Focus Mechanism Rack & Pinion
    Compatibility
    Head Ring Mount Diameter 84 mm

  • MA501 - 5X Super Widefield Paired Eyepieces

    MA718 - 7.5X Super Widefield Paired Eyepieces

    MA502 - 10X Super Widefield Paired Eyepieces

    MA520 - 12.5x Super Widefield Paired Eyepieces

    MA503 - 15X Super Widefield Paired Eyepieces

    MA504 - 20X Super Widefield Paired Eyepieces

    MA521 - 30X Super Widefield Paired Eyepieces

    MA519 - 10x Focusing Eyepiece (single)
    SKU MA501MA718MA502MA520MA503MA504MA521MA519
    Warranty Meiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime WarrantyMeiji Limited Lifetime Warranty
    Notes 30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY30.5mm OD, Fits MEIJI EM SERIES ONLY30.5mm OD, 25mm reticle mount, Fits MEIJI EM SERIES ONLY
    Compatible With EM*EM*EM*EM*EM*EM*EM*EM*
    Eyepiece Magnification 5x7.5x10x12.5x15x20x30x10x

  • MA600 Stereo Eyeshields (Pair)
    SKU MA600
Magnification Chart

Eyepiece

Standard Configuration

Meiji EMZ 5

Auxiliary Barlow Lens

0.3X

0.5X

0.75X

1.5X

Working distance 93mm

Working distance 251mm

Working distance 148mm

Working distance 97mm

Working distance 49mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification

Field of view
mm

Magnification FIeld of view
mm

 10X

7X-45X

32.8 ~ 5.1

2.1X-13.5X

109 ~ 17

3.5X-22.5X

65.7-9.8

5.2X-33.7X 43.8 ~ 6.8 10.5X-67.5X 21.9 ~ 3.4

 15X

10.5X-67.5X

22 ~ 3.4

3.1X-20.2X

73 ~ 11.4

4.4X-28X

44 ~ 6.8 7.9X-50.6X 29.3 ~ 4.5 13.1X-84.4X 14.6 ~ 2.2

 20X

14X-90X

16.4 ~ 2.5

4.2X-27X

54.7 ~ 8.5

5.2X-33.4X

32.8 ~ 5.1 10.5X-67.5X 21.9 ~ 3.4 15.7X-101.2X 10.9 ~ 1.7

 30X

 21X-135X 11 ~ 1.7 36.6X-5.7X 36.6 ~ 5.7

10.5X-67.5X

22 ~ 3.4 15.8X-101.2X 14.6 ~ 2.2 31.5X-202.5X 7.3 ~ 1.1
Product Manuals
  • Meiji EMZ Series Stereo Microscope Manual: Download PDF [888k]
