Summary

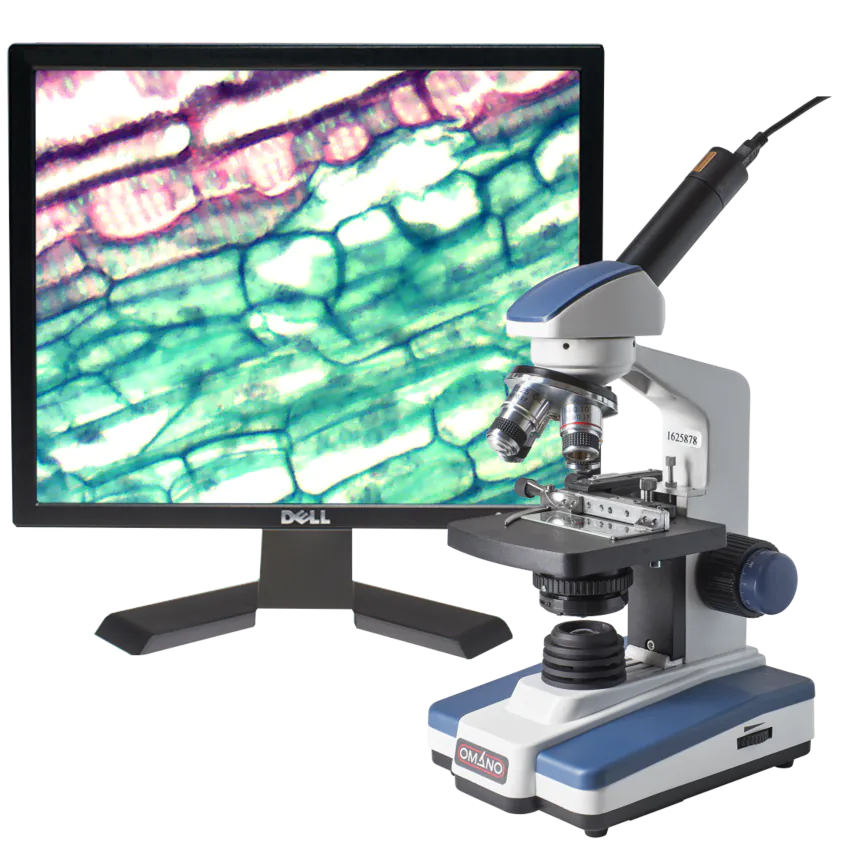

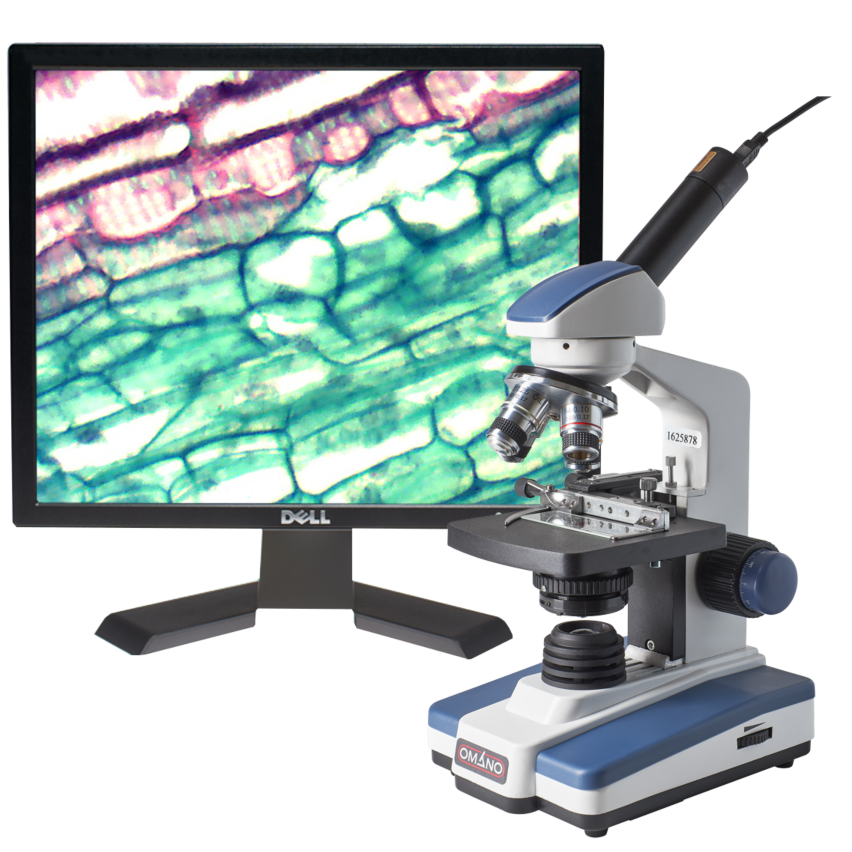

This special offer combines our popular Omano OM118-M4 monocular microscope and our easy-to-use Optixcam Summit Series KK2 1.3MP digital camera, into an affordable and versatile digital microscopy lab, ideal for the home school or classroom setting. Similar to the OM118-M3, the Omano OM-118-M4 also features an additional 100x objective lens and a mechanical slide holder for easier slide handling. The microscope includes four achromatic objectives for viewing cell structures on slides and a 5 year Omano Lifetime limited warranty.

Optics

The Omano OM118-M4 is a high power monocular microscope used for viewing cellular structures on slides. The ocular is angled at an ergonomic 45 degrees and rotates through 360 degrees for flexible viewing. A single WF10x eyepiece combines with four achromatic objectives lenses (4x, 10x, 40x spring, 100x spring oil immersion) for magnification levels of 40x, 100x, 400x.  and 1,000x.

Stage & Focus

The microscope includes a plain stage with mechanical slide holder that enables easy slide movements on the stage. Focusing includes rack and pinion design for durability and coaxial coarse and fine focus controls. We recommend coaxial coarse/fine focus controls since they enable 'eyes down' focusing. In other words, the viewer does not constantly need to look up in order to find the other focus control.

This benefit is important in enhancing a student's experience and therefore in encouraging a more sustained interest in the microscope. Safety features include a rack stop to ensure that the stage does not impact with the objectives and thereby break the slides and a slip clutch control to mitigate the risk of damaging the focus controls through over extension.

Condenser

The condenser is Abbe 1.25 N. A with iris diaphragm for optimal adjustments. Transmitted illumination includes variable intensity.

Camera Summary

The new OptixCam Summit K2 Series KK2-1.3MP digital microscope camera is a terrific way to turn any microscope into a fun and exciting learning tool for kids of all ages. Designed for students and young explorers, this sturdy and affordable little camera will out-perform any other camera in its price range. When used in place of a standard microscope eyepiece, students can now capture vivid images of that sea shell from vacation, the backyard butterfly, a drop of pond water, or Grandpa's coin collection.

It works well with Windows operating systems and the software installs quickly so kids can start capturing images and video. The camera includes a 23.2mm smooth bore ocular mount for mounting on the eyetube or trinocular port of most modern microscopes. We highly recommend this camera for the hobbyist, coin-collector, home-school educator and all general microscopy use.

Software

The included K2View software for Windows provides for excellent color rendering and fast image processing especially when capturing multiple images. Simple, intuitive and easy-to-use controls offer image capture, notation, geometric measuring and storage in JPG, BMP, TIFF, RAW format. The software also includes auto white balance, color enhancement, anti-flicker and other image-enhancing benefits. This software is not MAC-compatible.

Microscope Accessories

Includes dust cover, manual, spare bulb, spare fuse, immersion oil.

Camera Accessories

1.3MP Digital Camera with integrated 23mm adapter, CD-ROM Software disc, USB 2.0 cable.

• 	OM118-M4 Monocular Compound Microscope
  General
  Brand	Omano
  SKU	OM118-M4
  Warranty	5 Year Warranty
  Notes	Better than the OM115 and OM116 and introduced as a more affordable alternative to the OM136, with similar optics. See OM-118-M3 for the more economical version of this compound microscope.
  System
  System Type	Brightfield
  Optical Design	DIN 160mm
  Head
  Head Type	Monocular
  Ocular Angle	45°
  Ocular Tube Diameter	23 mm
  Body
  Nosepiece Orientation	Front-facing
  Nosepiece Style	Quadruple (4)
  Focus Controls	Coarse & Fine, Coaxial
  Focus Mechanism	Rack & Pinion
  Focus Control Location	Dual Ambidextrous
  Stage Type	Fixed with Attached Mechanical Slide Holder
  Stage Features	Slide Holder (spring-loaded)
  Configuration
  Includes Eyepieces?	Yes
  Included Eyepiece Quantity	1
  Included Eyepieces (X)	10X
  Eyepiece Style	WF Widefield (FN 18mm)
  Min Standard Mag	40X
  Max Standard Mag	1000X
  Included Objectives (Qty)	4
  Objective Lens	Achromatic
  Included Objective Types	Brightfield
  Condenser
  Condenser Type	Abbe Brightfield
  Condenser Features	Iris Diaphragm, Rack & Pinion Focus, Swing-out Filter Holder
  Condenser N.A.	1.25 mm
  Illumination
  Illumination Type	Incandescent
  Illumination Style	Transmitted
  Collector Type	Simple
  Transmitted Light Type	Incandescent
  Transmitted Light Specification	110V 20W
  Transmitted Light Control	Variable
  Power Supply	110V Only
  Compatibility
  Imaging Compatibility (with adapters)	23mm
  Accessories
  Included Extras	Spare Bulb, Spare Fuse, Dust Cover

• 	Summit KK2-1.3 1.3MP Windows-Only Color Digital Camera
  General
  Brand	OptixCam
  SKU	OCS-KK2-1.3
  Warranty	1 Year
  Product Weight	2.0000
  Product Display
  New	Yes
  Sensor
  Sensor Type	CMOS
  Sensor Size	1/3 Inch
  Color/Monochrome	Color
  Pixel Pitch	3.6 µm x 3.6 µm
  Sensor Color Depth	8bpp / 24bit RGB
  Scan Mode	Progressive
  Shutter	Electronic, Rolling Shutter
  Camera
  Camera Mount	Ocular Mount
  Resolution	1.3 Megapixel, 1280x1024 pixels
  Camera Output Resolutions	1280 X 1024; 640 X 512; 320 X 256
  FPS @ Max Res	7.5fps @ 1280 x 1024
  FPS @ Min Res	12.5fps @ 800 x 600
  Camera Interface	USB 2.0
  White Balance	Automatic, Manual
  Software Included	OptixCam K2View
  Driver API Compatibility	DirectX, TWAIN
  Power Source	USB Powered
  File Formats	JPEG
  Exposure Control	Automatic, Manual
  Exposure Time	2000ms-0.14Ms
  Operating Temperatures	10°C ~ 50°C
  Operating Humidity	30% ~ 80% RH
  Storage Temperature	-20°C ~ 60°C
  Other Details
  Included Accessories	0.5X 23mm Ocular adapter, Software CD
  Supported Operating Systems	Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+, Linux (kernel 2.6.26+)
  System Requirements	2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
  Certifications	CE, UL
  Cable Length	1.8m (8ft)
  Camera Warranty	1 Year
  Software Support	6 Months
  Compatibility
  Imaging Compatibility (with adapters)	23mm

• 	Pack 1: Book & 5 Prepared Slides	Pack 2: Book, Starter Slide & Stain Kit & 5 Prepared Slides	Pack 3NA: Book, Slide Kit & 15 Prepared Non-Animal Slides	Microbiology Kit with Starter Slide Kit & Book
  General
  Brand	Omano	Omano	Omano	Omano
  SKU	PACK-1	PACK-2	PACK-3NA	OMSK-MICRO
  Notes		$13.50 cost
  Product Weight	1.0000	1.0000	1.0000	1.0000
  Feed - Title		Omano Microbiology Kit with Starter Slide Kit & Book

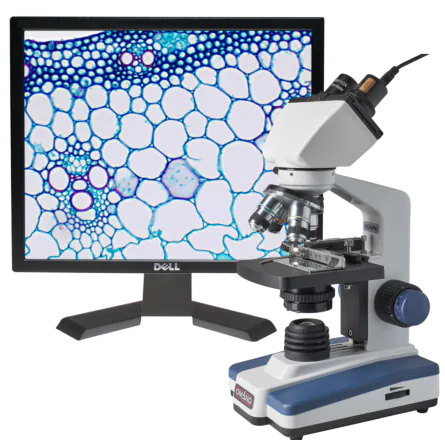

  Feed - Description		THE PERFECT GIFT This year, treat the young scientist in your family to the Omano OM118-B4SL LED microscope with a choice of 4 useful Accessory gift packs. Part of the affordable OM118 series, the OM118-B4S is a binocular compound microscope that includes four objective lenses and a full floating stage for convenient slide handling on the microscope stage. Four levels of magnification, 40x, 100x, 400x and 1,000x are derived from two WF10x eyepieces and 4x, 10x, 40xS and 100xS oil immersion, objectives. Like the monocular sister microscopes (OM118-M3 and M4), this binocular version was introduced in 2010 as a more affordable alternative to our ever popular Omano OM36 series. It has similar optics to the OM36C, and features a rugged, all-metal design and construction.The microscope includes a 5-year Omano limited warranty.OpticsThe Omano OM118-B4SL includes a binocular microscope head that is inclined at an ergonomic 45 degrees. The head rotates through 360 degrees for flexible viewing positions. There are two Wide Field WF10x eyepieces that combine with four parcentered, parfocal achromatic objectives lenses, (4x, 40x spring, 100x spring oil immersion) for magnification levels of 40x, 100x, 400x and 1,000x. The objectives are set in a quadruple nosepiece. The oculars both have diopters that enable individual eye focusing while the head can be adjusted through 55-75mm to adapt for different interpupillary distances.Stage & FocusThe primary difference between this microscope and the Omano OM118-B4 is in the stage. This microscope includes an integrated, double-layered mechanical stage as opposed to a detachable mechanical slide holder on the OM118-B4. In the final analysis, an integrated mechanical stage is the only answer for any serious student or professional microscopist. While a mechanical slide holder is an improvement on a plain stage, a mechanical stage includes full graduated X/Y movement (18mm x 70mm) with coaxial coarse/fine focus controls. Such coaxial controls enable a student to move the slide without looking up from the eyepiece; for regular users this benefit is an indispensable convenience. Focusing includes high quality rack and pinion mechanics for longer life and coaxial focus controls for easier focusing. We recommend coaxial coarse/fine focus controls since they enable 'eyes down' focusing. In other words, the viewer does not constantly need to look up in order to find the other focus control. This benefit is important in enhancing a student's experience and therefore in encouraging a more sustained interest in the microscope. Safety features include a rack stop to ensure that the stage does not impact with the objectives and thereby break the slides and a slip clutch control to mitigate the risk of damaging the focus controls through over extension.Condenser & IlluminationThe condenser is Abbe 1.25 N. A with iris diaphragm for optimal adjustments. Transmitted LED illumination includes variable intensity and is rated for 110V/120V. Wt. and dimensions: 12 Lb. 20"x13"x10".AccessoriesEyecups, Dust Cover, Manual, Spare Bulb, Spare Fuse, Immersion oil.Free Gift - 20X Jewelers Loupe Rocks, bugs, sea shells and antique coins are no longer safe, with this 20X Loupe in the hands of a young explorer. Also handy for hobby work and discovering the intricacy of a small flower or butterfly wing, picking out a sliver, admiring miniature art, viewing photography or helping Mom or Dad read the "fine print" of a document. Accessory PacksIn addition to the regularly included accessories, you can choose from 4 accessory packs below. Each pack includes a range of useful accessories that you will need in order to enjoy your microscope. Pack 1: Book + 5 Prepared Slides Book: Usborne's, The World of the MicroscopeThe book is, in our opinion, a wonderful and colorful introduction to microscopy. Practical, clearly worded and with dozens of illustrations, it provides numerous experiments and activities that range from simple to more complex. While many assume the book is aimed at children, we have found it to be an useful primer for both young and old alike. We highly recommend it. 5 Prepared Slides:Inspired by a permanent exhibition at The Natural History Museum in London, the Beastly Bits range includes three different sets of five slides:
