Omano OM136C 40X-400X Student Compound Microscope with 1.3MP USB 2 Digital Camera

List Price: $467.00

Starting at: $238.00

SKU: OM136-KK2

Availability: In stock

  • The Perfect Digital Microscope Gift Package
  • 1.3 MP with excellent color resolution
  • Windows-only Software
  • Stills & Live Image video
  • Integrated 23mm ocular tube adapter
  • Highly recommended 'Classic' student microscope
  • 3 magnification levels: 40x, 100x, 400x
  • Coaxial coarse/fine focus for easy use
  • Professional 1.25N.A condenser
  • Rechargeable LED or Halogen illumination
Select package options

Click on to learn more about the option * signifies required items

Summit KK2-1.3 1.3MP Windows-Only Color Digital Camera   $59.00
  • $9.00
  • $19.00
  • $24.00
  • $24.00
  • $39.00
  • $45.00

Included in Bundle

Microscope Camera: Summit KK2-1.3 1.3MP Windows-Only Color Digital Camera

Price as configured: $0.00

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

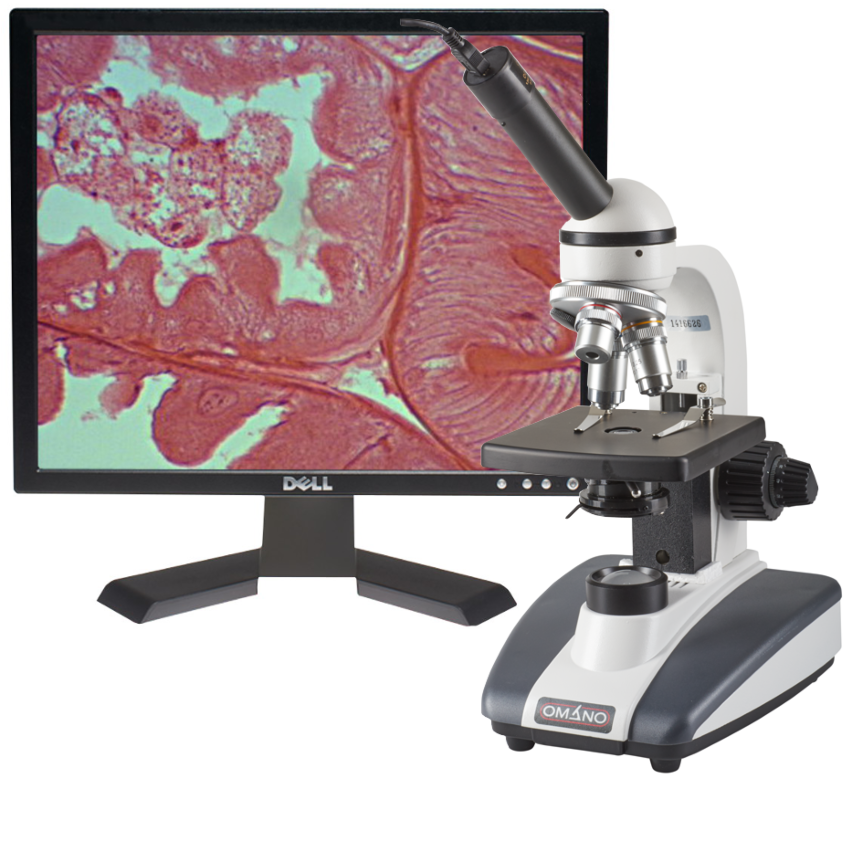

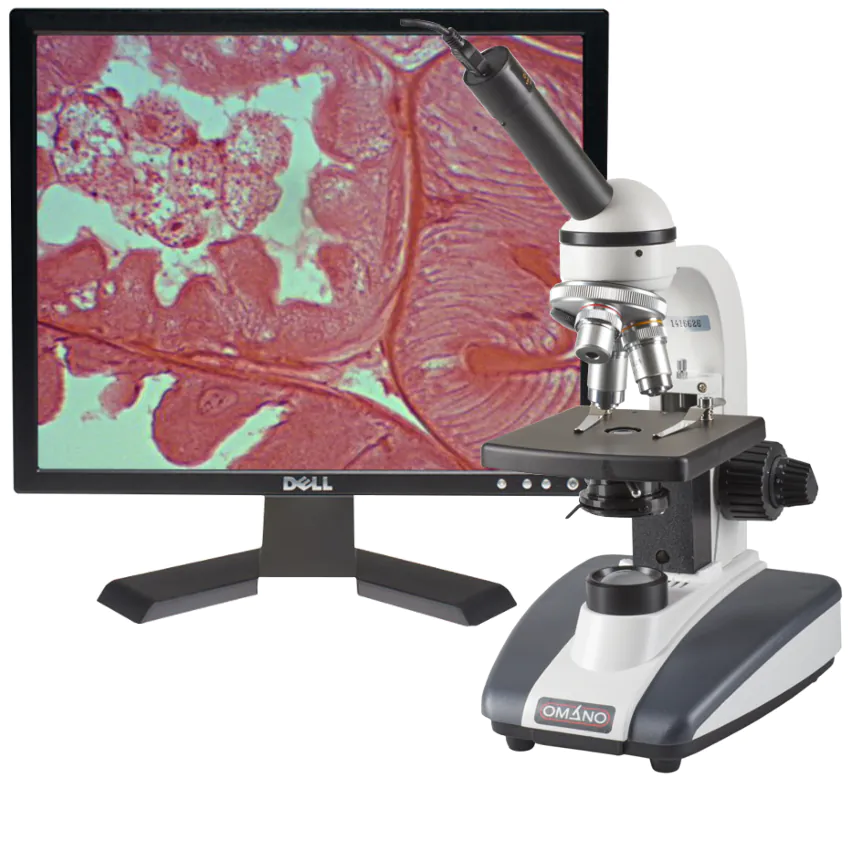

  • OM136C Compound Microscope with 1.3MP Digital Camera Package
  • KK2 1.3MP Digital Camera Package CAMERA
  • KK2 1.3MP Digital Camera Package CAMERA BACK
  • OM136C Compound Microscope with 1.3MP Digital Camera Package angle
  • OM136C Compound Microscope with 1.3MP Digital Camera Package focus
  • OM136C Compound Microscope with 1.3MP Digital Camera Package side
Description

Summary

This special offer combines our most popular Omano OM136 monocular microscope and our easy-to-use Optixcam Summit Series KK2 1.3MP digital camera, into an affordable and versatile digital microscopy lab, ideal for the home school or classroom setting. With better design and construction than the OM118 series, it is a microscope that will last a lifetime and accordingly, carries an Omano lifetime limited warranty. Features include professional halogen or rechargeable LED illumination, three fully coated achromatic objective lenses, and an Abbe 1.25 N.A condenser with iris diaphragm.

Optics

The Omano OM136C-L includes a monocular microscope head that is inclined at an ergonomic 45 degrees. The head rotates through 360 degrees for flexible viewing. A single wide field WF 10x eyepiece combines with three parcentered, coated, 160mm achromatic objective lenses (4x, 10x, 40x Spring), to provide magnification levels of 40x, 100x and 400x. The objectives are set in a quadruple nosepiece so that an optional 100x oil immersion objective can be added for maximum magnification of 1,000x.

Stage & Focus

The OM136CL includes a generous sized, plain stage (125mm x 110mm) with two metal slide clips. An optional full mechanical stage is available at a 35% discount when purchased at the same time as the microscope. We recommend this stage as it makes slide handling significantly easier for both younger children and teenagers alike.

Condenser & Illumination

The condenser is a professional Abbe 1.25 N.A with included iris diaphragm and filter holder for optimal adjustments. Illumination is 6V 20W transmitted halogen or rechargeable LED, both with variable light intensity. The LED version requires one 30 minute charge to last all day long and is a popular microscope for use in the field.

Camera Summary

The new OptixCam Summit K2 Series KK2-1.3MP digital microscope camera is a terrific way to turn any microscope into a fun and exciting learning tool for kids of all ages. Designed for students and young explorers, this sturdy and affordable little camera will out-perform any other camera in its price range. When used in place of a standard microscope eyepiece, students can now capture vivid images of that sea shell from vacation, the backyard butterfly, a drop of pond water, or Grandpa's coin collection.

It works well with Windows operating systems and the software installs quickly so kids can start capturing images and video. The camera includes a 23.2mm smooth bore ocular mount for mounting on the eyetube or trinocular port of most modern microscopes. We highly recommend this camera for the hobbyist, coin-collector, home-school educator and all general microscopy use.

Software

The included K2View software for Windows provides for excellent color rendering and fast image processing especially when capturing multiple images. Simple, intuitive and easy-to-use controls offer image capture, notation, geometric measuring and storage in JPG, BMP, TIFF, RAW format. The software also includes auto white balance, color enhancement, anti-flicker and other image-enhancing benefits. This software is not MAC-compatible.

Microscope Accessories

Includes dust cover, manual.

Camera Accessories

1.3MP Digital Camera with integrated 23mm adapter, CD-ROM Software disc, USB 2.0 cable.

Specifications

Specifications of Component Options

Select a component below to view related specifications.

  • OM136-H Halogen Compound Microscope

    OM136-L LED Compound Student Microscope
    SKU OM136-COM136-L
    Warranty Omano Limited Lifetime WarrantyOmano Limited Lifetime Warranty
    System
    System Type BrightfieldBrightfield, Portable
    Optical Design DIN 160mmDIN 160mm
    Head
    Head Type MonocularMonocular
    Ocular Angle 45°45°
    Ocular Tube Diameter 23 mm23 mm
    Body
    Nosepiece Orientation ReversedReversed
    Nosepiece Style Quadruple (4)Quadruple (4)
    Focus Controls Coarse & Fine, CoaxialCoarse & Fine, Coaxial
    Focus Mechanism Rack & PinionRack & Pinion
    Focus Control Location Dual AmbidextrousDual Ambidextrous
    Stage Type FixedFixed
    Stage Features Mechanical Stage Attachment Available, Slide ClipsMechanical Stage Attachment Available, Slide Clips
    Configuration
    Includes Eyepieces? YesYes
    Included Eyepiece Quantity 11
    Included Eyepieces (X) 10X10X
    Eyepiece Style WF Widefield (FN 18mm)WF Widefield (FN 18mm)
    Min Standard Mag 40X40X
    Max Standard Mag 400X400X
    Included Objectives (Qty) 33
    Objective Lens AchromaticAchromatic
    Included Objective Types BrightfieldBrightfield
    Condenser
    Condenser Type Simple LensSimple Lens
    Condenser Features Iris Diaphragm, Swing-out Filter HolderIris Diaphragm, Swing-out Filter Holder
    Condenser N.A. 1.25 mm1.25 mm
    Illumination
    Illumination Type HalogenLED
    Illumination Style TransmittedTransmitted
    Collector Type SimpleSimple
    Transmitted Light Type HalogenLED
    Transmitted Light Specification 6V 20W
    Transmitted Light Control VariableVariable
    Power Supply 85V -265VAC Auto-SwitchingRechargeable Batteries (AA) or 120V AC - Plug-in Adapter Included
    Compatibility
    Imaging Compatibility (with adapters) 23mm 23mm
    Accessories
    Included Extras Dust Cover, Spare Bulb, Spare FuseDust Cover

  • Summit KK2-1.3 1.3MP Windows-Only Color Digital Camera
    SKU OCS-KK2-1.3
    Warranty 1 Year
    Product Weight 2.0000
    Product Display
    New Yes
    Sensor
    Sensor Type CMOS
    Sensor Size 1/3 Inch
    Color/Monochrome Color
    Pixel Pitch 3.6 µm x 3.6 µm
    Sensor Color Depth 8bpp / 24bit RGB
    Scan Mode Progressive
    Shutter Electronic, Rolling Shutter
    Camera
    Camera Mount Ocular Mount
    Resolution 1.3 Megapixel, 1280x1024 pixels
    Camera Output Resolutions 1280 X 1024; 640 X 512; 320 X 256
    FPS @ Max Res 7.5fps @ 1280 x 1024
    FPS @ Min Res 12.5fps @ 800 x 600
    Camera Interface USB 2.0
    White Balance Automatic, Manual
    Software Included OptixCam K2View
    Driver API Compatibility DirectX, TWAIN
    Power Source USB Powered
    File Formats JPEG
    Exposure Control Automatic, Manual
    Exposure Time 2000ms-0.14Ms
    Operating Temperatures 10°C ~ 50°C
    Operating Humidity 30% ~ 80% RH
    Storage Temperature -20°C ~ 60°C
    Other Details
    Included Accessories 0.5X 23mm Ocular adapter, Software CD
    Supported Operating Systems Windows 8, Windows 7, Windows Vista, Windows XP SP3, Mac OSX 10.7+, Linux (kernel 2.6.26+)
    System Requirements 2GB RAM Recommended, 2Ghz+ CPU Recommended, At least P4-class CPU, Intel Mac Required for OSX Support, USB 2.0 High Speed Port
    Certifications CE, UL
    Cable Length 1.8m (8ft)
    Camera Warranty 1 Year
    Software Support 6 Months
    Compatibility
    Imaging Compatibility (with adapters) 23mm

  • Pack 1: Book & 5 Prepared Slides

    Pack 2: Book, Starter Slide & Stain Kit & 5 Prepared Slides

    Microbiology Kit with Starter Slide Kit & Book

    Pack 3NA: Book, Slide Kit & 15 Prepared Non-Animal Slides
    SKU PACK-1PACK-2OMSK-MICROPACK-3NA
    Notes  $13.50 cost
    Product Weight 1.00001.00001.00001.0000
    Product Display
    New  Yes

  • Mechanical Slide Holder

    Achromatic Objective, 100xs Oil Immersion
    SKU OMXY-136OMOBJ-ACH-100X
    Warranty  Omano Limited Lifetime Warranty
    Notes Fits OM136C Series, OMTM85 Series. NOTE: Attachment may obstruct free rotation of objective lens turret. Function is not impaired, but please take care that you do not damage the lenses.
    Compatibility
    Compatible With OM136C*, OMTM85*
    Objectives
    Objective Lens  Achromatic
    Objective Lens Power  100x
Product Manuals
