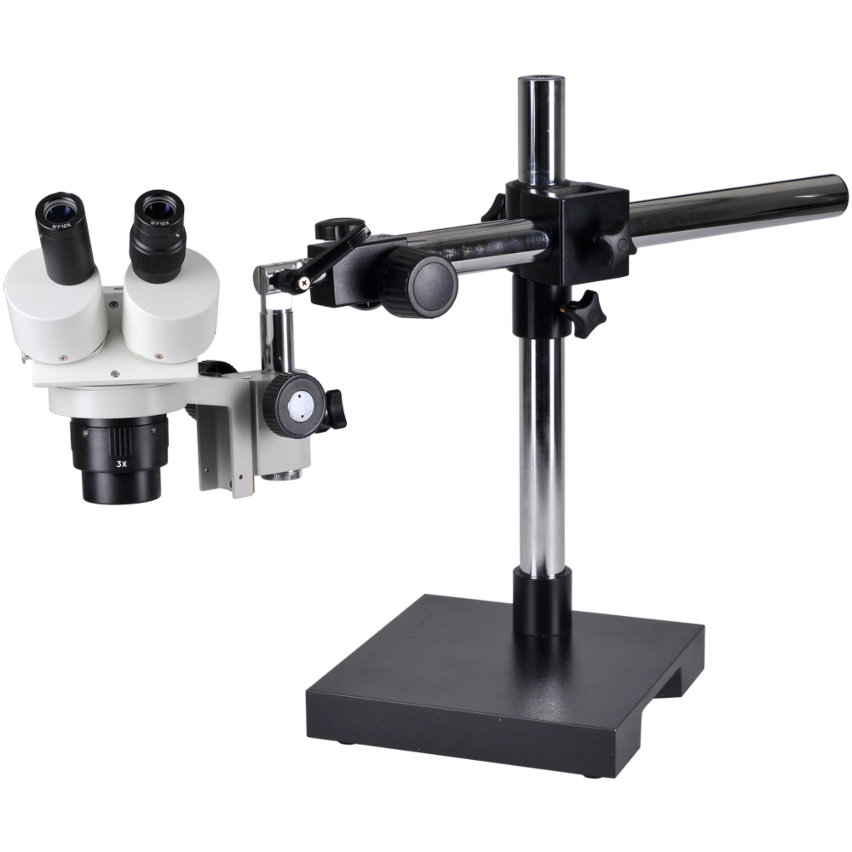

The Omano OM1030-V10 is another economical addition to our dual-power Omano boom microscope lineup. Designed for industrial inspection applications, it is available in either binocular or trinocular configuration and offers 10x/30x magnification. The V10 is a strong, single arm boom stand that has been a proven workhorse for over ten years. Ring illumination is included. Lifetime Limited Warranty.
The Omano OM1030 is our most economical stereo microscope body and has proved popular over ten years. It includes 1X/3X dual power objectives and WF10X eyepieces for total magnification of 10X/30X. Each eyepiece includes a diopter for individual eye focusing and the interpupillary adjustment range is 55-75mm. Rubber eyecups are included.
The head is available in both binocular and trinocular formats and a 23mm smooth camera tube is included with the trinocular version. The effective working distance is 3.75" without an auxiliary barlow lens. Optional barlow lenses are available in 0.3x, 0.5x, 0.75x, 1.0x and 2.0x powers. Lifetime Limited Warranty.
Focus & illumination
Rack and pinion focus includes dual right and left hand controls for convenience. An 80 LED ring light for shadow free illumination is included in the price and can be upgraded to additional LED light when adding the microscope to your shopping cart.
The V10 is an upgrade over the JW11 stand. It features a useful 4", adjustable extension bar at the tip of the boom arm. When using this extension with eyes down, the user can easily adjust the horizontal extension of the boom. In other words, there is no need to release the entire bar in order to make small adjustments. The V10 boom stand is also, heavy-duty weighing 48lbs. The pole is 20" tall with 14.5" usable height.
The horizontal arm extends 26" including the microscope head. A 76mm focus block is included. As with most Omano boom stands, a hanging bar is included that enables angled viewing positions. The hanging bar bracket is spring-loaded so that the lever can be moved without releasing tension on the microscope head.
Note: The NH1080 and CX3 require the OCS-SK2-CA037X C-mount adapter to connect to this Omano microscope.
Eyecups, dust cover, manual
Omano Stereo Boom Stand Comparison
