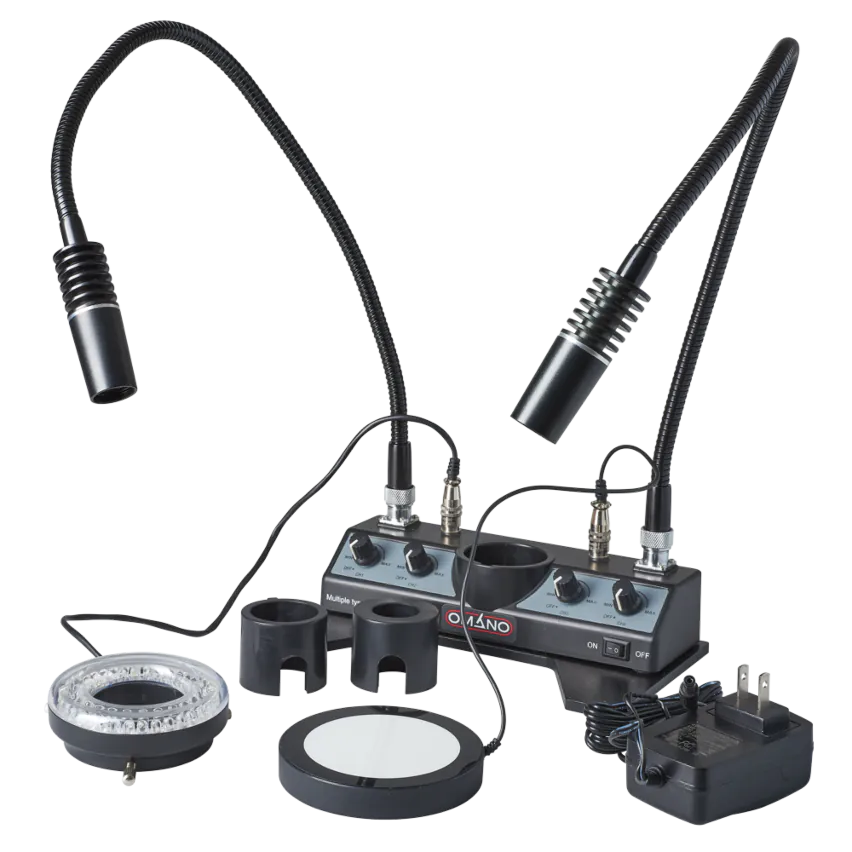

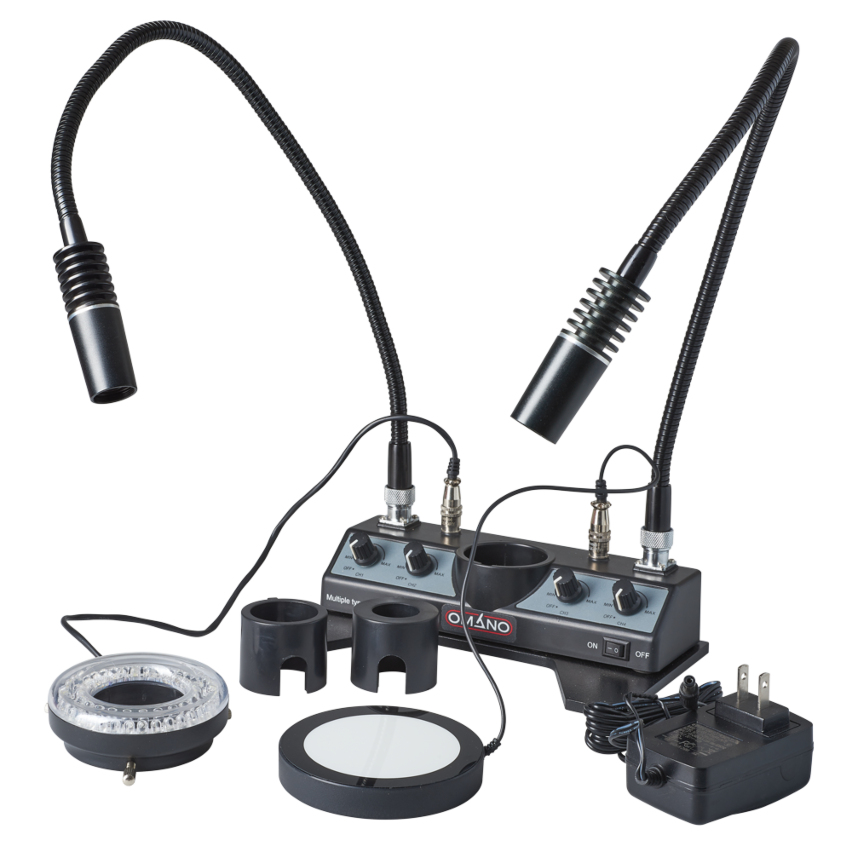

Omano OMLED-DPRL LED Illuminator with Dual Pipes, Ring and Stage Lights

List Price: $299.00

Our Price: $169.00

SKU: OMLED-DPRL

Availability: In stock

  • NEW! Powerful 6500K LED Illumination System
  • Dual 3W Gooseneck spotlights for optimum side illumination
  • Single 4W, 60 LED ring-light for shadow-free flood illumination
  • Single 2W illuminated stage plate for transmitted lighting
  • Four independent, variable-intensity power switches
  • Power console fits posts up to 44mm in diameter
  • Microscope NOT Included
  • 1-year warranty

Not sure if this is the item you’re looking for? Ask our friendly experts!

(877) 409-3556

Live Chat

  • OMLED-DPRL Illumination System 1
  • OMLED-DPRL Illumination System 3
  • OMLED-DPRL Illumination System2
  • OMLED-DPRL Illumination System 4
  • OMLED-DPRL Illumination System 5
Description

Summary

The new Omano MLED-DPRL LED illuminator provides cool, 6500K natural color light for a wide variety of incident and transmitted lighting requirements. Operators can now select any combination of gooseneck spotlights, a standard ring light, or an innovative transmitted light source, all independently controlled from one convenient console. LED technology also offers reduced power usage, cooler operating temperatures and significantly greater lifespan compared to halogen lamps.

3W Dual Gooseneck Spotlights

Two powerful 3W LED gooseneck spotlights with variable-intensity control offer excellent flexibility in applications requiring high surface contrast illumination. The long, 22.5 inch arms can be angled low and just off the surface for stronger shading and contrast, or directed straight down for more uniform spot illumination.

4W Ring Light

A standard 4W, 60 LED ring illuminator provides bright, uniform and variable-intensity light for convenient observation of printed circuit board repairs, electrical component assembly work and other standard stereo applications. The ring accepts openings up to 60 mm in diameter. 2W Stage Plate Transmitted illumination can be very useful for inspecting delicate silicon wafers, fiber optics or any other transparent material. The 2W LED, variable-intensity stage plate is ideally suited to this role, offering a large, flat surface 3.75 inches in diameter.

Mounting Options

The Omano OMLED-DPRL LED illuminator includes an 8.25 inch by 5 inch base mounting plate for stand-alone operation on any workbench. Alternatively, the entire console can be mounted on any post up to 44mm in diameter providing immediate access to all necessary control functions. Includes 23mm & 34mm adapter collars to fit smaller diameter posts.

Contents:

4-port control module, base mounting plate, 2 gooseneck LED lamps, ring light, illuminated stage plate, 2 pillar adapter collars, AC power adapter. Shipping size 12x12x7 inches, 5 Lbs.
Specifications

OMLED-DPRL LED Illuminator with Dual Pipes, Ring and Stage Lights
General
SKU OMLED-DPRL
Short Description
  • NEW! Powerful 6500K LED Illumination System
  • Dual 3W Gooseneck spotlights for optimum side illumination
  • Single 4W, 60 LED ring-light for shadow-free flood illumination
  • Single 2W illuminated stage plate for transmitted lighting
  • Four independent, variable-intensity power switches
  • Power console fits posts up to 44mm in diameter
  • Microscope NOT Included
  • 1-year warranty
Warranty 1 year
Light Specs
Illumination Type LED
Ring Light Type LED
Ring Light Power 4W
Ring Light Control Variable
