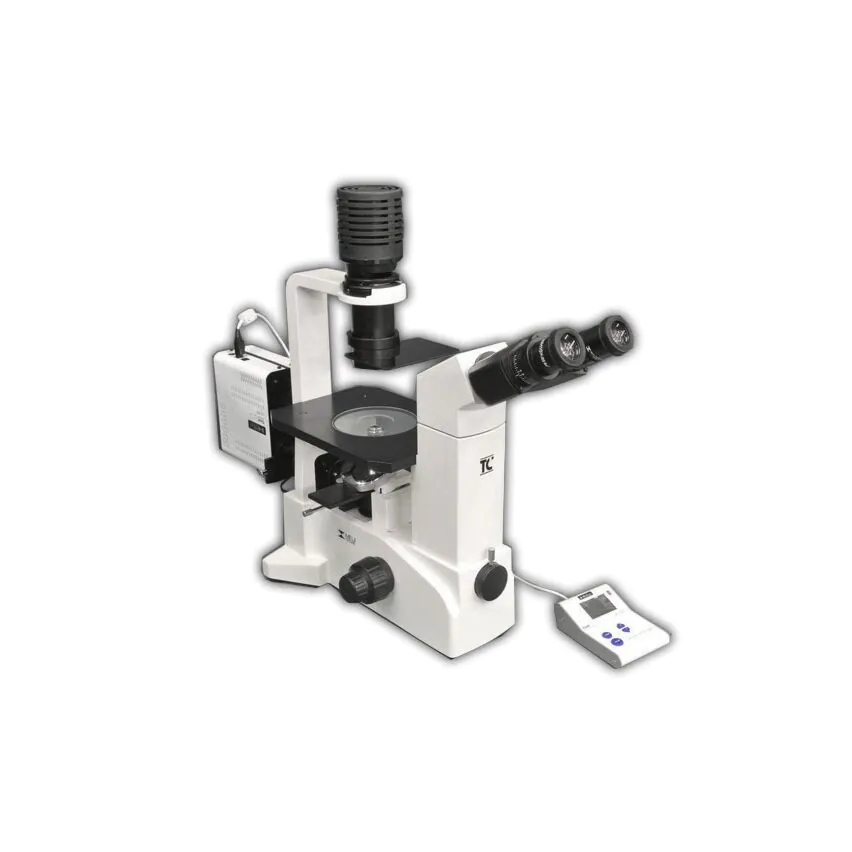

Meiji Techno TC-5500CW 100X, 200X Binocular LED/Halogen Inverted Epi-Fluorescence Biological Microscope
- Optimized for Live Cell Imaging: Designed for the efficient examination of tissue cultures, microbes, and live specimens in petri dishes and culture bottles with an excellent performance-to-cost ratio.
- Advanced LED Fluorescence: Equipped with a 3-channel LED illumination kit configured for DAPI, FITC, TRITC, and Cy5, allowing for instant on/off control and minimized sample photobleaching.
- Precision Multi-Stain Control: Features an independent 3-channel control pod to balance excitation levels across multiple stains simultaneously without the need for frequent filter cube changes.
- Seamless Documentation: Includes an integrated front-mounted camera port compatible with CCD, CMOS, and 35mm adapters, supported by popular imaging software for streamlined data capture.
TC-5500CW & TC-5600CW Inverted Biological Epi-Fluorescence Series
Advanced LED Fluorescence Imaging for Cellular Research and Clinical Diagnostics
Next-Generation Epi-Fluorescence Imaging
The Meiji Techno TC-5500CW & TC-5600CW Series represents a pinnacle in inverted biological microscopy, specifically designed for high-demand applications in oncology, immunology, genetics, and cell cytology. By integrating the award-winning CoolLED pE-300 Series, these microscopes eliminate the frustrations of traditional mercury lamps, providing a stable, repeatable, and mercury-free light source for your most critical research.
The CoolLED pE-300 Advantage
Traditional gas-discharge lamps (Mercury, Xenon) lose intensity over time and require frequent, costly replacements. The integrated LED system provides:
- Broad Spectral Coverage: Optimized for everyday fluorophores including DAPI, FITC, TRITC, Cy3, TxRed, and Cy5.
- Precise Control: Adjust intensity in 1% steps (0-100%) via a manual control pod—no ND filters required.
- Instant Performance: Instant On/Off functionality eliminates warm-up/cool-down periods and the need for mechanical shutters.
- Sustainability: 80% less power consumption with a 25,000-hour lifetime and zero mercury disposal issues.
Technical Features & Specifications
Optics & Ergonomics
- Seidentopf Heads: Choose between a 30° Binocular or 45° Trinocular head for ergonomic viewing.
- Fluorescence Module: Six-position turret pre-configured with high-performance Chroma Filters (Basic Blue & Basic Green sets).
- Objectives: Equipped with newly designed Semi-Apo Plan Fluorescence and LWD Planachromat F10X/F20X objectives.
- Stability: Compact wedge-shaped cast aluminum alloy frame offers exceptional stability with a space-saving footprint.
Advanced Mechanical Design
- Large Format Stage: 180mm x 245mm stage with a replaceable glass insert for easy objective identification.
- Inverted Configuration: Ideal for viewing live cell cultures in flasks, Petri dishes, and multi-well plates.
- Imaging Ready: Front-mounted ports facilitate the attachment of CCD, CMOS, or SLR cameras.
Optimized for Your Research
Whether your lab uses single-band (SB) filter sets or multi-band (MB) sets, the TC-5000 Series is configurable to your specific excitation needs:
| Excitation Range | Typical Fluorophores | Configuration Option |
|---|---|---|
| UV / Violet | DAPI, Hoechst, Calcofluor White | 365nm (SB) or 400nm (MB) |
| Blue | FITC, GFP, Auramine, Alexa 488 | Standard pE-300 Blue |
| Green / Yellow | TRITC, Cy3, TxRed, mCherry, RFP | Standard pE-300 GYR |
Energy Consumption Data
- Standby: Max 2W
- Full White Intensity: 46W
- Universal Power: Integrated auto-voltage sensing (100-240V AC)
Ready to Experience Reliable Fluorescence?
Stop worrying about bulb alignments and fading intensity. Upgrade to the Meiji Techno TC-5500CW Series with LED technology.
Contact our laboratory specialists today at 1-(800) 832-0060 for a custom configuration.
| Brand | Meiji Techno |
|---|---|
| Recommended For | 0 |
| Trinocular Tube Focusable? | No |
| Parfocal | No |
| Focus Controls Graduated? | No |
| Stage Range Graduated? | No |
| Includes Eyepieces? | No |
| Includes Eyecups? | No |
| Included Objectives Parfocal Adjustable? | No |
| Reticles Available? | No |
| Case Included? | No |
